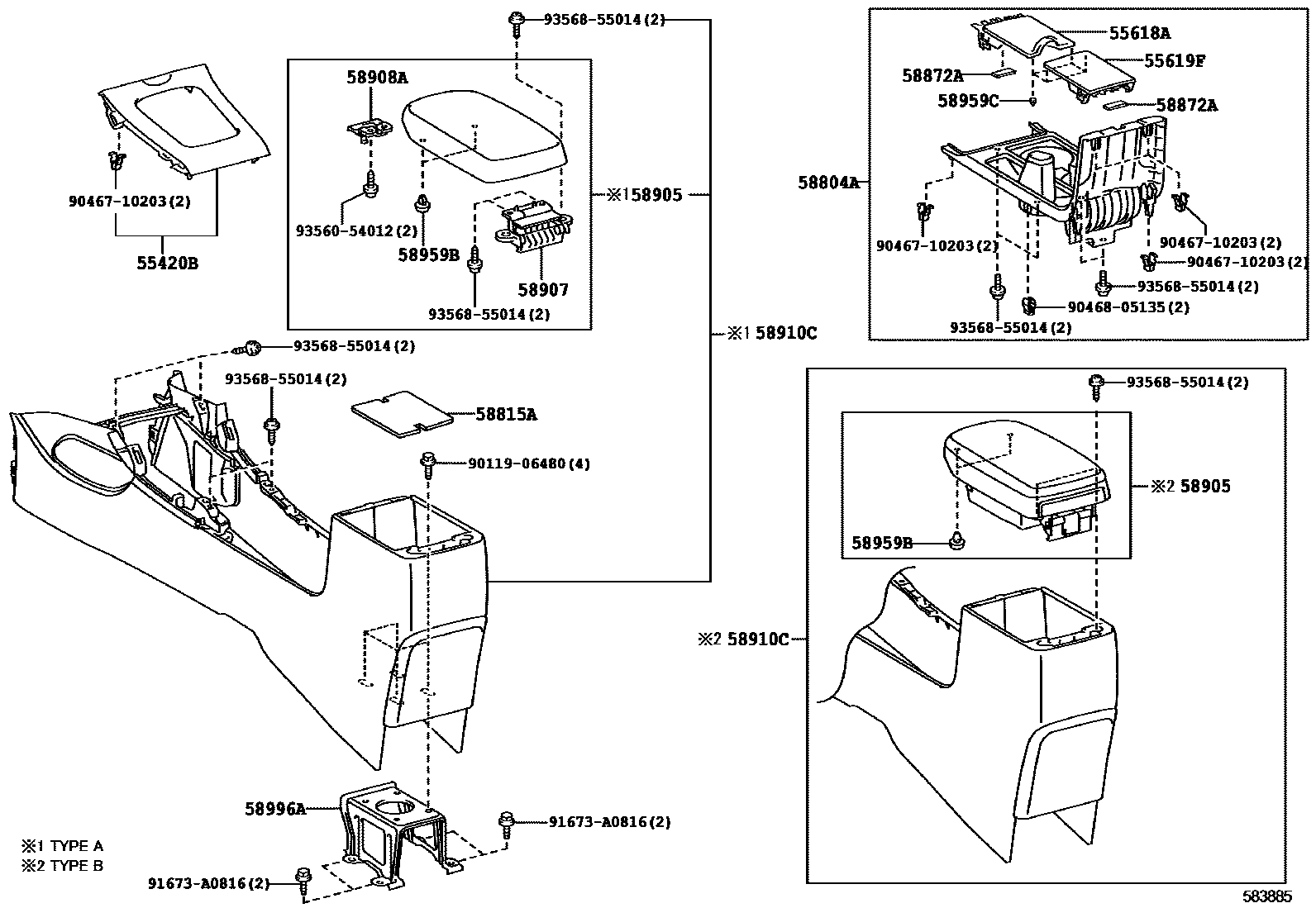

Toyota COROLLA/ALTIS — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-02460iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

main55420-02470iZZE142..MA200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN)

main55420-02480iZRE143,ZZE142..VN200801-201010

main55420-02490iCE140,NZE140..20D,GLI,XLI200808-201104

main55420-02500iCE140..20DSA200808-201104

main55420-02510iZZE142..18J..IND200808-201105

main55420-02520iNDE140,ZZE142..(18G,18V,E,G)..IND200808-201105

main55420-02550iZZE14#..4FC..(18J,GLI,XLI)200712-201007

main55420-02620iZRE143..TAIW201007-201310

main55420-02630iZRE143..CVFC..(IDN,MA,PHL,TH,VN);ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN)201008

main55420-02640iZRE141,142..ATM..(16J,18G)..TH201008-201211

main55420-02650iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN201104

main55420-02660iCE140,ZRE141..20DSA,N201104

main55420-02670iNDE140..E201105-201312

GRADE MARK : J

main55420-02680iNDE140,ZRE142..(18G,18V,E,G)..IND201105-201312

main55420-02450iZRE141,142..GCC201007-201310

INSTRUMENT PANEL CENTER CLUSTER-SILVER & WOOD

main55420-02700supersedes 55420-02710iZRE142..18E..TAIW201210-201310

GRADE MARK : 2.0Z

55618AHOLDER, CONSOLE BOX CUP

main55618-02110iZZE141..(16E,16G)..PHL201007-201008

main55618-02110-B0iZZE141..TAIW200712-200811

GRAY,TRIM11

main55618-02110-B1iZZE142..(18G,18V)..TAIW200712-200811

DK.GRAY,TRIM12

main55618-02110-E0iZZE14#..(16J,18G,18V)..TAIW200712-200811

GREGE,TRIM4#

main55618-02120-B0iZRE141,ZZE141..16J,LIMO201008-201311

GRAY,TRIM1#

main55618-02120-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main55618-02120-E0iZRE14#,ZZE141..(16E,16G,18E,18EL,18G,18J,20G,20V)..(IDN,MA,TH)201008-201311

GREGE,TRIM4#

main55618-02130-E0iZZE142..PKN200808

GREGE,TRIM4#

main55618-02170-E0iNDE140,ZZE142..IND200808-201105

GREGE,TRIM4#

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-02120iZZE141..(16E,16G)..PHL201007-201008

main55619-02120-B0iZZE141..TAIW200712-200811

GRAY,TRIM11

main55619-02120-B1iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main55619-02120-E0iZZE14#..(16J,18G,18V)..TAIW200712-200811

GREGE,TRIM4#

main55619-02130-B0iZRE141,ZZE141..16J,LIMO201008-201311

GRAY,TRIM1#

main55619-02130-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main55619-02130-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)200801-201008

GREGE,TRIM4#

main55619-02140-E0iCE140,NZE140200808-201104

GREGE,TRIM4#

main55619-02180-E0iNDE140,ZZE142..IND200808-201105

GREGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02090iZZE141..(16E,16G)..PHL201007-201008

main58804-02090-B0iZZE141..TAIW200712-200811

GRAY,TRIM11

main58804-02090-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main58804-02090-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

GREGE,TRIM4#

main58804-02090-E1iZRE143..LHD..CVFC;ZRE141,142..LHD..(16V,18E,18G,GLI,XLI)201007-201407

GREGE,TRIM4#

main58804-02100-B0iZRE141,ZZE141..16J,LIMO201008-201311

GRAY,TRIM1#

main58804-02100-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main58804-02100-E0iZZE14#..(16E,18V)..(IDN,TH)200801-200812

GREGE,TRIM4#

main58804-02100-E1iZRE14#,ZZE141..(16E,16G,18E,18EL,18G,18J,20G,20V)..(IDN,MA,TH)201008-201311

GREGE,TRIM4#

main58804-02110-E0iZZE142..PKN200808

GREGE,TRIM4#

main58804-02110-E1iCE140,NZE140,ZRE141..PKN201104-201406

GREGE,TRIM4#

main58804-02150-E0iNDE140,ZZE142..IND200808-201105

GREGE,TRIM4#

main58804-02150-E1iNDE140,ZRE142..IND201105-201312

GREGE,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-02140iZZE14#..(16J,18G,18V)..TAIW200712-200811

main58815-02150iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main58815-02160iCE140,NZE140200808-201104

main58815-02170iNDE140,ZRE142..IND201105-201312

58872ACUSHION, CONSOLE BOX, NO.2

main58872-02040×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

main58872-02050×2iZRE141,142..ATM..(16J,18G)..TH201008-201211

main58872-02080×2iNDE140,ZZE142..IND200808-201105

main58872-12040×2iCE140,NZE140,ZRE141..PKN201104

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02290-B0iZZE141..TAIW200712-200811

GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58905-02490-B0iZZE142..TAIW200712-200811

GRAY,TRIM11,TYPE B:REFER ILLUST.

main58905-02490-B2iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58905-02490-E0iZZE142..(18G,18V)..TAIW200712-200811

GREGE,TRIM4#,TYPE B:REFER ILLUST.

main58905-02500-B0iZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)201008-201311

GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58905-02500-E0iZZE142..18J..IDN200801-201008

GREGE,TRIM4#,TYPE A:REFER ILLUST.

main58905-02520-B1iZRE141..16G..PHL201008-201311

GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58905-02520-E3supersedes 58905-02530-E0iZZE142..5F..VN200801-201010

GREGE,TRIM4#,TYPE B:REFER ILLUST.

main58905-02530-B1iZRE142..18E..TH201008-201211

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58905-02530-E0supersedes 58905-02520-E3iZRE142..(18E,18G)..HTWCF;ZRE143..CVFC..(IDN,MA,PHL,TH,VN);ZRE142..CVFC..18G..(MA,TH,VN)..HTWC;NDE140,ZRE141,142..RHD..(16G,18V,G)201008-201407

GREGE,TRIM4#,TYPE B:REFER ILLUST.

main58905-02670-B1supersedes 58905-02290-B0iZRE141,142..GCC201007-201310

CONSOLE BOX-WITH(LID(2STEP) & FABRIC),GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58905-02670-E1supersedes 58905-02290-E0iZZE14#..GCC200901-201007

CONSOLE BOX-WITH(LID & FABRIC),GREGE,TRIM4#,TYPE B:REFER ILLUST.

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-02110iZZE141..TAIW200712-200811

main58907-02120iZZE141..16E..PHL;ZZE14#..(16J,18J,LIMO)..(IDN,TH)200801-201008

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZRE141..6F..TH;ZRE141..(16E,D,XLI)..(GCC,PHL,PKN);CE140,NZE140,ZRE142,ZZE141..18J,20D,GLI,LIMO,XLI201007

58910CBOX ASSY, CONSOLE, REAR

main58910-02130-B2iZZE142..18G..TAIW200712-200811

Z AEROTOURER,DK.GRAY,TRIM12,TYPE B:REFER ILLUST.

main58910-02130-B3iZZE142..18G..TAIW200712-200811

Z AEROTOURER,GRAY,TRIM11,TYPE B:REFER ILLUST.

main58910-02130-E1iZRE143..20G..TAIW200712-201007

GREGE,TRIM4#,TYPE B:REFER ILLUST.

main58910-02140-B0iZZE14#..MA;ZZE141..(16J,LIMO)..TH200801-201008

GRAY,TRIM1#

main58910-02140-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main58910-02140-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)200801-201008

GREGE,TRIM4#

main58910-02150-E0iCE140,NZE140,ZRE141..PKN201104-201406

GREGE,TRIM4#

main58910-02180-E0iNDE140,ZRE142..IND201105-201312

GREGE,TRIM4#

main58910-02190-B1iZRE142..18J..TAIW201007-201310

GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58910-02200-B0iZZE141..(16E,16G)..PHL200802-201008

GRAY,TRIM1#

main58910-02200-E0iZRE143..LHD..CVFC..20V;ZRE141,142..LHD..(16V,18G)201008-201407

GREGE,TRIM4#

main58910-02210-B1iZZE142..(18E,18J,18V)..TAIW200712-200811

GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58910-02210-B2iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58910-02210-E1iZZE142..18V..TAIW200712-200811

GREGE,TRIM4#,TYPE B:REFER ILLUST.

main58910-02230-E0iZZE142..GLI200901-201007

CONSOLE BOX-WITH(LID & LEATHER),GREGE,TRIM4#,TYPE B:REFER ILLUST.

main58910-02240-B0supersedes 58910-02220-B0iZRE141,142..GCC201007-201310

CONSOLE BOX-WITH(LID(2STEP) & FABRIC),GRAY,TRIM1#,TYPE B:REFER ILLUST.

main58910-02240-E0supersedes 58910-02220-E0iZZE14#..GCC200901-201007

CONSOLE BOX-WITH(LID & FABRIC),GREGE,TRIM4#,TYPE B:REFER ILLUST.

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main90541-04079×2iZRE142..18G..TH201008-201211

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-12040×4iCE140,NZE140200712-201104

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02080iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main58996-02090iZRE143,ZZE142..VN200801-201010

9011906480

main90119-06480

9046710203

main90467-10203

9046805135

main90468-05135

91673A0816

main91673-A0816

9356054012

main93560-54012

9356855014

main93568-55014

19 parts on this diagram · 4 diagrams in section
