Toyota COROLLA/ALTIS — CLUTCH & RELEASE FORK

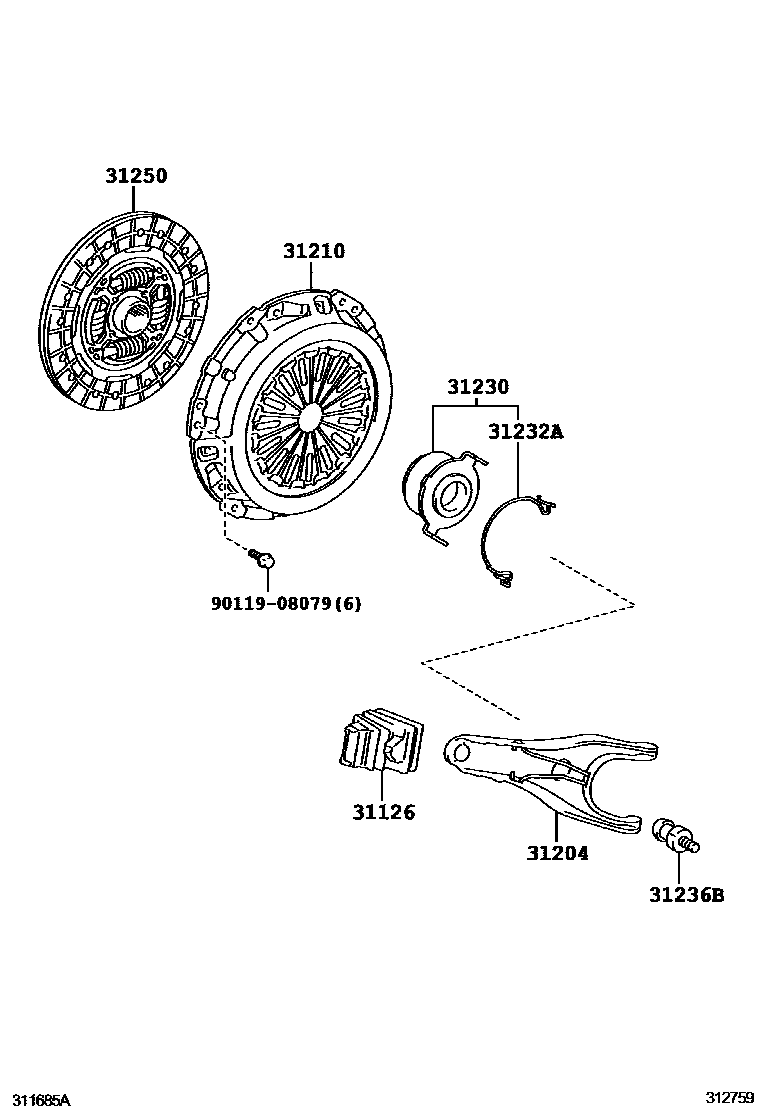

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i201310-201409

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i201310-201409

main31204-52010i201407-201707

31210COVER ASSY, CLUTCH

main31210-12310i201310-201409

main31210-12330i201310-201511

main31210-12340i201312-201610

main31210-42030i201310-201511

main31210-52100i201405-201702

main31210-52190i201407-201707

31230BEARING ASSY, CLUTCH RELEASE

main31230-12181i201707-201911

main31230-12191i201310-201409

31232ACLIP, RELEASE BEARING HUB

main31232-12070i201310-201409

main31232-12080i201707-201911

31236BSUPPORT, RELEASE FORK

main31236-12020i201310-201707

31250DISC ASSY, CLUTCH

main31250-12393i201707-201911

main31250-12600i201310-201610

main31250-12601i202203

main31250-33051i201310-201511

main31250-52050i201310-201409

main31250-52131i201405-201702

main31250-52132i201707-201802

main31250-52133i201803-201906

9011908079

main90119-08079

8 parts on this diagram · 4 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA/ALTIS

This section contains 11 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA/ALTIS. Key components include: CLUTCH RELEASE CYLINDER, BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE.
