Toyota COROLLA/ALTIS — ARMREST & VISOR

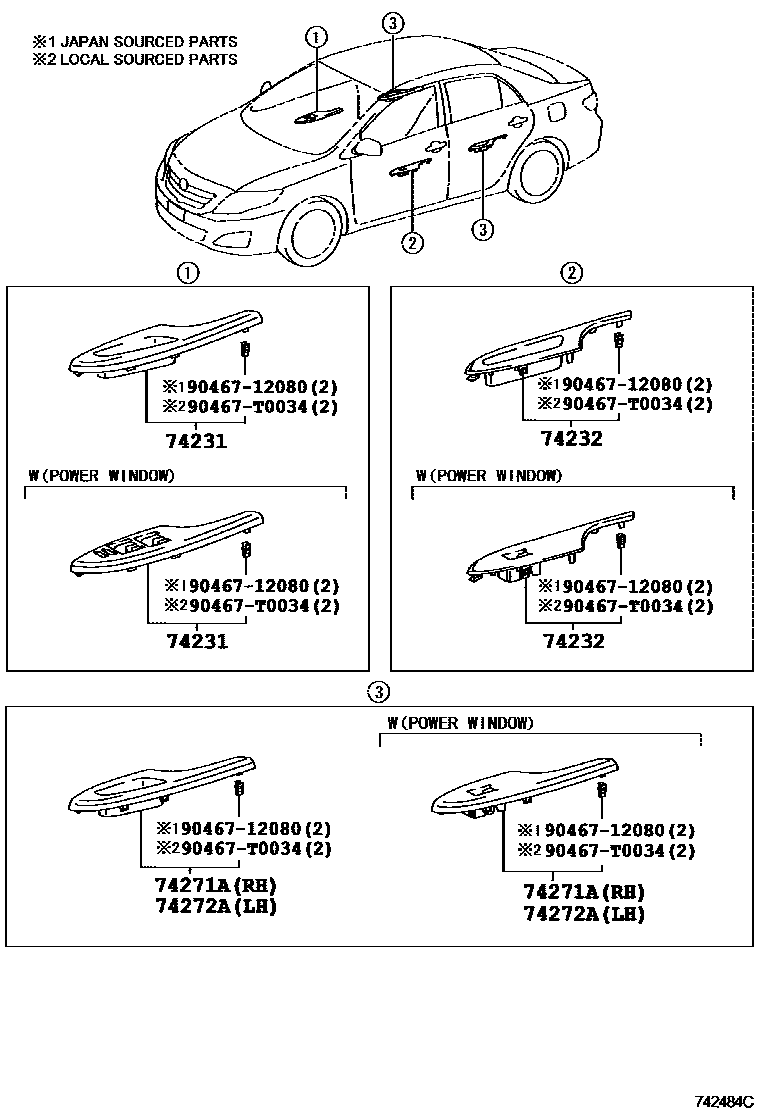

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02790-B0i200808-201105
SILVER,TRIM4#
main74231-02800-E0i200808-201105
BROWN,TRIM4#
main74231-02810-B0i200808-201104
SILVER,TRIM4#
main74231-02820-B0i200808-201104
SILVER,TRIM4#
main74231-02830-E0i200808-201104
BROWN,TRIM4#
main74231-02840-B0i200811-200912
SILVER,TRIM1#
main74231-02850-B0i200801-200812
GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),SILVER,TRIM4#; SILVER,TRIM4#; SINGAPORE SPEC,SILVER,TRIM4#
main74231-02860-E0i200801-201008
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74231-02870-B0i200802-201008
SILVER,TRIM1#
main74231-02880-E0i200802-201010
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74231-02A00-E0i200712-200811
BROWN,TRIM1#,4#
main74231-02A30-B0supersedes 74231-02A40-B1i201007-201310
GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1#
main74231-02A30-B2i200811-201007
DK.GRAY,TRIM12
main74231-02A30-E0supersedes 74231-02A40-E0i200712-201007
GREGE,TRIM4#
main74231-02B70-B0i201008-201311
GRADE MARK : 1.6E OR 1.8E,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM1#; ORNAMENT SILVER,TRIM1#,4#; ORNAMENT SILVER,TRIM4#
main74231-02B80-E0i201008-201311
DARK BROWN,TRIM1#,4#; DARK BROWN,TRIM4#
main74231-02B90-B0i201008-201311
ORNAMENT SILVER,TRIM1#
main74231-02C00-E0i201008-201407
DARK BROWN,TRIM4#
main74231-02C20-E0i201007-201310
DARK BROWN,TRIM1#,4#
main74231-02C40-B0i201105-201312
GRADE MARK : J,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM4#
main74231-02C50-E0i201105-201312
DARK BROWN,TRIM4#
main74231-02C60-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74231-02C70-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74231-02C80-E0i201104-201406
DARK BROWN,TRIM4#
main74231-02890-B0i200912-201007
GRADE MARK-Z,SILVER,TRIM1#,4#
main74231-02C10-B0supersedes 74231-02F50-C0i201210-201310
GRADE MARK : 2.0Z,ORNAMENT SILVER,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02520-B0supersedes 74232-02A80-B1i201007-201310
GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1#
main74232-02520-B2i200811-201007
DK.GRAY,TRIM12
main74232-02520-E0supersedes 74232-02A80-E0i200712-201007
GREGE,TRIM4#
main74232-02800-B0i200808-201105
SILVER,TRIM4#
main74232-02810-E0i200808-201105
BROWN,TRIM4#
main74232-02820-B0i200808-201104
SILVER,TRIM4#
main74232-02830-B0i200808-201104
SILVER,TRIM4#
main74232-02840-E0i200808
BROWN,TRIM4#
main74232-02850-B0i200811-200912
SILVER,TRIM1#
main74232-02860-B0i200801-200812
GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),SILVER,TRIM4#; SILVER,TRIM4#; SINGAPORE SPEC,SILVER,TRIM4#
main74232-02870-E0i200801-201008
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74232-02880-B0i200802-201008
SILVER,TRIM1#
main74232-02890-E0i200802-201010
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74232-02A10-E0i200712-201007
BROWN,TRIM1#,4#
main74232-02C20-B0i201008-201311
GRADE MARK : 1.6E OR 1.8E,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM1#; ORNAMENT SILVER,TRIM1#,4#; ORNAMENT SILVER,TRIM4#
main74232-02C30-E0i201008-201311
DARK BROWN,TRIM1#,4#; DARK BROWN,TRIM4#
main74232-02C40-B0i201008-201311
ORNAMENT SILVER,TRIM1#
main74232-02C50-E0i201008-201407
DARK BROWN,TRIM4#
main74232-02C70-E0i201007-201310
DARK BROWN,TRIM1#,4#
main74232-02C90-B0i201105-201312
GRADE MARK : J,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM4#
main74232-02D00-E0i201105-201312
DARK BROWN,TRIM4#
main74232-02D10-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74232-02D20-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74232-02D30-E0i201104-201406
DARK BROWN,TRIM4#
main74232-02A00-B0i200811-201007
Z AEROTOURER,SILVER,TRIM1#,4#
main74232-02C60-B0i201007-201310
GRADE MARK : 2.0Z,ORNAMENT SILVER,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02310-B0i200808-201105
SILVER,TRIM4#
main74271-02320-E0i200808-201105
BROWN,TRIM4#
main74271-02330-B0i200808-201104
SILVER,TRIM4#
main74271-02340-B0i200808-201104
SILVER,TRIM4#
main74271-02350-E0i200808
BROWN,TRIM4#
main74271-02360-B0i200811-200912
SILVER,TRIM1#
main74271-02370-B0i200801-201008
GRADE MARK : 1.6E OR 1.8E(TAIWAN),SILVER,TRIM4#; SILVER,TRIM1#; SILVER,TRIM4#
main74271-02380-E0i200801-201008
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74271-02400-E0i200712-200811
BROWN,TRIM1#,4#
main74271-02430-B0supersedes 74271-02440-B1i200811-201007
GRAY,TRIM11
main74271-02430-B2i200811-201007
DK.GRAY,TRIM12
main74271-02430-E0supersedes 74271-02440-E0i200712-201007
GREGE,TRIM4#
main74271-02500-B0i201008-201311
GRADE MARK : 1.6E OR 1.8E,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM1#; ORNAMENT SILVER,TRIM1#,4#; ORNAMENT SILVER,TRIM4#
main74271-02510-E0i201008-201311
DARK BROWN,TRIM1#,4#
main74271-02530-E0i201007-201305
DARK BROWN,TRIM1#,4#
main74271-02550-B0i201105-201312
GRADE MARK : J,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM4#
main74271-02560-E0i201105-201312
DARK BROWN,TRIM4#
main74271-02570-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74271-02580-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74271-02590-E0i201104-201406
DARK BROWN,TRIM4#
main74271-02390-B0i200912-201007
GRADE MARK-Z,SILVER,TRIM1#,4#
main74271-02520-B0i201007-201310
GRADE MARK : 2.0Z,ORNAMENT SILVER,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02300-B0i200808-201105
SILVER,TRIM4#
main74272-02310-E0i200808-201105
BROWN,TRIM4#
main74272-02320-B0i200808-201104
SILVER,TRIM4#
main74272-02330-B0i200808-201104
SILVER,TRIM4#
main74272-02340-E0i200808
BROWN,TRIM4#
main74272-02350-B0i200811-200912
SILVER,TRIM1#
main74272-02360-B0i200801-200812
GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),SILVER,TRIM4#; SILVER,TRIM4#; SINGAPORE SPEC,SILVER,TRIM4#
main74272-02370-E0i200801-201010
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74272-02390-E0i200712-201007
BROWN,TRIM1#,4#
main74272-02420-B0supersedes 74272-02430-B1i201007-201310
GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1#
main74272-02420-B2i200811-201007
DK.GRAY,TRIM12
main74272-02420-E0supersedes 74272-02430-E0i200712-201007
GREGE,TRIM4#
main74272-02500-B0i201008-201311
GRADE MARK : 1.6E OR 1.8E,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM1#; ORNAMENT SILVER,TRIM1#,4#; ORNAMENT SILVER,TRIM4#
main74272-02510-E0i201008-201311
DARK BROWN,TRIM1#,4#
main74272-02530-E0i201007-201310
DARK BROWN,TRIM1#,4#
main74272-02550-B0i201105-201312
GRADE MARK : J,ORNAMENT SILVER,TRIM4#; ORNAMENT SILVER,TRIM4#
main74272-02560-E0i201105-201312
DARK BROWN,TRIM4#
main74272-02570-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74272-02580-B0i201104-201406
ORNAMENT SILVER,TRIM4#
main74272-02590-E0i201104-201406
DARK BROWN,TRIM4#
main74272-02380-B0i201007-201310
POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER,SILVER,TRIM1#,4#
main74272-02520-B0supersedes 74272-02610-C0i201210-201310
GRADE MARK : 2.0Z,ORNAMENT SILVER,TRIM1#
9046712080
main90467-12080
90467T0034
main90467-T0034

6 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota COROLLA/ALTIS

This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA/ALTIS. Key components include: CAUTION PLATE (EXTERIOR & INTERIOR), PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
