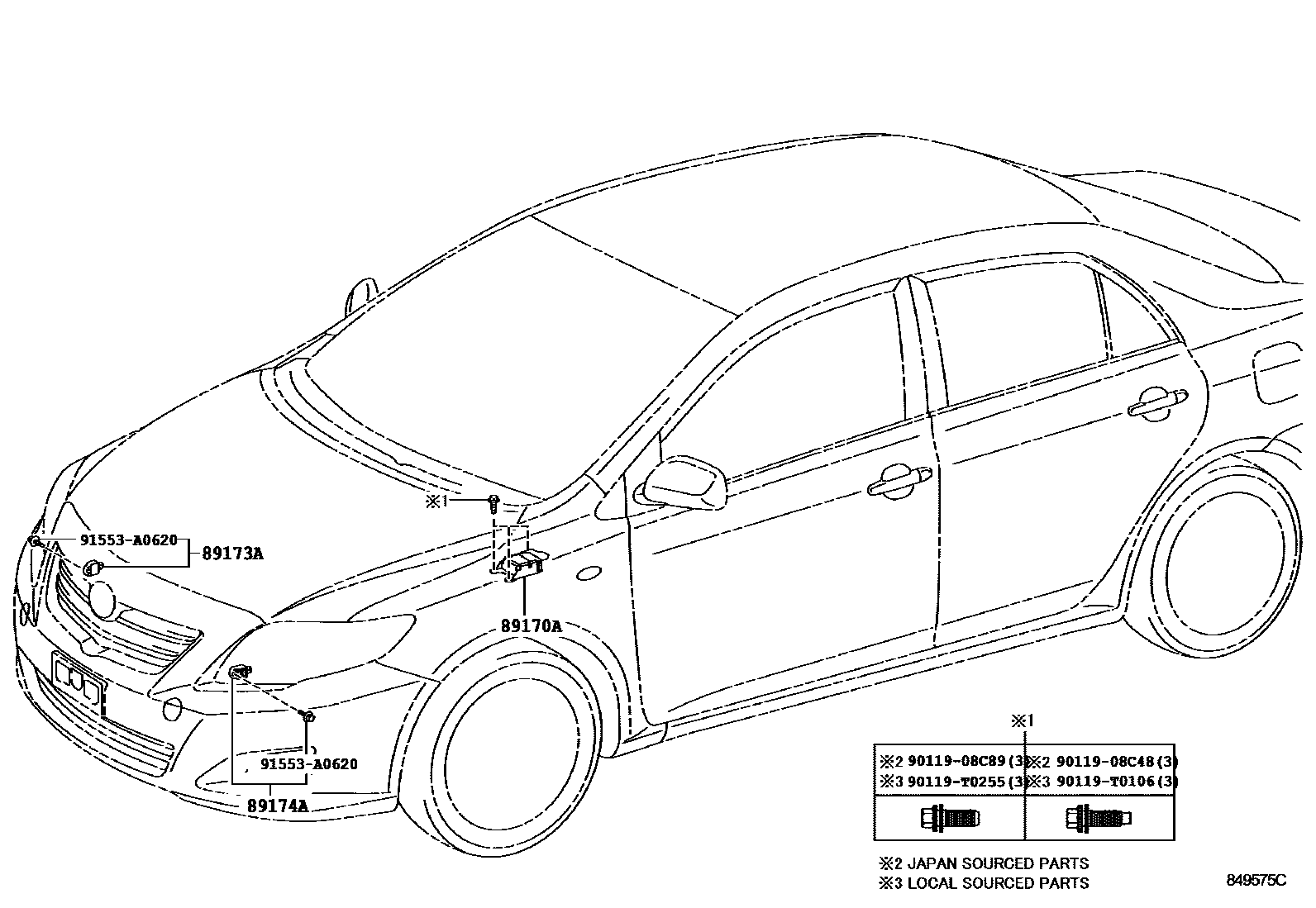

Toyota COROLLA/ALTIS — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-02810iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008
main89170-02B10iZRE142..HTWCF;NDE140,ZRE141..RHD..(16E,16G,E,G);ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,MA,PHL,VN);ZRE142,143..(6F,CVFC)..(18E,18J,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC201008
SRS AIR BAG-WITH(DRIVER)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
9011908C48
main90119-08C48
9011908C89
main90119-08C89
90119T0106
main90119-T0106
90119T0255
main90119-T0255
91553A0620
main91553-A0620
8 parts on this diagram · 1 diagram in section
AIR BAG for Toyota COROLLA/ALTIS
This section contains 8 genuine Toyota parts for the AIR BAG system of the Toyota COROLLA/ALTIS. Key components include: COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
