Toyota COROLLA/ALTIS — ACCELERATOR LINK

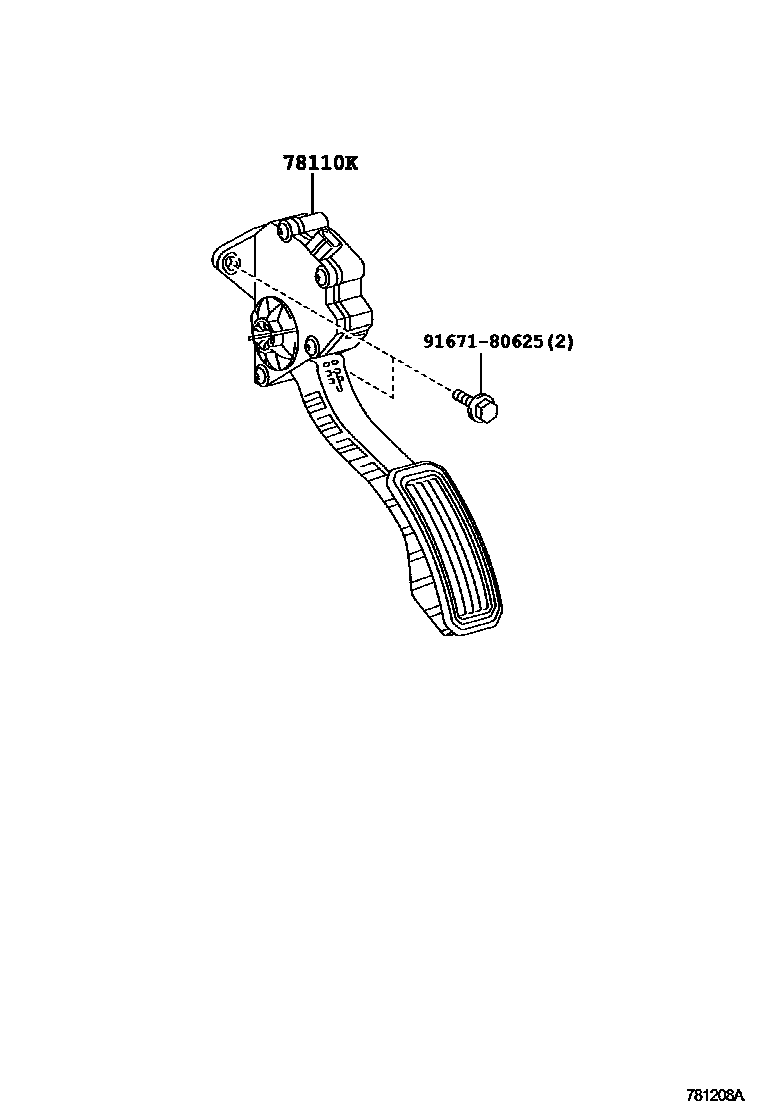

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-02040iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201107
9167180625
main91671-80625
2 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota COROLLA/ALTIS
This section contains 15 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA/ALTIS. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL).
