Toyota COROLLA/ALTIS — ABS & VSC

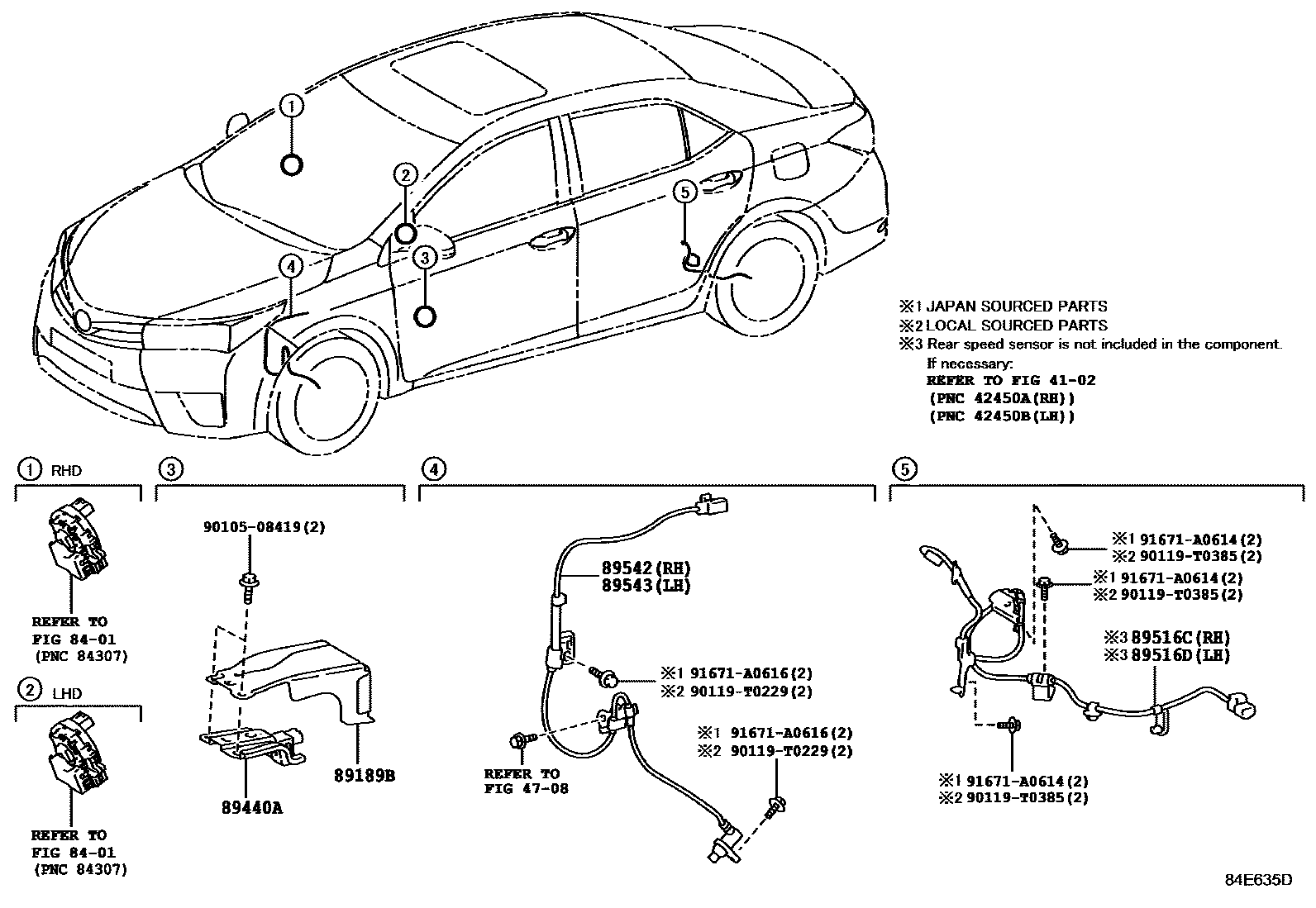

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89189BBRACKET, YAWRATE SENSOR

main89189-12130i201310-201601

89440ASENSOR ASSY, DECELERATION

main89440-12110i201310-201601

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-02210i201310-201511

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-02220i201310-201609

89542SENSOR, SPEED, FRONT RH

main89542-02130i201312-201610

main89542-12100i201610-202208

89543SENSOR, SPEED, FRONT LH

main89543-02130i201312-201709

main89543-12100i201310-201707

9010508419

main90105-08419

90119T0229

main90119-T0229

90119T0385

main90119-T0385

91671A0614

main91671-A0614

91671A0616

main91671-A0616

14 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA/ALTIS

This section contains 14 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA/ALTIS. Key components include: REAR AXLE SHAFT & HUB, BRAKE TUBE & CLAMP, SWITCH & RELAY & COMPUTER, BRACKET, YAWRATE SENSOR, SENSOR ASSY, DECELERATION.
