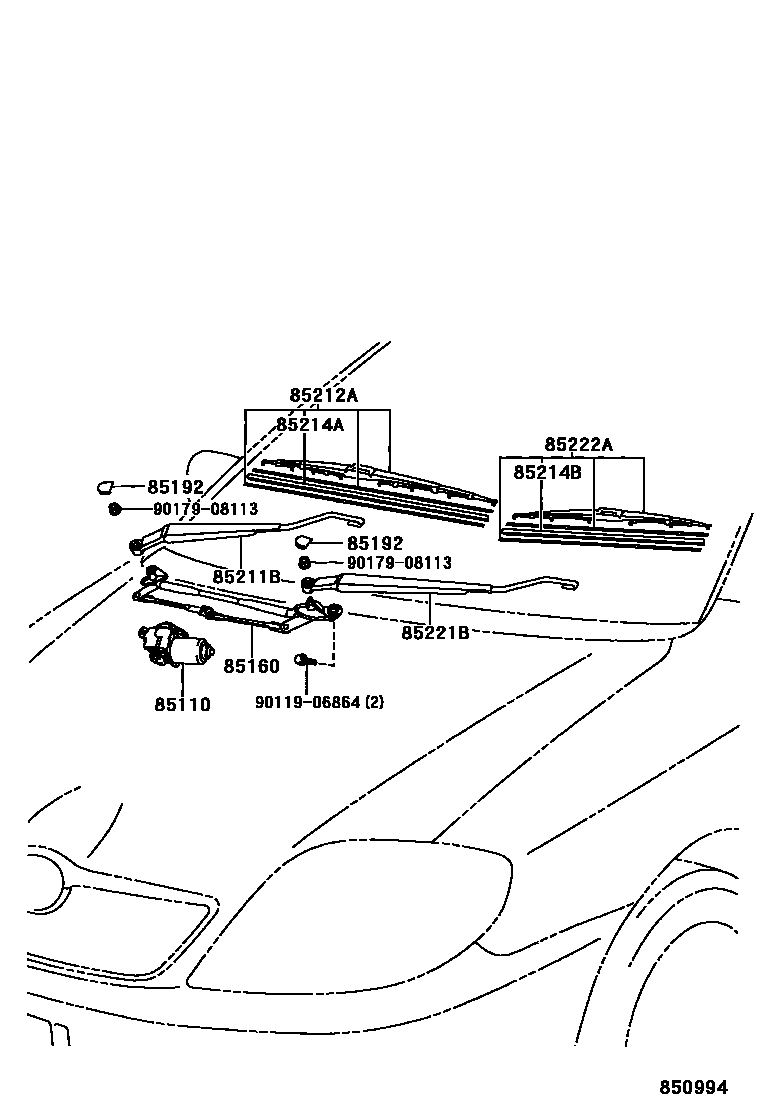

Toyota COROLLA 5D — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A050iZZE122200110-200404

85160LINK ASSY, WINDSHIELD WIPER

main85150-1A060iZZE122200110-200404

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iZZE122200110-200404

85211BARM, FRONT WIPER, RH

main85211-12420iZZE122200110-200404

main85211-12460iZZE122200404-200702

85212ABLADE, FR WIPER, RH

main85212-13010iZZE122200110-200404

main85212-30370iZZE122200404-200702

85214ARUBBER, WIPER, RH

main85214-50100iZZE122200310-200404

main85214-50120iZZE122200110-200310

85214BRUBBER, WIPER, LH

main85214-22420iZZE122200110-200310

main85214-46010iZZE122200310-200404

main85214-46011iZZE122200606-200702

85221BARM, FRONT WIPER, LH

main85221-12390iZZE122200110-200404

main85221-12410iZZE122200404-200702

85222ABLADE, FR WIPER, LH

main85222-20391iZZE122200110-200404

main85222-46010iZZE122200404-200605

main85222-46011iZZE122200606-200702

9011906864

main90119-06864

9017908113

main90179-08113

11 parts on this diagram · 1 diagram in section
