Toyota COROLLA 5D — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

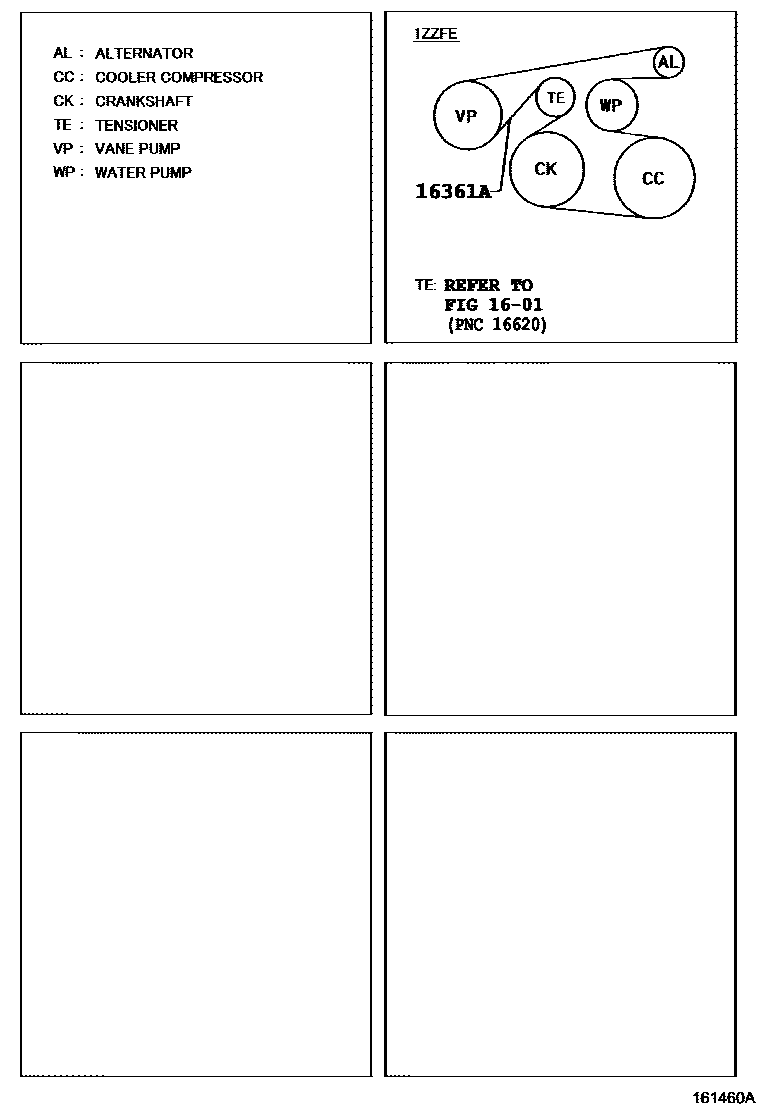

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02468i200404-200405

main90916-02506i200110-200203

W(AIR CONDITIONER)

main90916-02551i200404-200702

W(AIR CONDITIONER)

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA 5D

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA 5D. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
