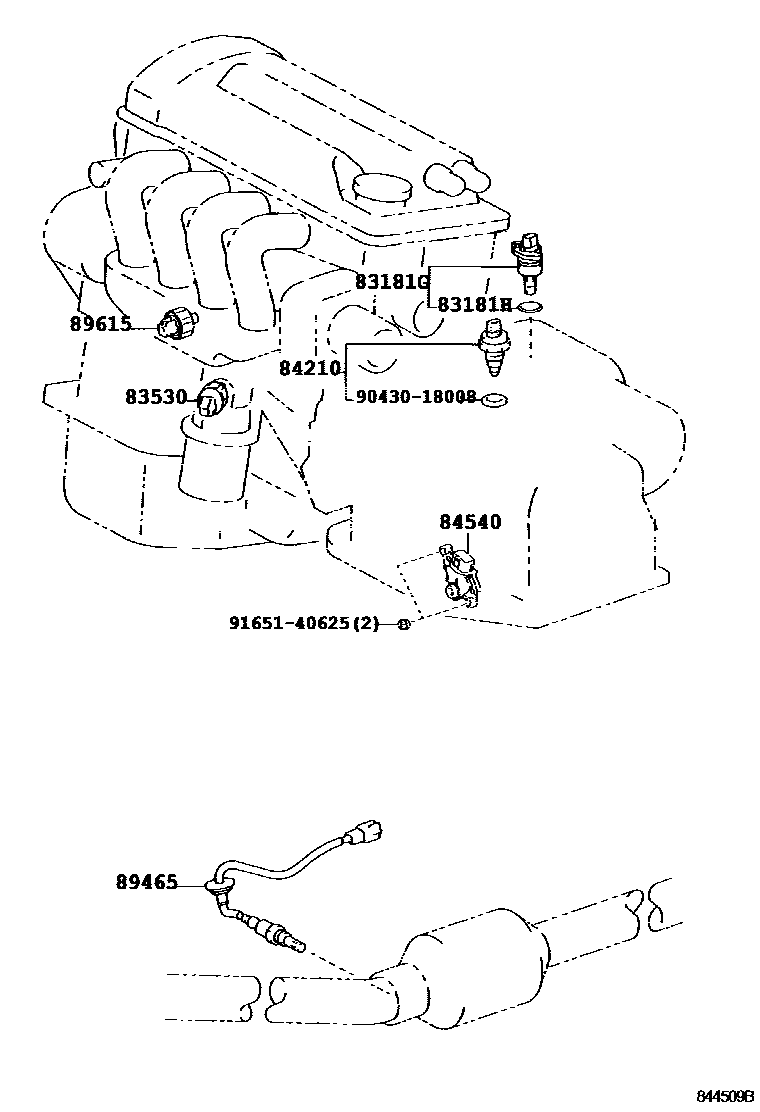

Toyota COROLLA 5D — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1IGNITION & COMBINATION SWITCH0007 1DOOR,ROOF,FLOOR & BACK DOOR

83181GSENSOR, SPEEDOMETER

main83181-12020iZZE122..MTM200404-200702

main83181-12040iZZE122..ATM200510-200702

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iZZE122..ATM200510-200702

main96711-24030iZZE122200110-200404

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZE122200404-200702

DENSO

main83530-60020iZZE122200110-200404

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZZE122..MTM200404-200702

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12230iZZE122..ATM200110-200203

main84540-32110iZZE122..ATM200203-200404

main84540-48010iZZE122..ATM200404-200510

main84540-52010iZZE122..ATM200510-200702

P/N LABEL=8454052010

main84540-52050iZZE122..ATM200510-200702

P/N LABEL=8454052050

89465SENSOR, OXYGEN

main89465-12620iZZE122200110-200404

main89465-12750iZZE122200510

NO.1

main89465-12760iZZE122200510

NO.2

89615SENSOR, KNOCK CONTROL

main89615-12120iZZE122200110-200312

main89615-20090iZZE122200510-200702

9043018008

main90430-18008

9165140625

main91651-40625

9 parts on this diagram · 7 diagrams in section
