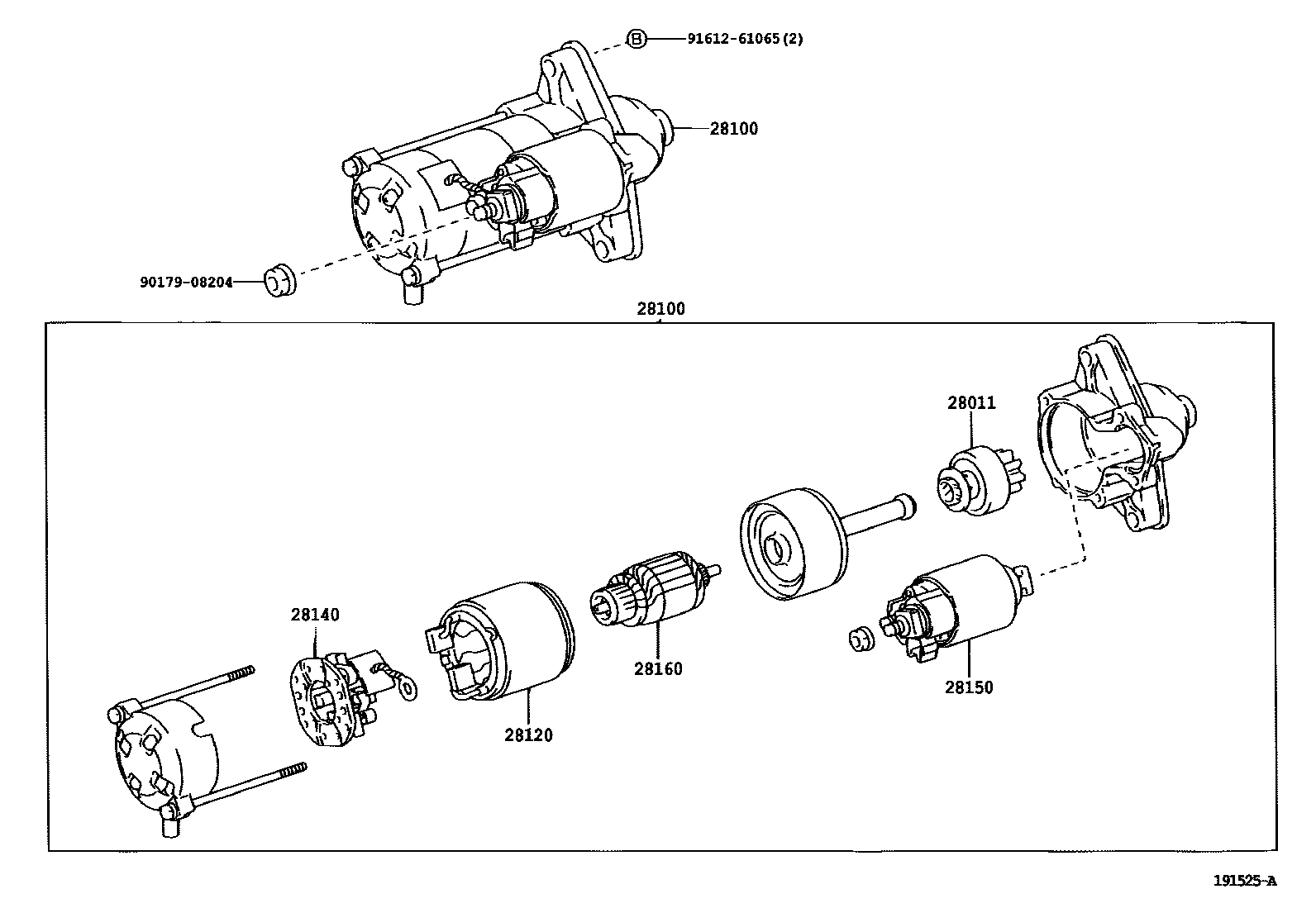

Toyota COROLLA 5D — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1ZZFE..ZZE122200110-200404

28100STARTER ASSY

main28100-22030i1ZZFE..ZZE122200110-200404

12V 0.8KW

sub28100-22031

28120YOKE ASSY, STARTER

main28120-70020i1ZZFE..ZZE122200110-200404

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1ZZFE..ZZE122200110-200404

28150SWITCH ASSY, MAGNET STARTER

main28150-70030i1ZZFE..ZZE122200110-200404

sub28150-22100

28160ARMATURE ASSY, STARTER

main28160-70021i1ZZFE..ZZE122200110-200404

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 1 diagram in section
