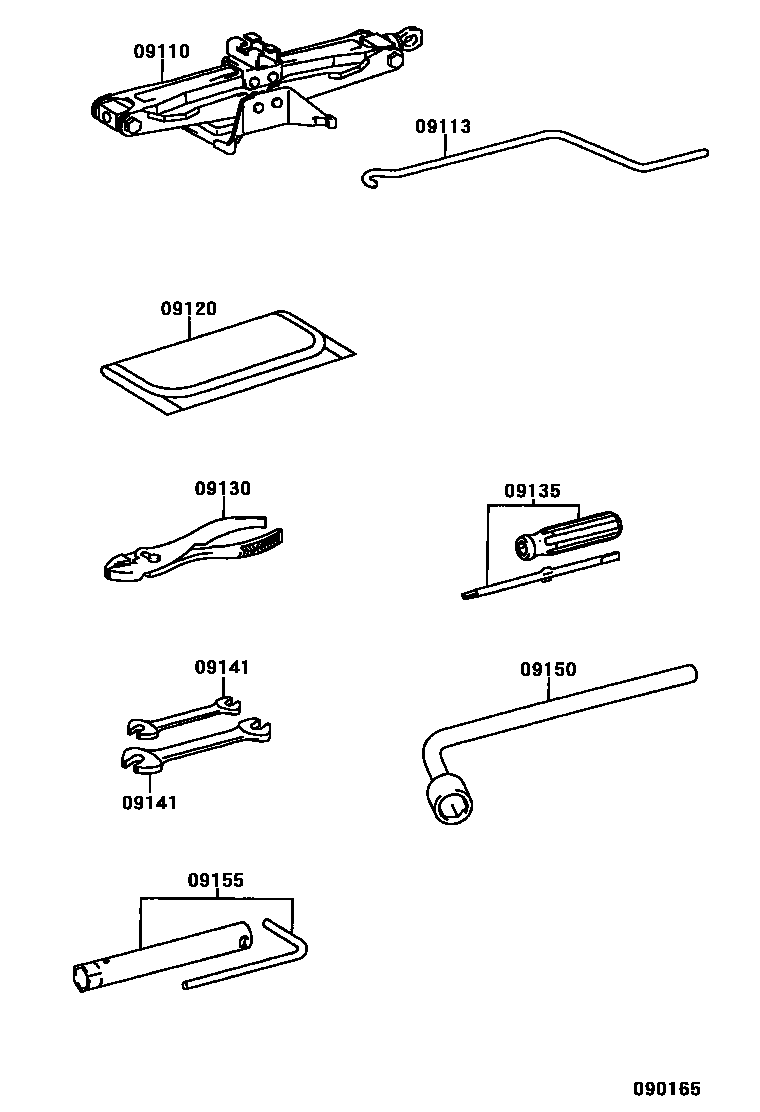

Toyota COROLLA 5D — STANDARD TOOL

09110JACK ASSY

main09110-12060iZZE122200404-200702

09113HANDLE, JACK

main09113-20040iZZE122200110-200404

sub09113-20050

09120BAG, TOOL

main09120-16030iZZE122200110-200404

09130PLIERS

main99913-11500iZZE122200110-200404

09135DRIVER, SCREW

main99915-10700iZZE122200404-200702

09141SPANNER

main99914-10810iZZE122200110-200404

8 X 10

main99914-11214iZZE122200110-200404

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iZZE122200110-200404

09155WRENCH, SPARK PLUG

main09155-74010iZZE122200110-200404

8 parts on this diagram · 1 diagram in section
