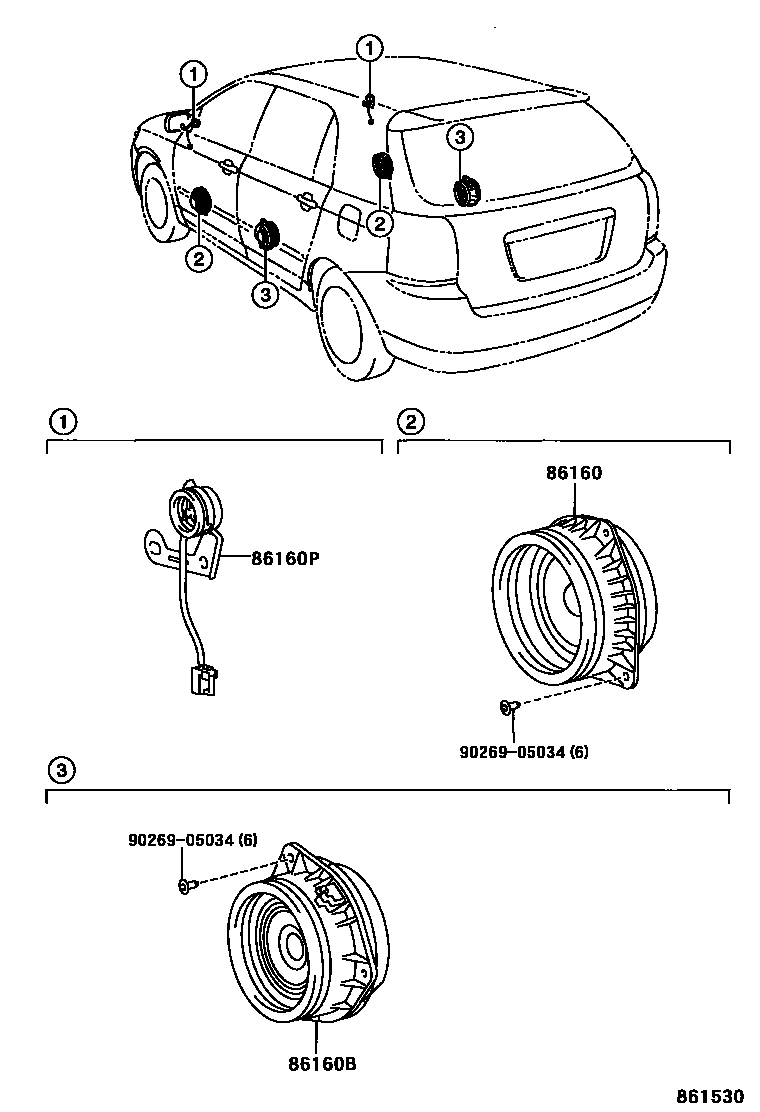

Toyota COROLLA 5D — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-1A080×2iZZE122200110-200209

main86160-44120×2iZZE122200209-200303

main86160-68090×2iZZE122200303-200404

86160BSPEAKER ASSY, REAR

main86160-13080×2iZZE122200303-200404

main86160-1A110×2iZZE122200110-200209

main86160-44130×2iZZE122200209-200303

86160PSPEAKER ASSY, FRONT NO.2

main86160-1A090iZZE122..LVN,ULT200110-200404

RH

main86160-1A100iZZE122200404-200702

LH

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section
