Toyota COROLLA 5D — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
67771CRETAINER, FRONT PILLAR COVER
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
BLACK(LESS COLOR)
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
LT.BLUE M.M.,8S1
BLUE ME.,8P1
75732AMOULDING, FRONT DOOR, OUTSIDE LH
BLACK(LESS COLOR)
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
LT.BLUE M.M.,8S1
BLUE ME.,8P1
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
BLACK(LESS COLOR)
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
LT.BLUE M.M.,8S1
BLUE ME.,8P1
75742MOULDING, REAR DOOR, OUTSIDE LH
BLACK(LESS COLOR)
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
LT.BLUE M.M.,8S1
BLUE ME.,8P1
9046710162
main90467-10162

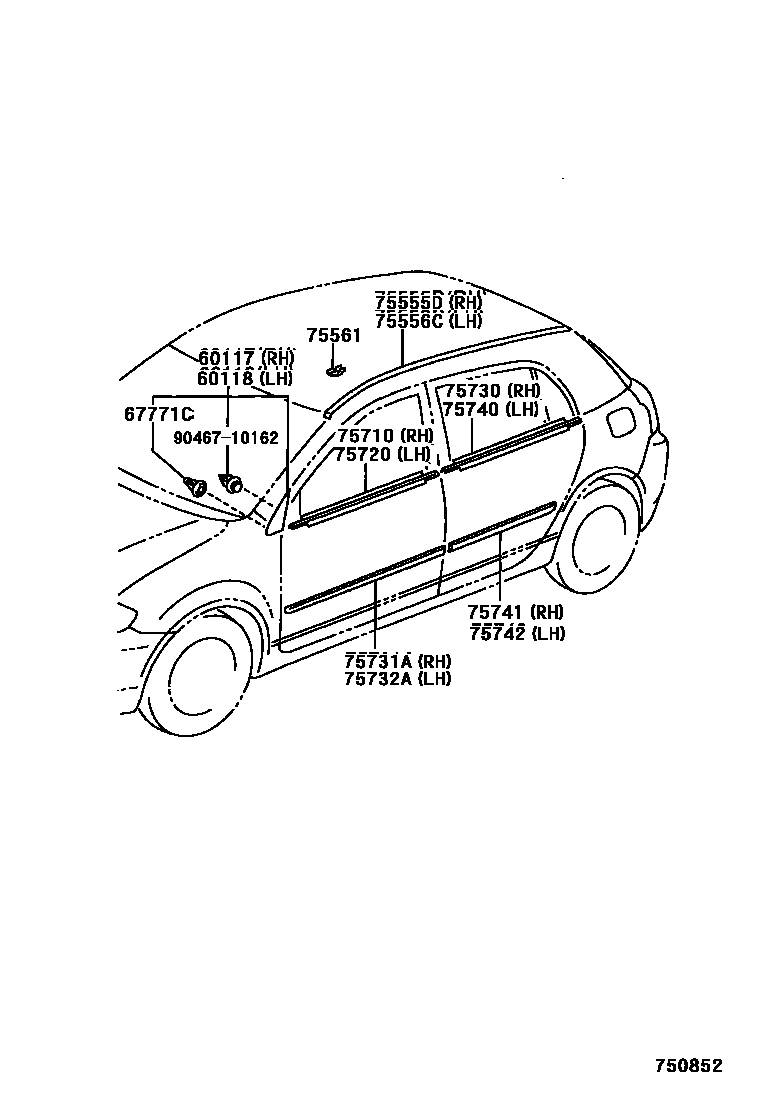

15 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota COROLLA 5D
This section contains 15 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA 5D. Key components include: COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, RETAINER, FRONT PILLAR COVER, MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH.
