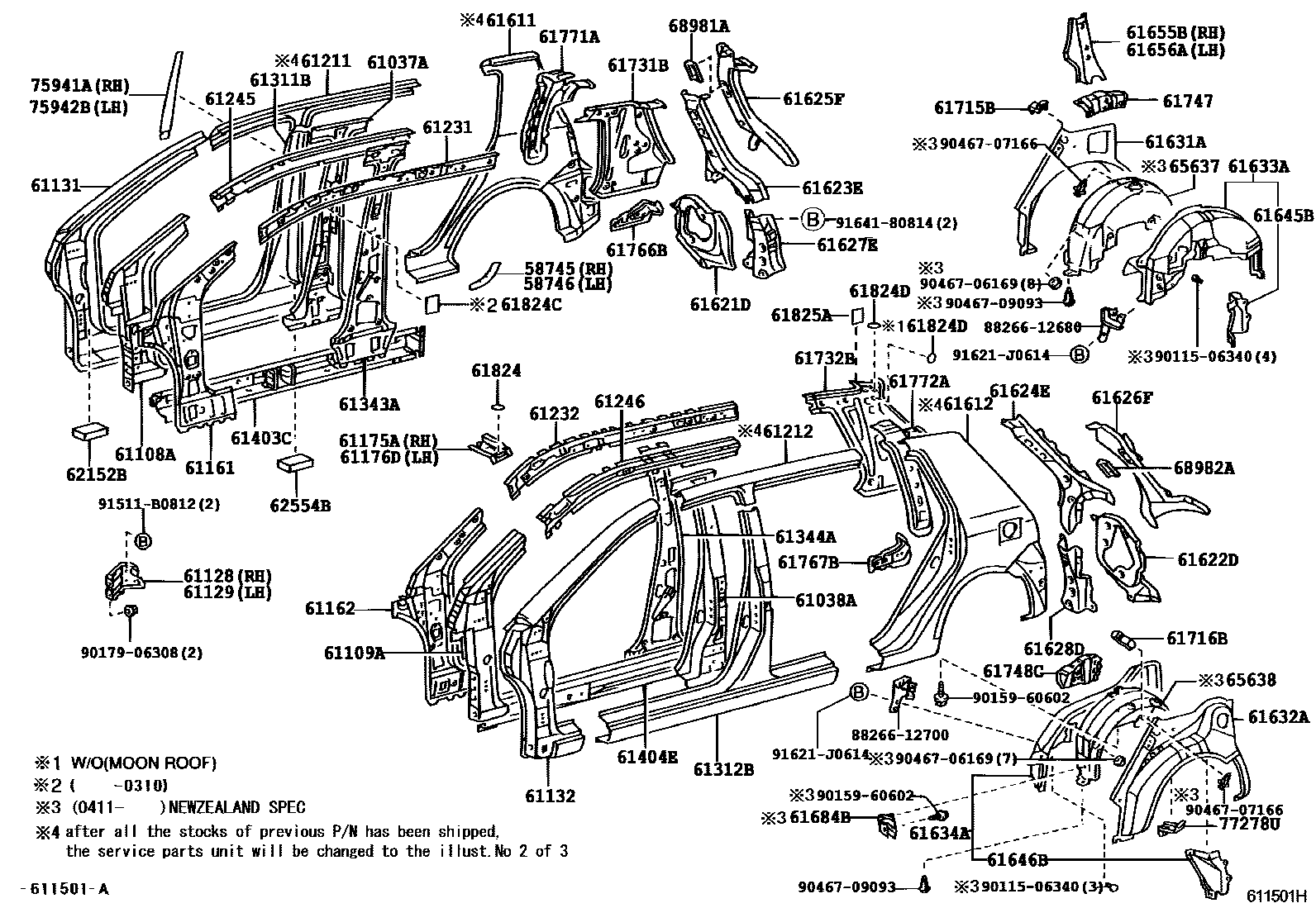

Toyota COROLLA 5D — SIDE MEMBER

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-12160i200404-200702

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58742-12140i200110-200404

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12903i200110-200404

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12903i200110-200404

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12230i200110-200404

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12220i200110-200404

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-12190i200110-200404

main61103-12200i200404-200702

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-12220i200110-200404

main61104-12230i200404-200702

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-13050i200110-200404

main61131-13060i200404-200702

W(SIDE MUDGUARD)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-13050i200404-200702

main61132-13060i200110-200404

W(SIDE MUDGUARD)

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-12320i200110-200209

main61023-12350i200209-200404

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-12320i200110-200209

main61024-12350i200209-200404

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-12140i200110-200404

main61175-12200i200411-200702

W(CURTAIN SHIELD AIR BAG)

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-12150i200110-200404

main61176-12201i200411-200702

W(CURTAIN SHIELD AIR BAG)

61211RAIL, ROOF SIDE, OUTER RH

main61211-13080i200110-200404

61212RAIL, ROOF SIDE, OUTER LH

main61212-13080i200110-200404

61231RAIL, ROOF SIDE, INNER RH

main61231-13221i200110-200404

61232RAIL, ROOF SIDE, INNER LH

main61232-13201i200110-200404

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-13050i200110-200404

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-13050i200404-200702

61311BPILLAR, CENTER BODY, OUTER RH

main61311-13030i200404-200702

main61311-13040i200404-200702

W(SIDE MUDGUARD)

61312BPILLAR, CENTER BODY, OUTER LH

main61312-13030i200110-200404

main61312-13040i200110-200404

W(SIDE MUDGUARD)

61343APILLAR, CENTER BODY, INNER RH

main61343-12240i200110-200404

61344APILLAR, CENTER BODY, INNER LH

main61344-12240i200110-200404

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-12010i200110-200404

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-12011i200110-200404

61611PANEL, QUARTER, RH

main61601-13550i200110-200404

main61601-13560i200404-200702

W(SIDE MUDGUARD)

61612PANEL, QUARTER, LH

main61602-13610i200110-200404

main61602-13620i200110-200404

W(SIDE MUDGUARD)

61621DTROUGH, BACK DOOR OPENING, RH

main61621-13060i200110-200307

main61621-13061i200307-200404

61622DTROUGH, BACK DOOR OPENING, LH

main61622-13060i200110-200307

main61622-13061i200307-200404

61623EEXTENSION, QUARTER INNER PANEL, REAR RH

main61623-13050i200110-200404

61624EEXTENSION, QUARTER INNER PANEL, REAR LH

main61624-13040i200110-200404

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-13900i200110-200404

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-13900i200110-200404

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-13010i200110-200404

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-13010i200110-200404

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12410i200110-200404

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12430i200110-200404

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12927i200110-200404

main61607-12928i200404-200702

W(ABS)

main61607-13903i200411-200702

NEWZEALAND SPEC

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12925i200404-200702

main61608-12926i200110-200404

W(ABS)

main61608-13903i200411-200702

NEWZEALAND SPEC

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12150i200110-200404

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-12140i200110-200404

61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH

main61061-0W020i200411-200702

NEWZEALAND SPEC

main61655-13030i200110-200404

61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH

main61062-0W020i200411-200702

NEWZEALAND SPEC

main61656-13030i200110-200404

main61656-13031i200404-200702

61684BBRACKET, REAR WHEEL OPENING, NO.1 LH

main61684-12040i200411-200702

61715BEXTENSION, ROOF SIDE, INNER FRONT RH

main61715-13050i200110-200404

61716BEXTENSION, ROOF SIDE, INNER FRONT LH

main61715-13050i200110-200404

61731BPANEL, ROOF SIDE, INNER RH

main61731-13391i200110-200208

main61731-13410i200411-200702

NEWZEALAND SPEC

61732BPANEL, ROOF SIDE, INNER LH

main61732-13400i200110-200404

main61732-13420i200411-200702

NEWZEALAND SPEC

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-13060i200110-200404

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-13090i200110-200404

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-13080i200110-200404

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-13070i200404-200702

61771AGUSSET, BACK WINDOW OPENING, RH

main61771-13070i200110-200404

61772AGUSSET, BACK WINDOW OPENING, LH

main61772-13070i200110-200404

61824PLATE, NOISE CONTROL, NO.1

main61824-12040×2i200110-200403

main61824-12060×2i200403-200404

61824CPAD, NOISE SHUTTER, NO.1

main61824-50020×2i200110-200310

61824DPLATE, NOISE CONTROL, NO.1

main61824-12040×2i200110-200403

W(MOON ROOF)

main61824-12060×2i200403-200404

W(MOON ROOF)

61825APLATE, NOISE CONTROL, NO.2

main61815-28010×2i200403-200404

main61815-32020×2i200110-200403

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-12050×2i200404-200702

62554BPAD, PILLAR, NO.4

main62554-12180×2i200110-200404

65637LINER, REAR WHEEL HOUSE, RH

main65637-13010i200411-200702

65638LINER, REAR WHEEL HOUSE, LH

main65638-13010i200411-200702

68981ARETAINER, BACK DOOR STAY, RH

main68981-13040i200404-200702

68982ARETAINER, BACK DOOR STAY, LH

main68981-13040i200110-200404

75941ASTRIPE, CENTER PILLAR, RH

main75941-12010i200110-200305

main75941-12011i200305-200404

75942BSTRIPE, CENTER PILLAR, LH

main75942-12010i200110-200305

main75942-12011i200305-200404

77278UBRACKET, FUEL TANK FILLER PIPE PROTECTOR

main77278-32050×2i200110-200404

8826612680CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12680

8826612700CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12700

9011506340

main90115-06340

9015960602

main90159-60602

9017906308

main90179-06308

9046706169

main90467-06169

9046707166

main90467-07166

9046709093

main90467-09093

91511B0812

main91511-B0812

91621J0614

main91621-J0614

9164180814

main91641-80814

79 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota COROLLA 5D

This section contains 89 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA 5D. Key components include: PROTECTOR, QUARTER PANEL, FRONT RH, PROTECTOR, QUARTER PANEL, FRONT LH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH.
