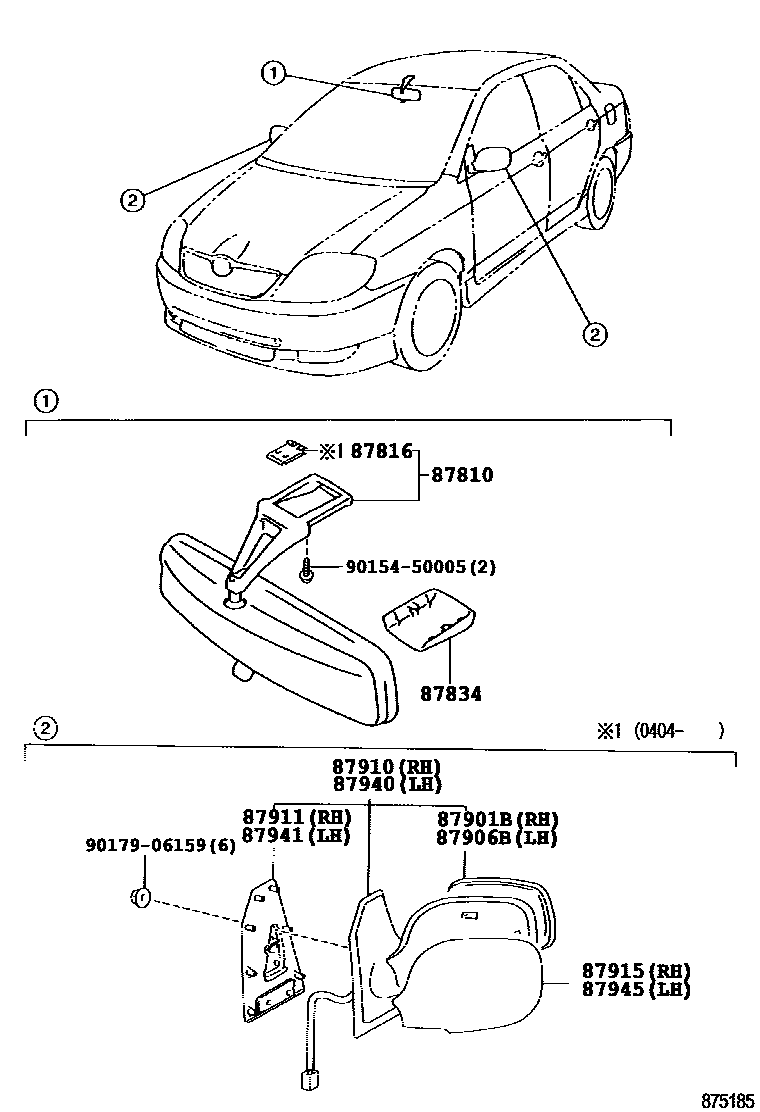

Toyota COROLLA 5D — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LT.GRAY,TRIM1#
IVORY,TRIM0#
LT.GRAY,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
LT.GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,199
GRAY M.M.,1C3
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
DK.BLUE,8Q4
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK MC.,209
DK. RED M.M.,3Q3
SUPER RED II,3E5
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
LT.BLUE M.M.,8S1
BLUE ME.,8P1
87940MIRROR ASSY, OUTER REAR VIEW, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,199
GRAY M.M.,1C3
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
DK.BLUE,8Q4
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK MC.,209
DK. RED M.M.,3Q3
SUPER RED II,3E5
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
LT.BLUE M.M.,8S1
BLUE ME.,8P1
9015450005
main90154-50005
9017906159
main90179-06159
13 parts on this diagram · 1 diagram in section
