Toyota COROLLA 5D — METER

5501

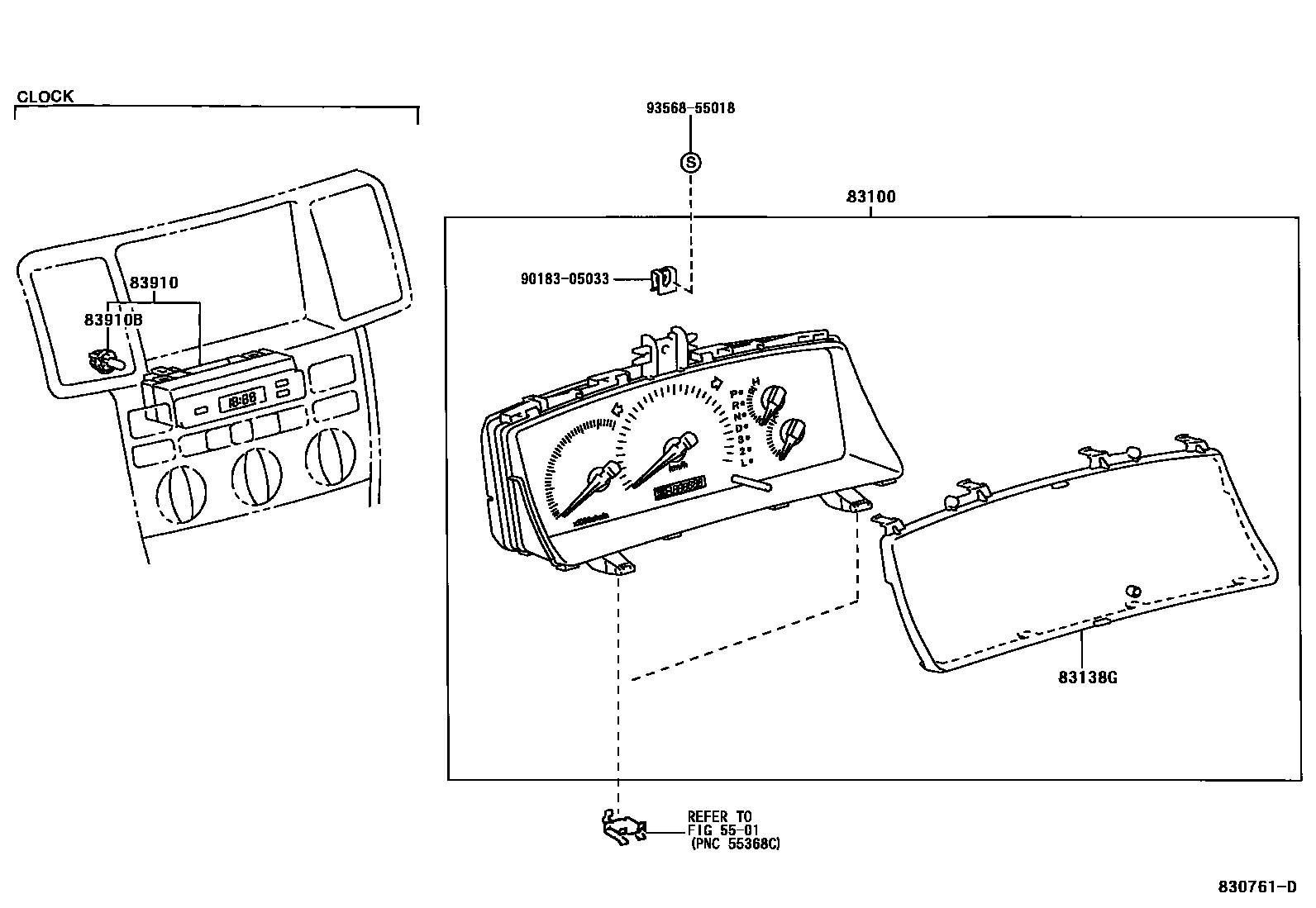

83100METER ASSY, COMBINATION

main83800-1H320iZZE122..ATM..(LVN,ULT)200110-200404

main83800-1H330iZZE122..MTM..(LVN,ULT)200404-200702

main83800-1H360iZZE122..ATM..CONQ200110-200404

main83800-1H370iZZE122..MTM..CONQ200110-200404

83138GGLASS, COMBINATION METER

main83852-1E730iZZE122..LVN,ULT200110-200404

main83852-1E760iZZE122..CONQ200404-200702

83910CLOCK ASSY

main83910-12560iZZE122200110-200404

83910BBULB, CLOCK INDICATOR

main90010-07018iZZE122200404-200702

14V 1.12W

9018305033

main90183-05033

9356855018

main93568-55018

7 parts on this diagram · 1 diagram in section
