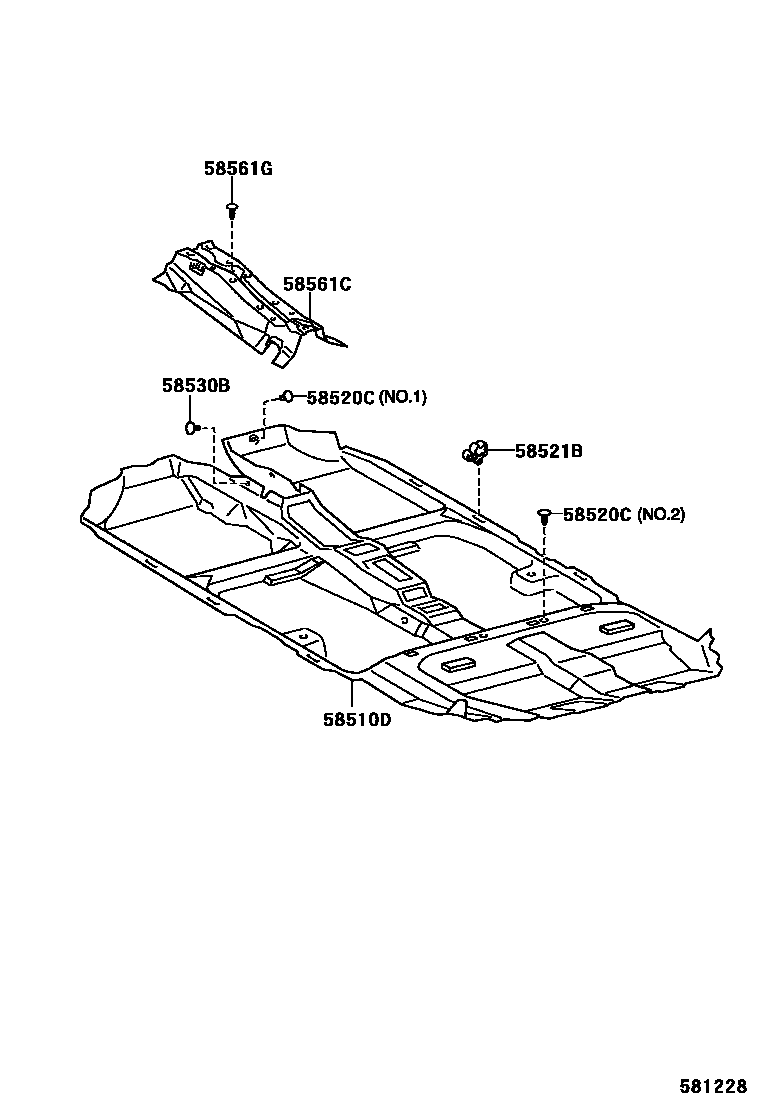

Toyota COROLLA 5D — MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
NEW ZEALAND SPEC,GRAY,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
STONE,TRIM01,NO.1; STONE,TRIM10,NO.1
BLACK,TRIM01,NO.1; BLACK,TRIM10,NO.1
BLACK,TRIM0#,NO.2; BLACK,TRIM1#,NO.2
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#; BLACK,TRIM1#
58561CSILENCER, FRONT FLOOR, NO.1
58561GCLIP(FOR FRONT FLOOR SILENCER)
BLACK,TRIM0#; BLACK,TRIM1#
6 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota COROLLA 5D
This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA 5D. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET, SILENCER, FRONT FLOOR, NO.1.
