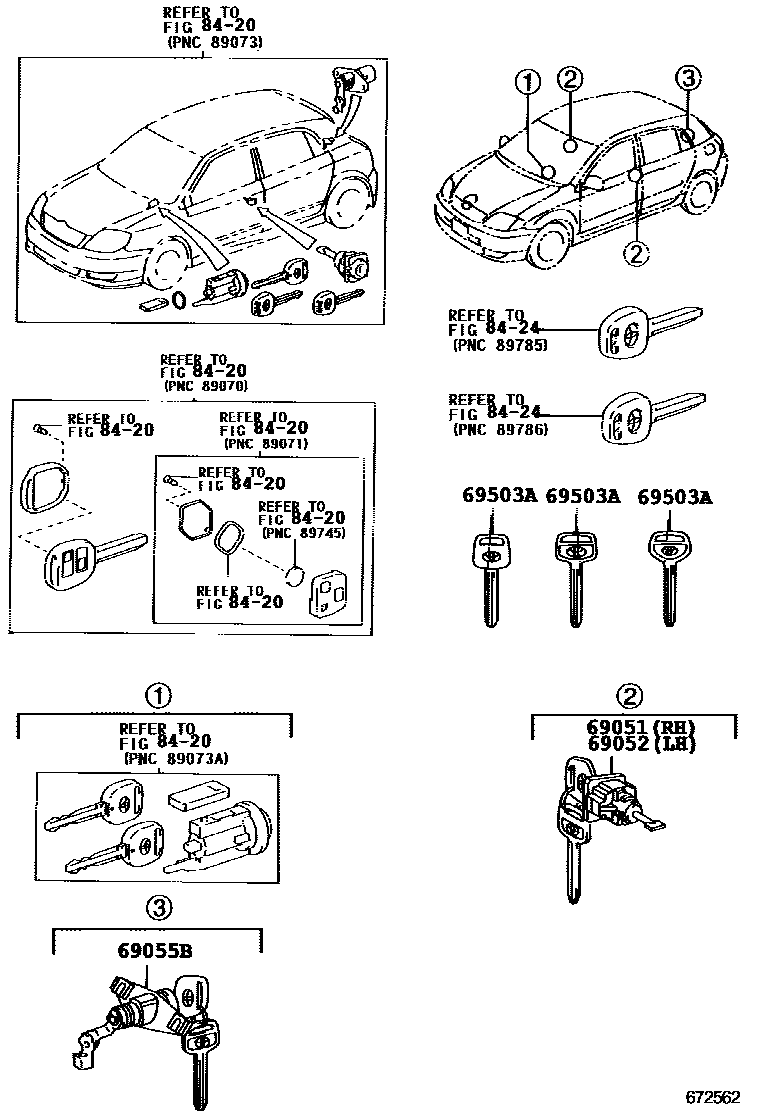

Toyota COROLLA 5D — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12610i200110-200404

main69051-13230i200404-200702

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12600i200110-200404

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-13280i200404-200702

main69055-13290i200110-200404

69503AKEY, BLANK

main90999-00186i200209-200404

MASTER KEY

main90999-00188i200209-200404

SUB KEY

main90999-00199i200209-200404

MASTER KEY,W(*68)

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

6 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota COROLLA 5D

This section contains 6 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA 5D. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, KEY, BLANK, WIRELESS DOOR LOCK.
