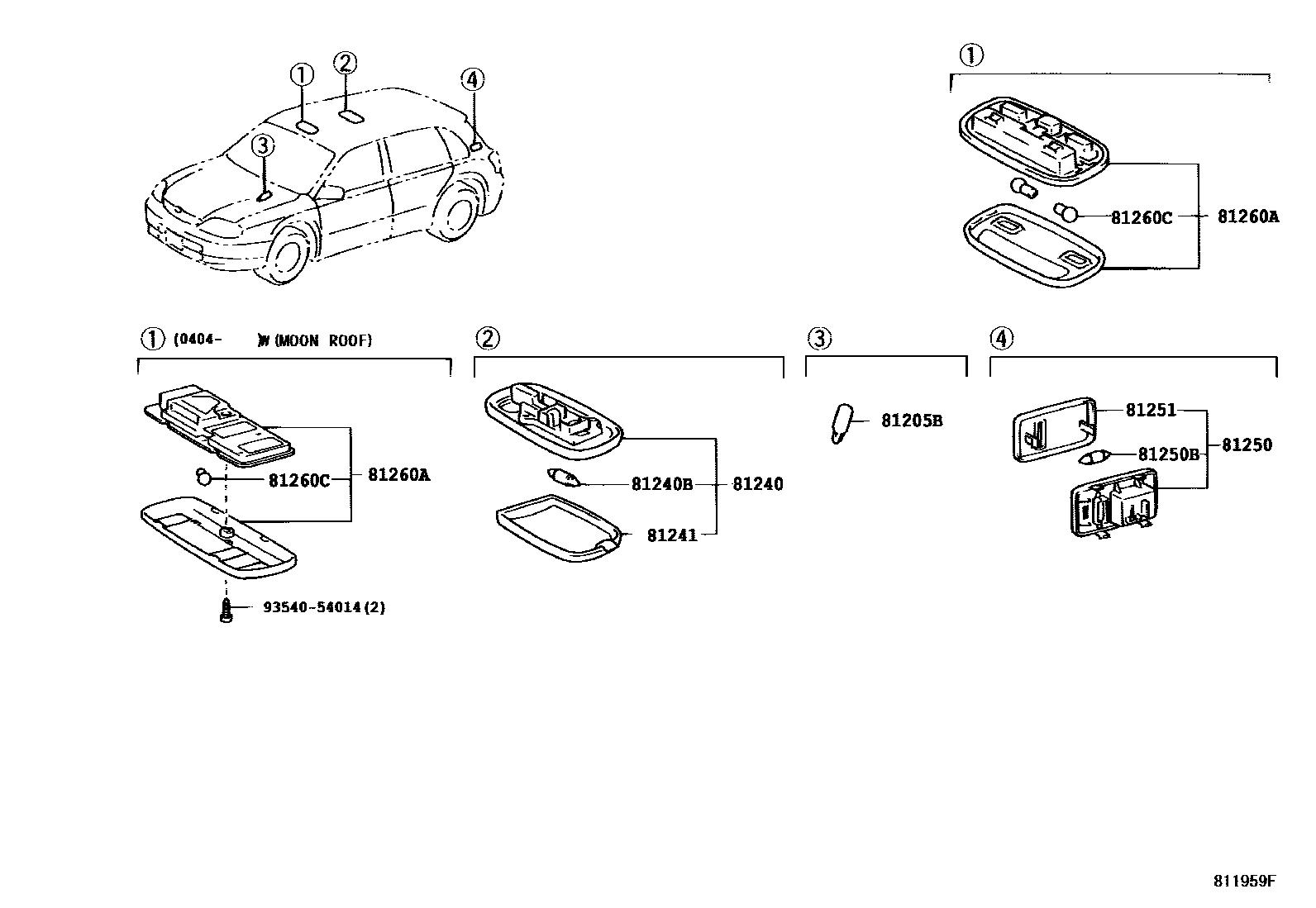

Toyota COROLLA 5D — INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018i200404-200702

12V 1.2W W/O SOCKET

81240LAMP ASSY, ROOM, NO.1

main81240-12070-A0i200404-200702

IVORY,TRIM0#

main81240-12070-B0i200404-200702

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200404-200702

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12070i200405-200702

main81241-12070-A0i200404-200405

IVORY,TRIM0#

main81241-12070-B0i200404-200405

LT.GRAY,TRIM1#

81250LAMP ASSY, ROOM, NO.2

main81250-12030-B5i200404-200702

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main99132-13050i200404-200702

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030i200110-200404

81260ALAMP ASSY, MAP

main81260-12110-A0i200404-200702

IVORY,TRIM0#

main81260-12110-B0i200110-200404

LT.GRAY,TRIM1#

main81260-12120-A0i200404-200702

W(MOON ROOF),IVORY,TRIM0#

main81260-12120-B0i200404-200702

W(MOON ROOF),LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2i200110-200404

12V 8W

main90981-12014i200404-200702

12V 10W,W(MOON ROOF)

9354054014

main93540-54014

10 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota COROLLA 5D

This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA 5D. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
