Toyota COROLLA 5D — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12410i200110-200404

53420HINGE ASSY, HOOD, LH

main53420-12330i200110-200404

53451ROD, HOOD SUPPORT

main53440-12010i200110-200301

main53440-12040i200301-200404

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034i200110-200404

53452HOLDER, HOOD STAY

main53452-12040i200110-200404

53497PAD, HOOD HINGE, NO.1

main53497-20070×4i200110-200404

T=2.0

main53497-42010×4i200110-200404

T=0.5

53510LOCK ASSY, HOOD

main53510-12690i200110-200209

main53510-12780i200209-200404

main53510-12860i200404-200702

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052i200110-200209

WD=0.9,CW=20.75

main90506-09055i200404-200702

WD=0.9,CW=21

main90506-12063i200404-200702

WD=1.2,CW=8.5

main90506-18067i200404-200702

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0i200404-200702

IVORY,TRIM0#

main53601-52010-B3i200110-200312

DK.GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12510i200110-200404

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

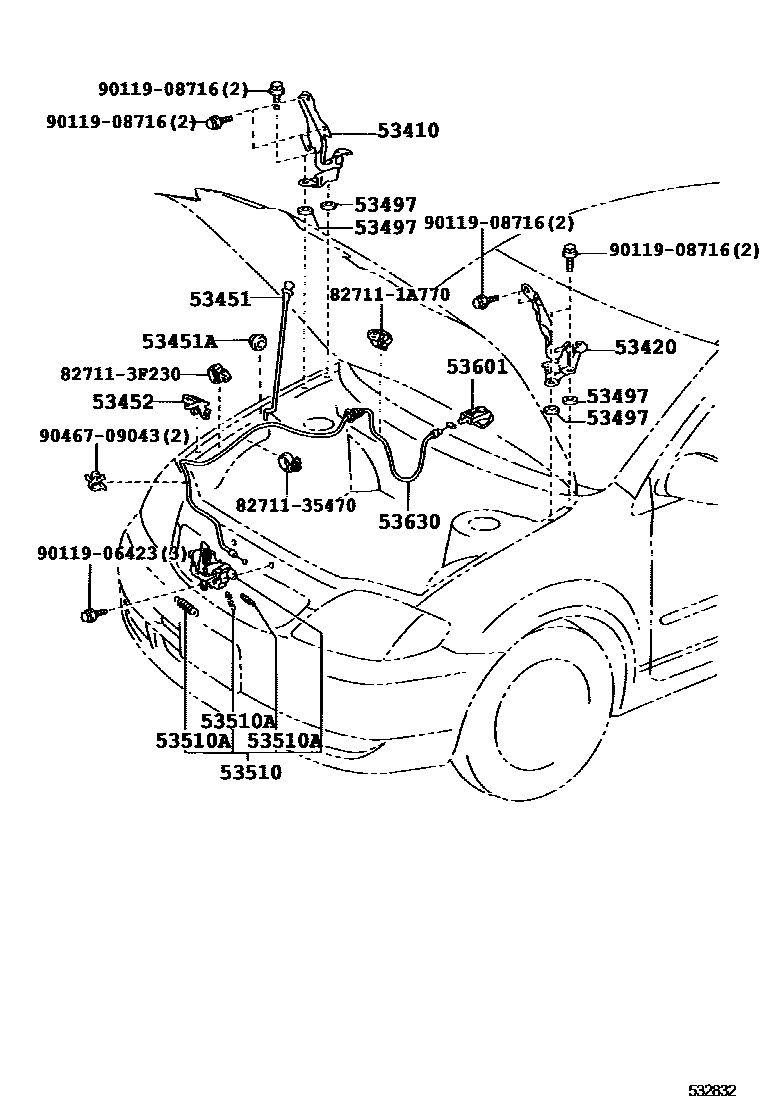

16 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota COROLLA 5D

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota COROLLA 5D. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), HOLDER, HOOD STAY.
