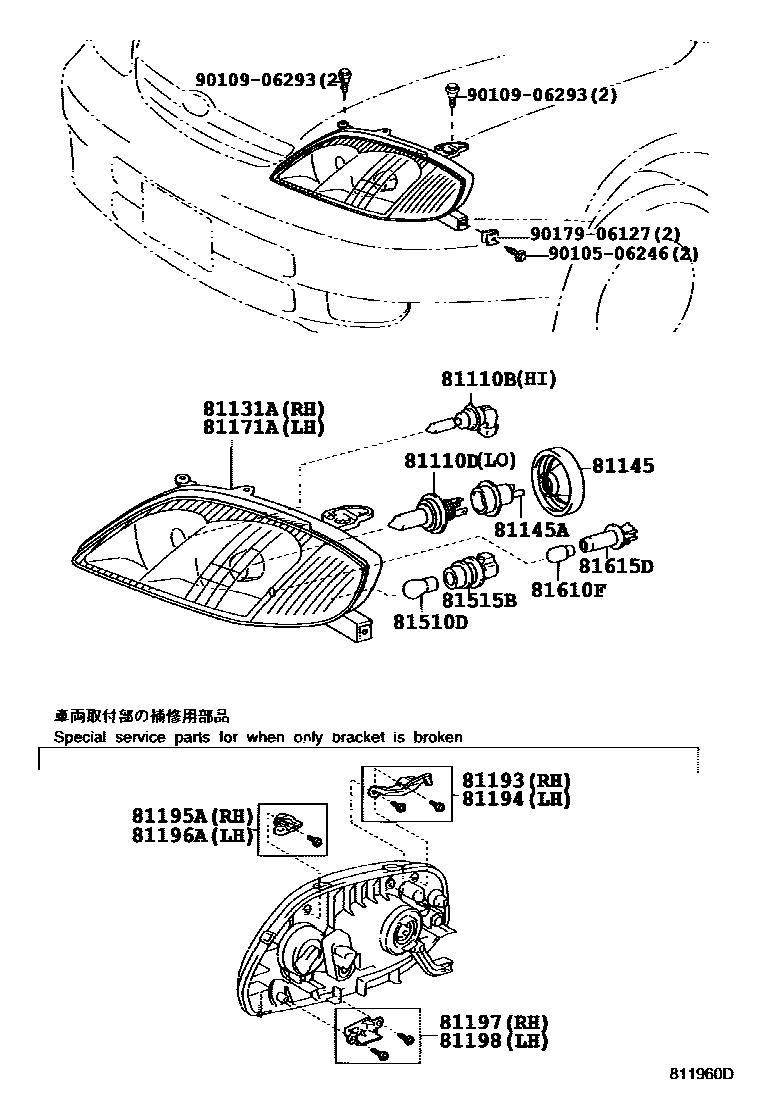

Toyota COROLLA 5D — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W
12V 55W,HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN
81145COVER, HEADLAMP, NO.2
RH
LH
81145AADAPTER ASSY
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
9010506246
main90105-06246
9010906293
main90109-06293
9017906127
main90179-06127
19 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota COROLLA 5D
This section contains 22 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA 5D. Key components include: BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT, HEADLAMP, RH, COVER, HEADLAMP, NO.1, COVER, HEADLAMP, NO.2.
