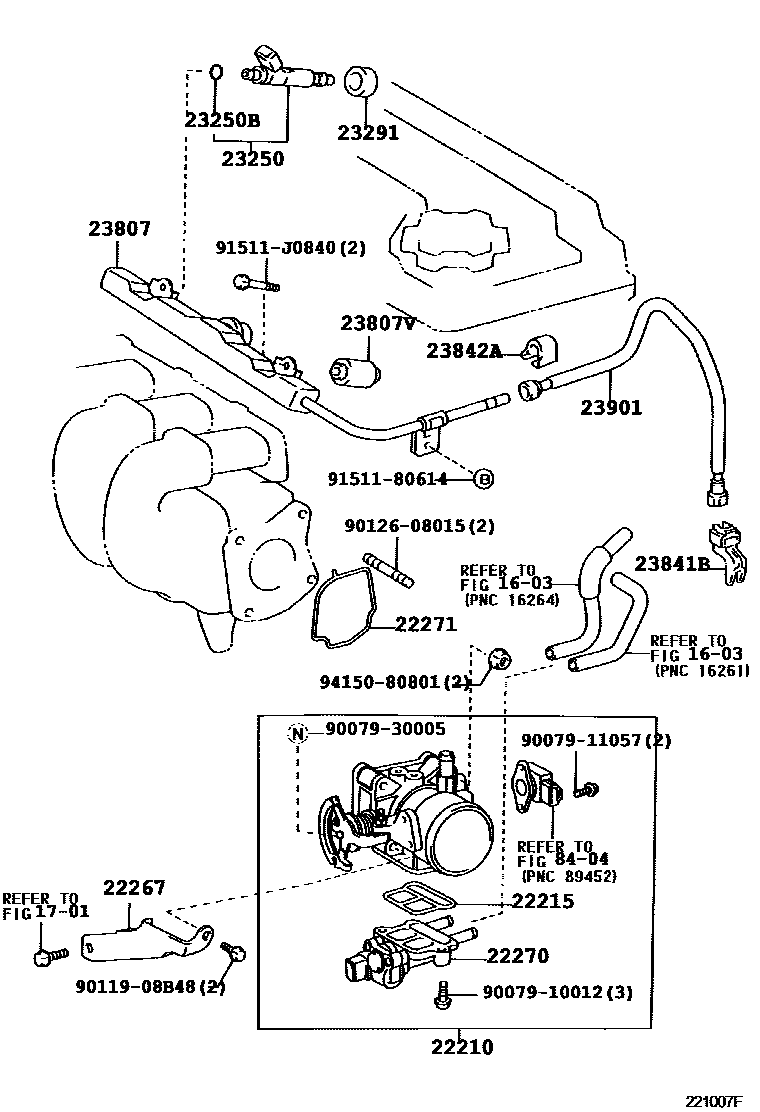

Toyota COROLLA 5D — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22267BRACKET, THROTTLE BODY
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
(L)
(J)
22271GASKET, THROTTLE BODY
(L)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
8404ELECTRONIC FUEL INJECTION SYSTEM
9007910012
main90079-10012
9007911057
main90079-11057
9007930005
main90079-30005
9011908B48
main90119-08B48
9012608015
main90126-08015
9151180614
main91511-80614
91511J0840
main91511-J0840
9415080801
main94150-80801
24 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota COROLLA 5D
This section contains 37 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota COROLLA 5D. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, BRACKET, THROTTLE BODY.
