Toyota COROLLA 5D — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D030i200205-200404

PLANT NO.=Z35,Z44

main68710-12150i200110-200205

main68710-12151i200610-200702

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D030i200205-200404

PLANT NO.=Z35,Z44

main68720-12150i200404-200609

main68720-12151i200610-200702

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010i200110-200404

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010i200110-200404

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-B6×2i200110-200404

DK.GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2i200404-200702

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-12020×2i200404-200702

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12190i200110-200404

W(POWER WINDOW)

main69810-12520i200110-200404

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12190i200404-200702

W(POWER WINDOW)

main69820-12510i200110-200404

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12190i200110-200211

main85710-12320i200211-200404

main85710-52110i200404-200702

W(POWER WINDOW=W/JAM PROTECTION)

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12210i200110-200404

main85720-52110i200404-200702

W(POWER WINDOW=W/JAM PROTECTION)

9010506125

main90105-06125

9010508077

main90105-08077

9010508291

main90105-08291

90105T0042

main90105-T0042

9016850040

main90168-50040

9020908014

main90209-08014

9153160610

main91531-60610

9167180612

main91671-80612

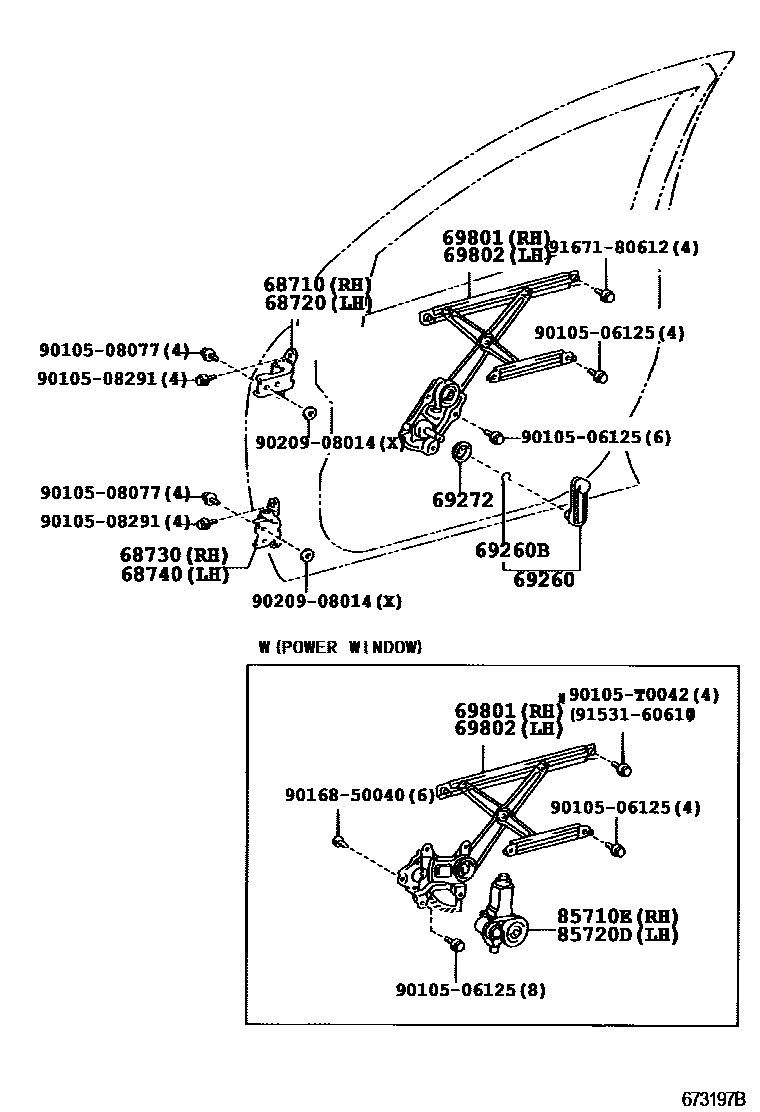

19 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA 5D

This section contains 19 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA 5D. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
