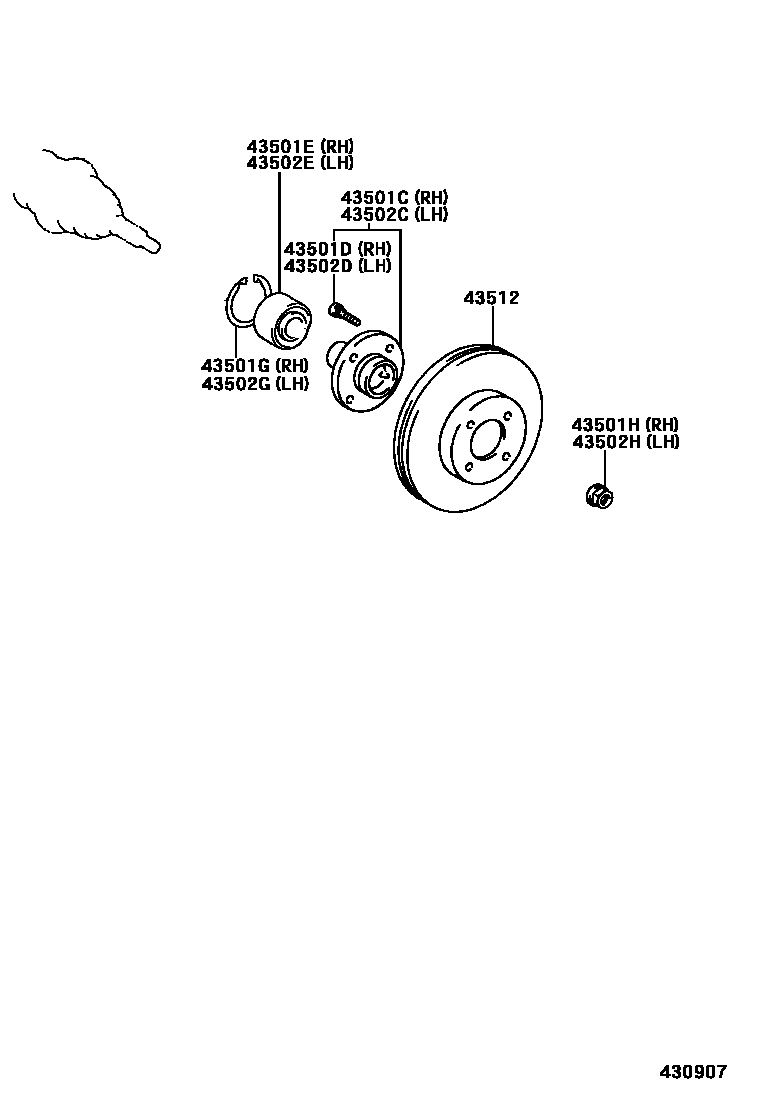

Toyota COROLLA 5D — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140i200110-200404

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200110-200404

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066i200110-200404

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200110-200404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200110-200404

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140i200110-200404

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200205-200404

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066i200110-200404

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200110-200404

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200110-200404

43512DISC, FRONT

main43512-12620×2i200110-200404

main43512-12621×2i200406-200510

main43512-12631×2i200510-200702

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA 5D

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA 5D. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH).
