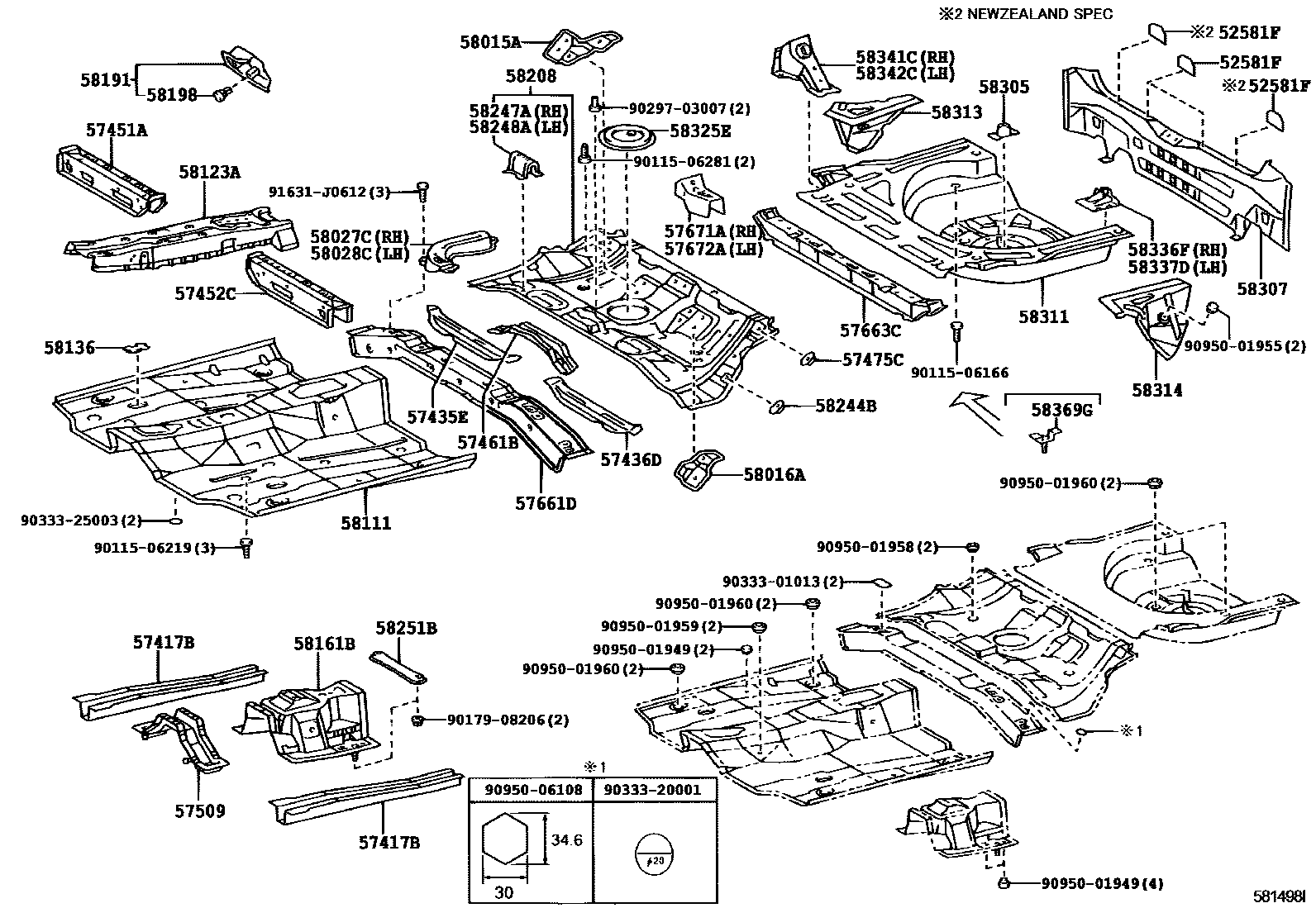

Toyota COROLLA 5D — FLOOR PAN & LOWER BACK PANEL

52581FPROTECTOR, REAR BUMPER

main52581-13030×2iZZE122200404-200702

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-13020iZZE122200110-200404

RH

main57418-13020iZZE122200110-200404

LH

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-12010iZZE122200411-200702

57436DMEMBER, CENTER FLOOR SIDE, LH

main57436-12010iZZE122200411-200702

57451AMEMBER, FRONT FLOOR CROSS, RH

main57051-12020iZZE122200211-200404

main57451-12191iZZE122200110-200211

sub57451-12192

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-12021iZZE122200110-200404

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-12130iZZE122200411-200702

57475CPLATE, FRONT FLOOR CROSSMEMBER

main57475-13020×2iZZE122200110-200404

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12040iZZE122200404-200702

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-13100iZZE122200110-200404

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-13040iZZE122200411-200702

NEWZEALAND SPEC

main57663-13060iZZE122200110-200404

57671ASTAY, REAR FLOOR SIDE MEMBER, RH

main57671-13010iZZE122200411-200702

57672ASTAY, REAR FLOOR SIDE MEMBER, LH

main57672-13010iZZE122200411-200702

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12060iZZE122200411-200702

NEWZEALAND SPEC

main58015-12070iZZE122200404-200702

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-13040iZZE122200110-200404

58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH

main58027-13010iZZE122200110-200404

58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH

main58028-13010iZZE122200110-200404

58111PAN, FRONT FLOOR

main58111-12902iZZE122200110-200209

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12040iZZE122200110-200404

58136COVER, FRONT FLOOR HOLE

main58136-33010×4iZZE122200110-200404

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-12070iZZE122200110-200404

main57805-12140iZZE122200404-200702

58191FOOTREST, FRONT FLOOR

main58191-12120iZZE122200404-200702

58198CLIP, FOOTREST

main58198-20210×2iZZE122200110-200404

main90467-09220×2iZZE122200406-200702

58208PAN, CENTER FLOOR

main58211-13910iZZE122200110-200404

main58211-13912iZZE122200411-200702

NEW ZEALAND SPEC

58244BBRACKET, REAR SEAT CUSHION MOUNTING

main58244-13030×2iZZE122200110-200404

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12070iZZE122200110-200404

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12070iZZE122200110-200404

58251BBRACE, FLOOR PANEL, FRONT

main58251-12030iZZE122200110-200404

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iZZE122200110-200404

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-13150iZZE122200110-200404

main58307-13190iZZE122200411-200702

NEWZEALAND SPEC

58311PAN, REAR FLOOR

main58311-13300iZZE122200411-200702

NEWZEALAND PACKAGE

main58311-13900iZZE122200110-200404

sub58311-13330

sub90950-01958

58313PANEL, REAR FLOOR SIDE, RH

main58313-13150iZZE122200110-200404

main58313-13200iZZE122200411-200702

NEWZEALAND SPEC

58314PANEL, REAR FLOOR SIDE, LH

main58314-13140iZZE122200110-200404

main58314-13170iZZE122200411-200702

NEWZEALAND SPEC

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12110iZZE122200110-200404

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-02060iZZE122200411-200702

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-02010iZZE122200411-200702

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-13040iZZE122200110-200404

main58341-13060iZZE122200411-200702

NEWZEALAND SPEC

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-13040iZZE122200110-200404

main58342-13060iZZE122200411-200702

NEWZEALAND SPEC

58369GBRACKET, FUEL TUBE, NO.3

main58369-12020iZZE122200110-200404

9011506166

main90115-06166

9011506219

main90115-06219

9011506281

main90115-06281

9017908206

main90179-08206

9029703007

main90297-03007

9033301013

main90333-01013

9033320001

main90333-20001

9033325003

main90333-25003

9095001949

main90950-01949

9095001955

main90950-01955

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

9095006108

main90950-06108

91631J0612

main91631-J0612

54 parts on this diagram · 1 diagram in section
