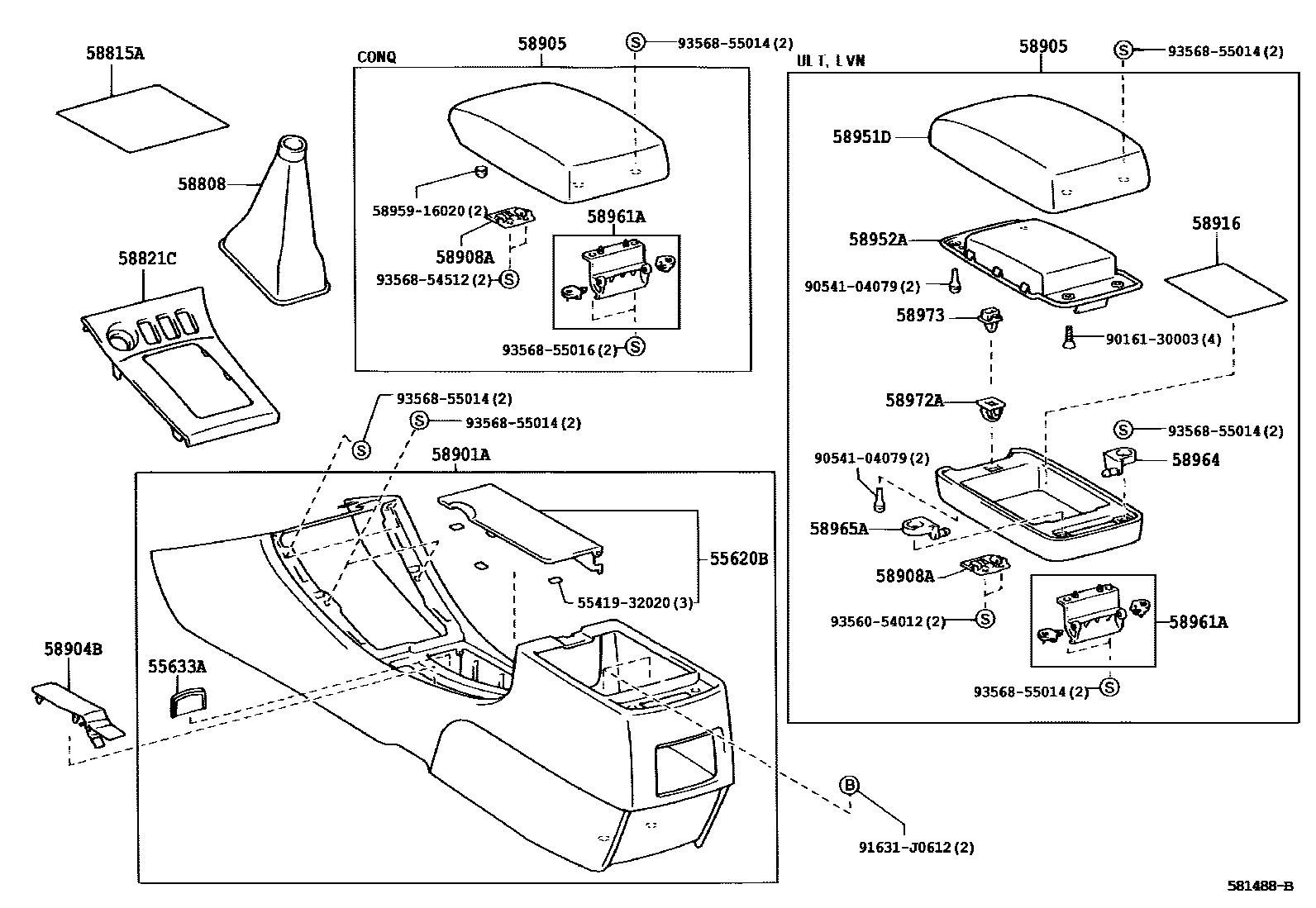

Toyota COROLLA 5D — CONSOLE BOX & BRACKET

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-12090-A0iZZE122..ULT200404-200702

IVORY,TRIM0#

main55620-12090-B1iZZE122..CONQ,LVN200110-200312

DK.GRAY,TRIM1#

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-12090-A0×3iZZE122..ULT200404-200702

IVORY,TRIM0#

main55633-12090-B1×3iZZE122..CONQ,LVN200110-200312

DK.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12180-B0iZZE122..MTM..(CONQ,LVN)200404-200702

DK.GRAY,TRIM1#

main58808-12180-E0iZZE122..MTM..ULT200110-200303

SANDAL WOOD,TRIM01

58815ACARPET, CONSOLE BOX

main58815-12060iZZE122200404-200702

58821CPANEL, CONSOLE, UPPER

main58821-12100-B0iZZE122..CONQ200404-200702

DARK GRAY,TRIM1#

main58821-12100-E0iZZE122..LVN200110-200404

SILVER,TRIM1#

main58821-12110-A0iZZE122..ULT200110-200404

IVORY,TRIM0#

main58821-12110-B0iZZE122..LVN,ULT200404-200702

GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12441-A0iZZE122..ULT200110-200209

IVORY,TRIM0#

main58901-12441-B1iZZE122..CONQ,LVN200110-200209

DK.GRAY,TRIM1#

main58901-12490-A0iZZE122..ULT200404-200702

IVORY,TRIM0#

main58901-12490-B0iZZE122..CONQ,LVN200209-200312

DK.GRAY,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-12050-A0iZZE122..ULT200110-200312

IVORY,TRIM0#

main58904-12050-B1iZZE122..CONQ,LVN200110-200312

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12360-A0iZZE122..ULT200110-200312

IVORY,TRIM0#

sub58905-12500

main58905-12390-B2iZZE122..LVN200404-200702

DK.GRAY,TRIM1#

main58905-12410-B5iZZE122..CONQ200110-200404

DK.GRAY,TRIM1#

main58905-12490-A0iZZE122..ULT200404-200412

IVORY,TRIM0#

sub58905-12500

main58905-12490-B1iZZE122..ULT200412-200702

MD.GRAY,TRIM1#

sub58905-12500

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZZE122200110-200404

58916MAT, BOX BOTTOM

main58916-12080iZZE122..LVN,ULT200110-200404

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-12240-B2iZZE122..LVN200404-200702

DARK GRAY,TRIM1#

main58951-12270-A0iZZE122..ULT200110-200312

IVORY,TRIM0#

main58951-12360-A0iZZE122..ULT200404-200412

IVORY,TRIM0#

main58951-12360-B0iZZE122..ULT200404-200702

MD.GRAY,TRIM1#

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-12060-A3iZZE122..ULT200110-200312

IVORY,TRIM0#

main58952-12060-B6iZZE122..LVN200110-200312

DK.GRAY,TRIM1#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58907-12050iZZE122200110-200404

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040iZZE122..LVN,ULT200110-200404

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050iZZE122..LVN,ULT200110-200404

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010iZZE122..LVN,ULT200110-200404

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iZZE122..LVN,ULT200110-200404

5541932020PLATE, SAFETY PAD

main55419-32020

5895916020ROD, REAR LOCK, HANDLE LATCH

main58959-16020

9016130003

main90161-30003

9054104079

main90541-04079

91631J0612

main91631-J0612

9356054012

main93560-54012

9356854512

main93568-54512

9356855014

main93568-55014

9356855016

main93568-55016

26 parts on this diagram · 1 diagram in section
