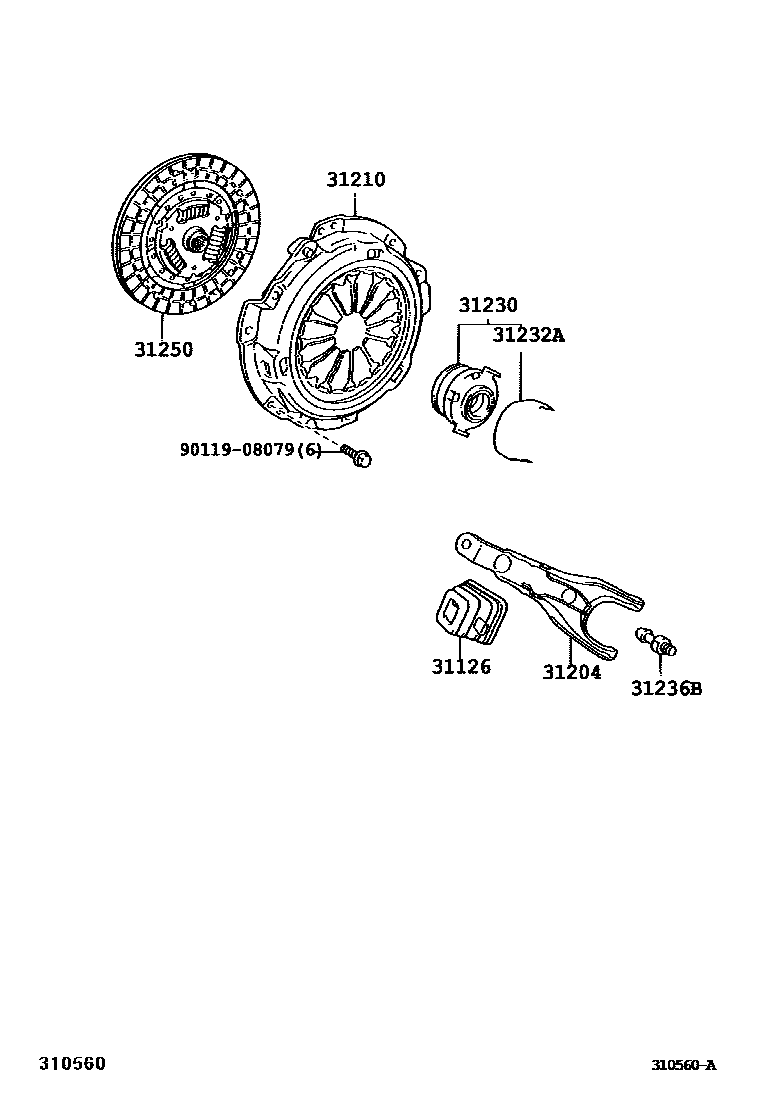

Toyota COROLLA 5D — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZE122..MTM200110-200404

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE122..MTM200110-200404

31210COVER ASSY, CLUTCH

main31210-12221iZZE122..MTM200110-200404

sub31210-12310

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191iZZE122..MTM200110-200404

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZE122..MTM200110-200404

31236BSUPPORT, RELEASE FORK

main31236-12020iZZE122..MTM200110-200404

31250DISC ASSY, CLUTCH

main31250-12360iZZE122..MTM200110-200404

sub31250-12361

main31250-12540iZZE122..MTM200512-200702

sub31250-12361

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
