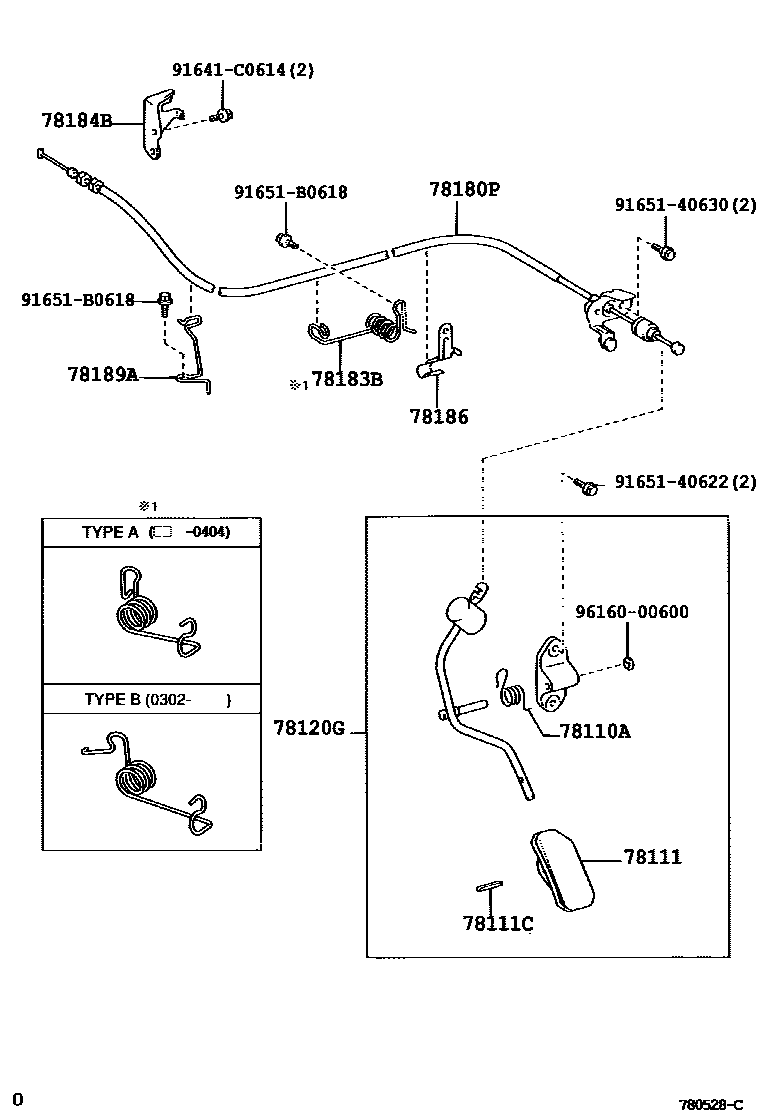

Toyota COROLLA 5D — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03307iZZE122200110-200404

78111PEDAL, ACCELERATOR

main78111-32020iZZE122200110-200404

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iZZE122200110-200404

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12340iZZE122200110-200404

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-13050iZZE122200111-200212

sub78180-13051

main78180-1A751iZZE122200212-200404

sub78180-1A752

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12240iZZE122200110-200302

main78183-13010iZZE122200302-200404

TYPE B:REFER TO ILLUSTRATION

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360iZZE122200110-200404

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12370iZZE122200110-200404

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100iZZE122200110-200404

91641C0614

main91641-C0614

9165140622

main91651-40622

9165140630

main91651-40630

91651B0618

main91651-B0618

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section
