Toyota COROLLA 5D — ABS & VSC

89516WIRE, SKID CONTROL SENSOR

main89516-12010i200110-200404

main89516-12020i200110-200404

89542SENSOR, SPEED, FRONT RH

main89542-12070i200110-200404

89543SENSOR, SPEED, FRONT LH

main89543-12070i200110-200404

89544SENSOR, SKID CONTROL

main89544-12010×2i200110-200404

KOYO,*369

main89544-12020×2i200110-200404

NSK,*369

9162160614

main91621-60614

91621J0614

main91621-J0614

91671A0614

main91671-A0614

91671A0616

main91671-A0616

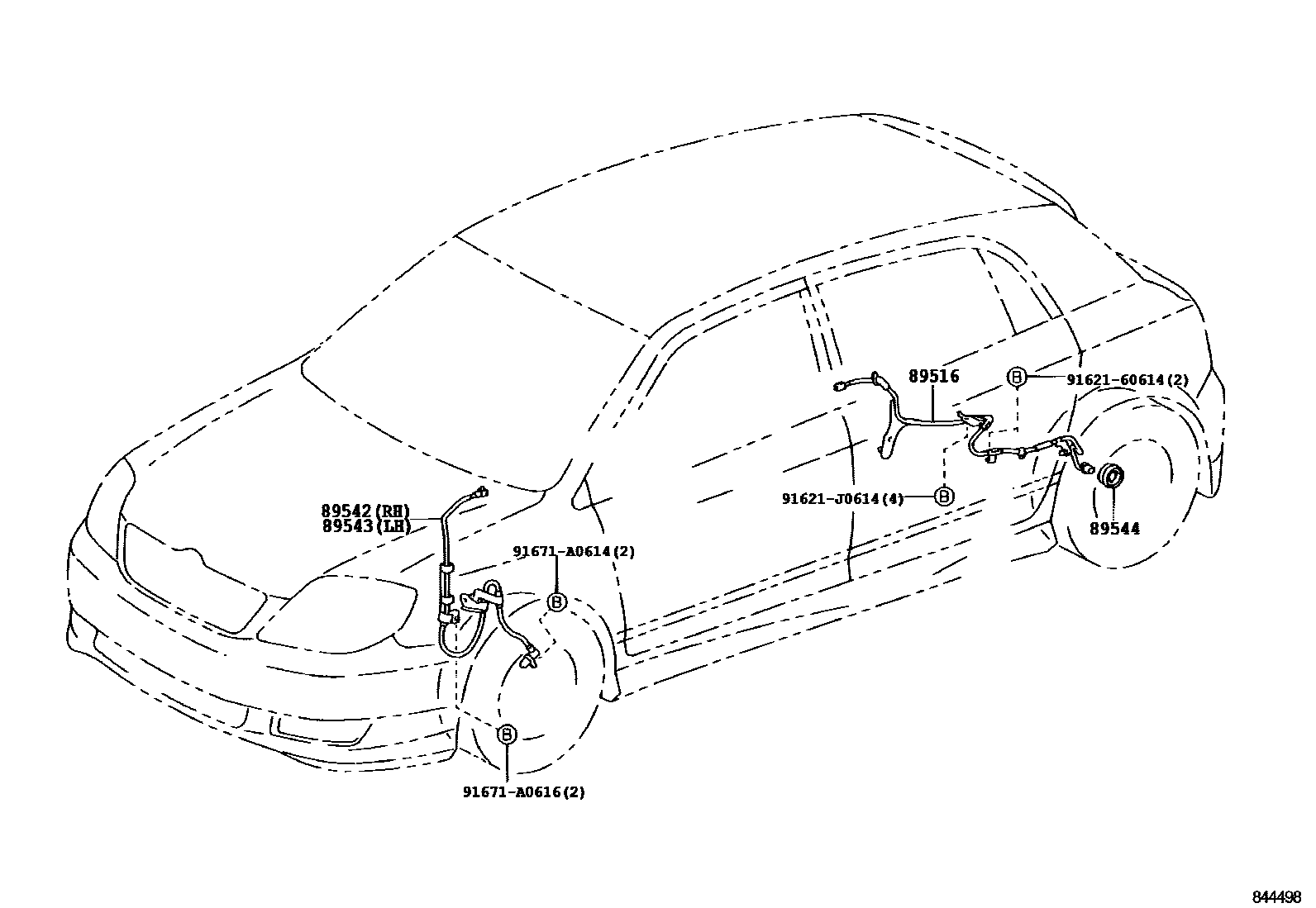

8 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA 5D

This section contains 8 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA 5D. Key components include: WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL.
