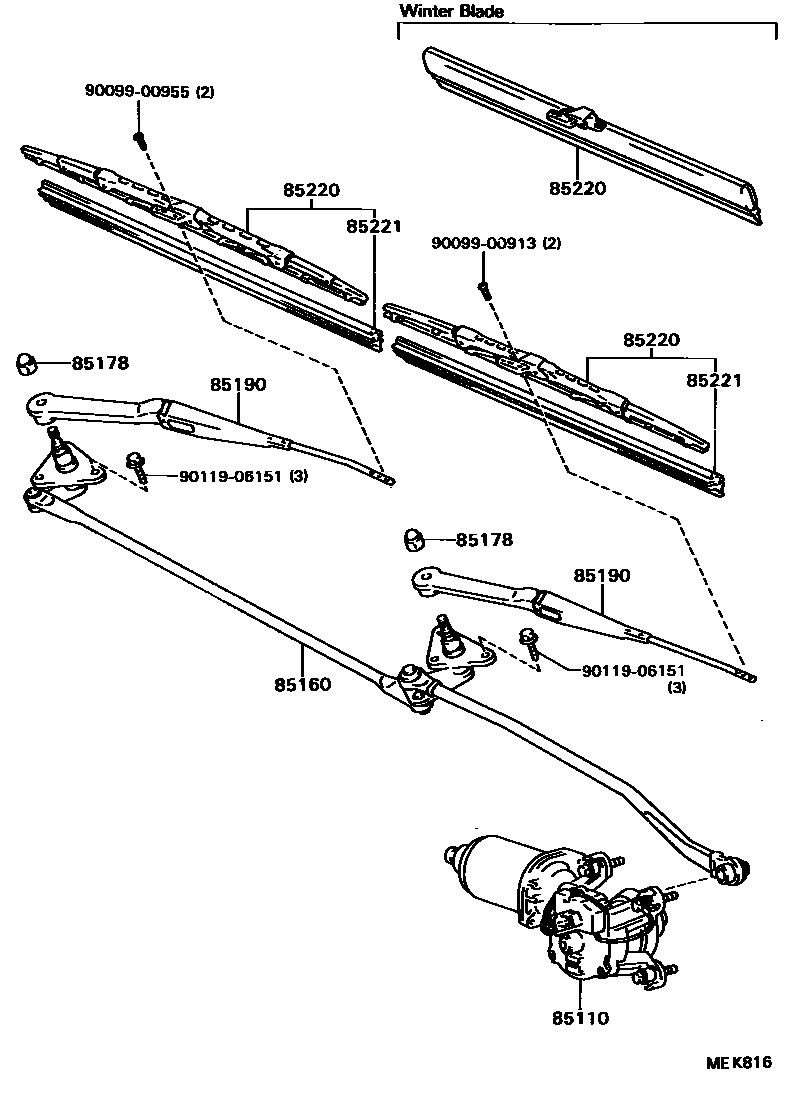

Toyota COROLLA 2 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16330iEL3#,NL30..CBR,EFI,TD198805-198903

main85110-16331iEL3#,NL30..CBR,EFI,TD198903-199009

main85110-16340iEL31..TBO198805-198903

main85110-16341iEL31..TBO198903-199009

main85110-16351iEL3#,NL30..CBR,EFI,TD198808-199009

main85110-16361iEL31..TBO198808-199009

85160LINK ASSY, WINDSHIELD WIPER

main85160-16220iEL3#,NL30198805-199009

main85160-16230iEL3#,NL30198805-199009

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iEL3#,NL30198805-198808

main90176-08040×2iEL3#,NL30198808-199009

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-16160iEL3#,NL30198805-198912

main85190-16161iEL3#,NL30198912-199009

main85210-16030iEL3#,NL30198805-198912

main85210-16031iEL3#,NL30198912-199009

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iEL3#,NL30198805-198912

main85220-16321iEL3#,NL30198912-199009

sub85222-12700

main85220-16580iEL3#,NL30198805-199003

main85220-32310iEL3#,NL30198805-198912

main85220-32311iEL3#,NL30198912-199009

sub85212-23040

main85220-32560iEL3#,NL30198805-199003

main85291-16010iEL3#,NL30199003-199009

main85291-32020iEL3#,NL30199003-199009

85221BLADE, WINDSHIELD WIPER

main85221-30110iEL3#,NL30198805-199009

sub85221-30130

main85221-30120iEL3#,NL30198805-199009

sub85221-40040

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
