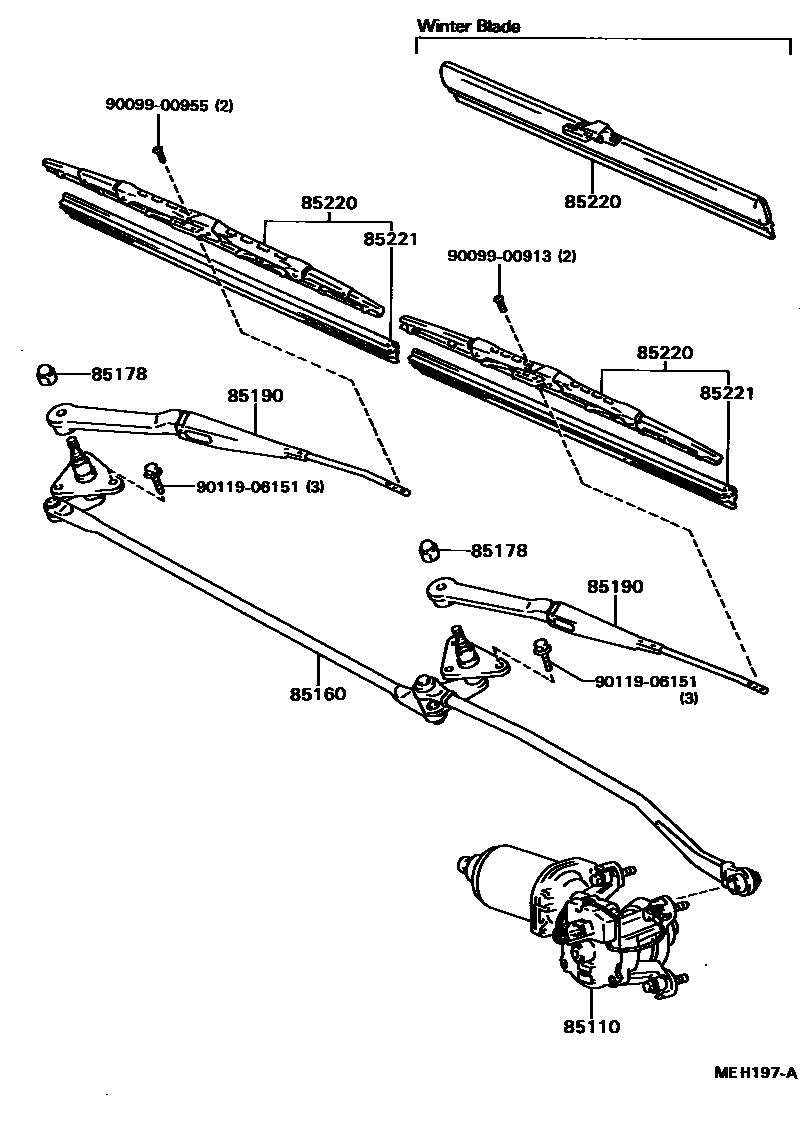

Toyota COROLLA 2 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16230iEL3#,NL30..CBR,TD198605-198801

main85110-16231iEL3#,NL30..CBR,TD198801-198805

sub85110-16351

main85110-16240iEL31..TBO198609-198801

main85110-16241iEL31..TBO198801-198805

sub85110-16361

main85110-16310iEL3#,NL30..CBR,TD198605-198801

COLD SPEC

main85110-16311iEL3#,NL30..CBR,TD198801-198805

COLD SPEC

sub85110-16351

main85110-16320iEL31..TBO198609-198801

COLD SPEC

main85110-16321iEL31..TBO198801-198805

COLD SPEC

sub85110-16361

85160LINK ASSY, WINDSHIELD WIPER

main85160-16180iEL3#,NL30198605-198805

main85160-16210iEL3#,NL30198605-198805

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iEL3#,NL30198605-198805

85190ARM ASSY, WINDSHIELD WIPER

main85190-16160iEL3#,NL30198605-198805

RH

sub85190-16161

main85210-16030iEL3#,NL30198605-198805

LH

sub85210-16031

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iEL3#,NL30198605-198805

LH

sub85220-16321

main85220-16580iEL3#,NL30198605-198805

LH,WINTER BLADE

sub85291-16010

main85220-32310iEL3#,NL30198605-198805

RH

sub85220-32311

main85220-32560iEL3#,NL30198605-198805

RH,WINTER BLADE

sub85291-32020

85221BLADE, WINDSHIELD WIPER

main85221-30110iEL3#,NL30198605-198805

RH

sub85221-30130

main85221-30120iEL3#,NL30198605-198805

LH

sub85221-40040

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
