Toyota COROLLA 2 — WINDSHIELD WASHER

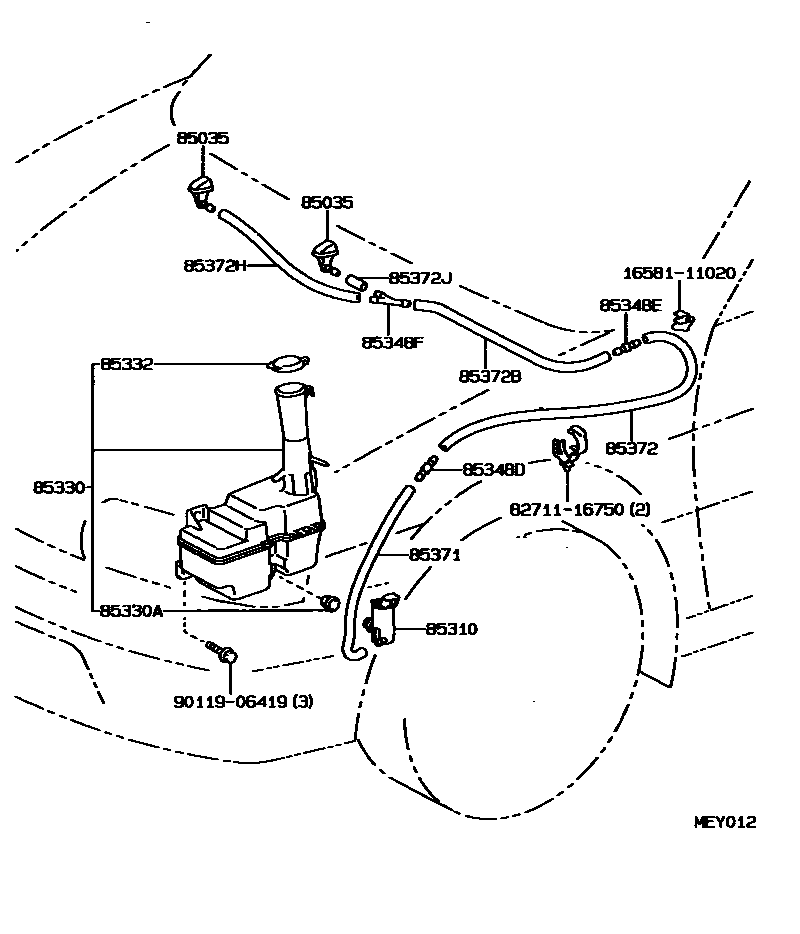

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-30020i199712

main85381-30020-C1i199409-199712

BLACK,TRIM1#

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210i199409-199608

main85330-10280i199608

main85330-10290i199608

main85330-12280i199409-199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070i199409

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199409

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i199409-199608

main85316-33050i199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-89122i199409

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122i199409

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85348-14390i199409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i199409

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i199409

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199409

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199412

main90099-33080i199409-199412

main90099-33299i199409-199412

main90099-33299i199412

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i199409

main90099-33299i199409

1658111020CLAMP, HOSE(FOR WATER HOSE)

main16581-11020

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

9011906419

main90119-06419

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA 2

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA 2. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
