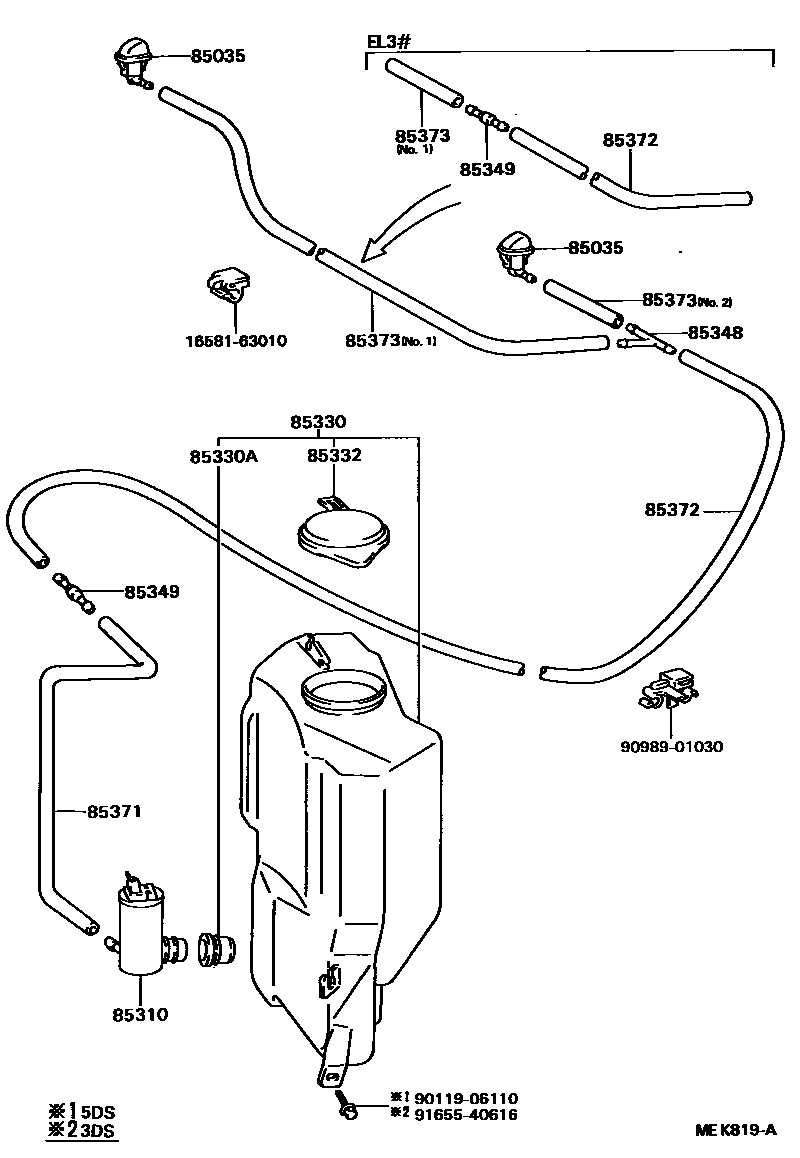

Toyota COROLLA 2 — WINDSHIELD WASHER

0001 1 0002 1W(RR WIPER)

85035NOZZLE SUB-ASSY, WASHER

main85035-16070×2iEL3#,NL30198805-199009

sub85381-30020

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iEL3#,NL30198805-199009

85330JAR ASSY, WINDSHIELD WASHER

main85331-16230iEL30,NL30..CD,TX198805-198905

main85331-16240iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-198906

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL3#,NL30198805-199009

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iEL3#,NL30198805-199009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iEL3#,NL30198805-199009

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2iEL3#198805-199009

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iEL30,NL30..5DS..TX198906-199009

main90446-07001iEL30,NL30..5DS..TX198906-199009

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85343-16140iEL3#,NL30198810-199009

main90099-33080iEL3#,NL30198805-198810

main90446-06013iEL3#198805-199009

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNL30198805-199009

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

9011906110

main90119-06110

9098901030

main90989-01030

9165540616

main91655-40616

14 parts on this diagram · 2 diagrams in section
