Toyota COROLLA 2 — VACUUM PUMP

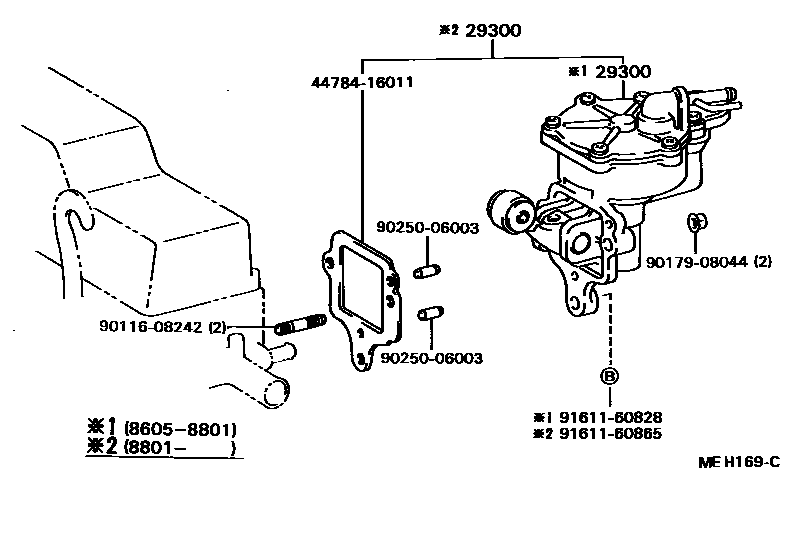

Parts diagram

29300PUMP ASSY, VACUUM

main29300-55012i198605-198801

main29300-59015i198801-198805

4478416011GASKET, CONTROL VALVE

main44784-16011

9011608242

main90116-08242

9017908044

main90179-08044

9025006003

main90250-06003

9161160828

main91611-60828

9161160865

main91611-60865

7 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota COROLLA 2

This section contains 7 genuine Toyota parts for the VACUUM PUMP system of the Toyota COROLLA 2. Key components include: PUMP ASSY, VACUUM, GASKET, CONTROL VALVE.
