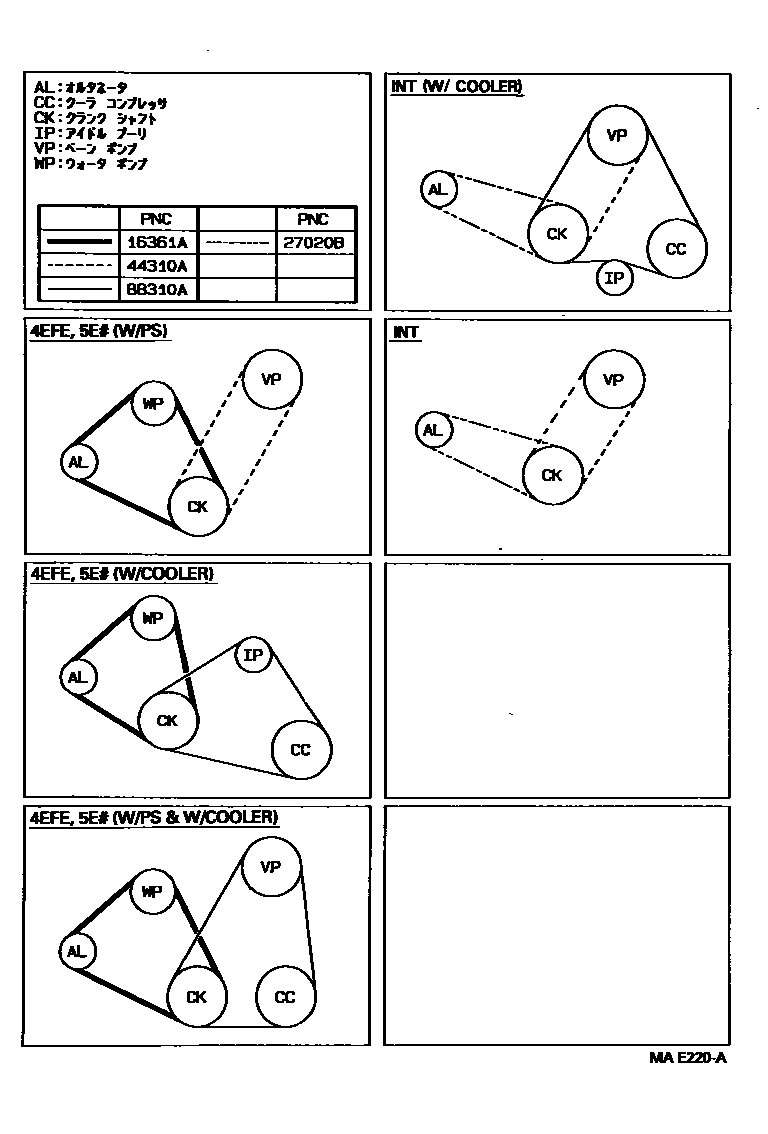

Toyota COROLLA 2 — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02341i4EFE,5EF#..EL4#199009-199409

sub99364-20820

27020BBELT, V(FOR ALTERNATOR)

main90916-02273i1NT..NL40199009-199409

44310ABELT, V(FOR VANE PUMP)

main99364-00930iEL41..LIM,WIN199208-199409

sub99364-80930

main99364-00930iEL41199009-199208

sub99364-80930

main99364-00940iEL43,45199009-199409

sub99364-20940

main99365-50870iNL40199009-199409

sub99365-20870

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02200iEL41..3FC..TX199009-199104

sub90916-02364

main90916-02364iEL41..3FC..TX199208-199308

main90916-02364iEL41..3FC..TX199104-199208

main99364-00850iEL41..4F..TX199009-199104

sub99364-20850

main99364-01090iEL4#..(4F,4FC,5F)..(LIM,SR,WIN,ZS)199009-199104

sub99364-21090

main99364-01100iEL41..3FC..(LIM,WIN)199009-199104

sub99364-81100

main99364-20850iEL41..3FC..TX199208-199409

sub99364-30850

main99364-20850iEL41..4F..TX199104-199208

sub99364-30850

main99364-21070iEL41..4F..TX199208-199409

sub99364-81070

main99364-21070iEL41..4F..TX199208-199409

sub99364-81070

main99364-21080iEL41..3FC..(LIM,WIN)199308-199409

sub99364-81080

main99364-21080iEL41..3FC..TX199308-199409

sub99364-81080

main99364-21080iEL41..3FC..TX199208-199409

sub99364-81080

main99364-21080iEL41..3FC..TX199201-199208

sub99364-81080

main99364-21080iEL41..3FC..TX199208-199409

sub99364-81080

main99364-21080iEL41..3FC..(LIM,WIN)199201-199308

sub99364-81080

main99364-21080iEL41..3FC..TX199208-199308

sub99364-81080

main99364-21090iEL43,45199104-199208

main99364-21090iEL4#..(4F,4FC,5F)..(LIM,SR,WIN,ZS)199104-199201

main99364-21090iEL43,45199208-199409

main99364-71070iEL41..4F..TX199201-199208

sub99364-81070

main99364-71070iEL41..4F..TX199208-199308

sub99364-81070

main99364-71070iEL41..4F..TX199208-199308

sub99364-81070

main99364-71090iEL43,45199208-199308

sub99364-81090

main99364-71100iEL41..3FC..TX199405-199409

sub99364-81100

main99364-71100iEL41..3FC..(LIM,WIN)199104-199201

sub99364-81100

main99364-71100iEL41..3FC..(LIM,WIN)199104-199201

sub99364-81100

main99364-71100iEL41..3FC..TX199405-199409

sub99364-81100

main99364-80840iEL41..4F..TX199308-199409

sub99364-90840

main99364-81070iEL41..4F..TX199308-199409

main99364-81070iEL41..4F..TX199308-199409

main99364-81080iEL41..3FC..TX199308-199409

sub99364-91080

main99364-81080iEL41..3FC..TX199308-199409

sub99364-91080

main99364-81080iEL41..3FC..TX199308-199409

sub99364-91080

main99364-81080iEL41..3FC..TX199308-199409

sub99364-91080

main99364-81090iEL43,45199308-199409

sub99364-21090

main99365-20970iNL40..4FC199009-199409

main99365-20980iNL40..5F199009-199409

4 parts on this diagram · 1 diagram in section
