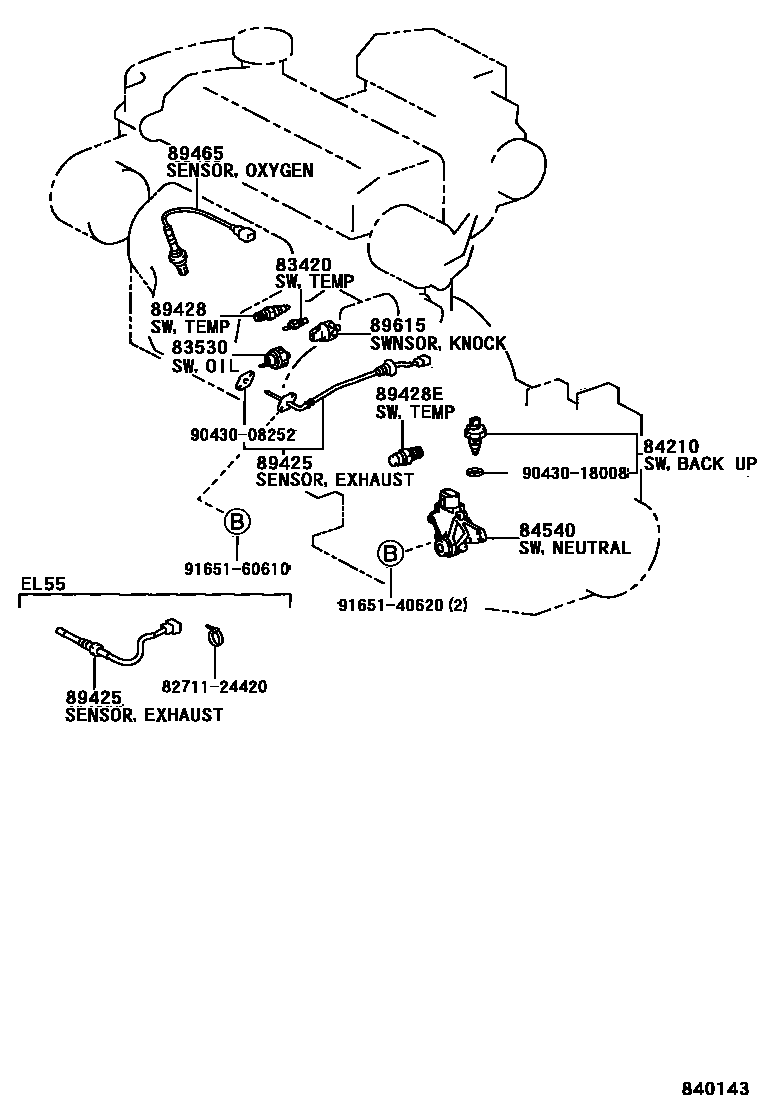

Toyota COROLLA 2 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1��(�������) 0007 1��(�������) 0008 1W/O(�������) 0009 1 0010 1 0011 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL5#199409-199705

main83420-16050iNL50199409-199411

main83420-20040iNL50199411

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iNL50199409-199803

main83530-14060iEL5#199409-199411

main83530-28020iEL5#199803

main83530-28030iNL50199803

main83530-30090iEL5#199411-199803

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL5#,NL50..MTM199409

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEL5#,NL50..ATM199409

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12280iEL55199409-199708

main89425-19545iEL51,53199409-199708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL5#199409

main89428-16040iNL50199409

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12140iEL55..4FC199409

89465SENSOR, OXYGEN

main89465-10060iEL5#199712

main89465-16040iEL5#199409-199608

89615SENSOR, KNOCK CONTROL

main89615-22030iEL5#199409

main89615-22040iEL5#199409

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9043008252

main90430-08252

9043018008

main90430-18008

9165140620

main91651-40620

9165160610

main91651-60610

14 parts on this diagram · 11 diagrams in section
