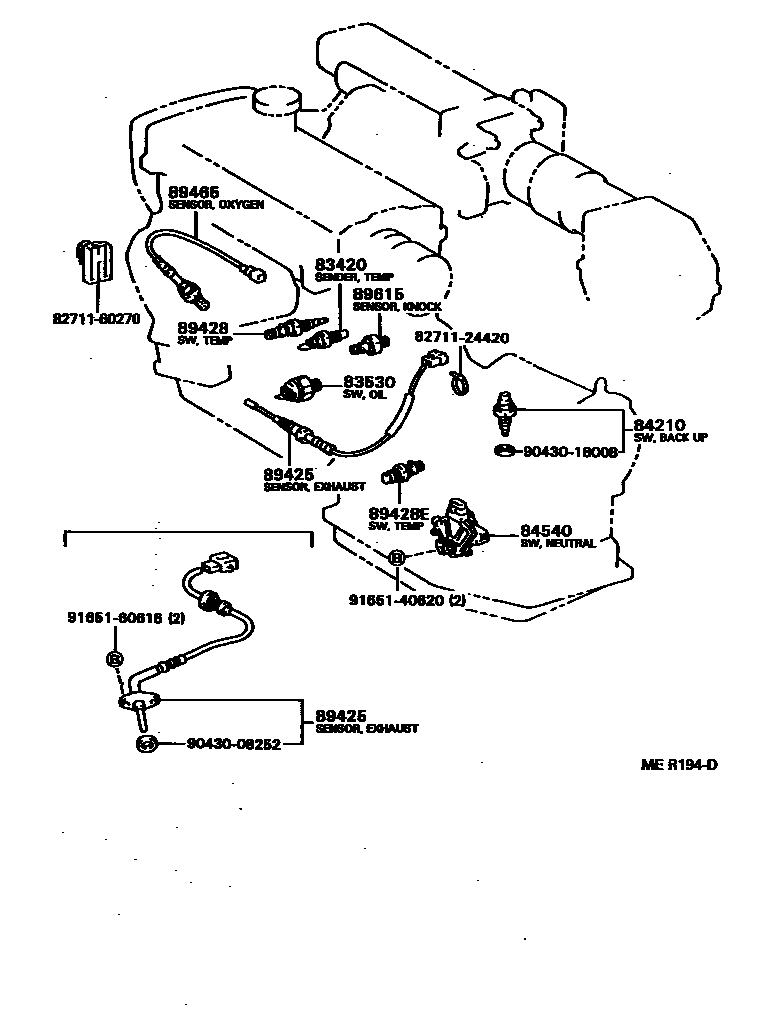

Toyota COROLLA 2 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL4#,NL40199009-199409

main83420-16050iNL40199208-199409

sub83420-20040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iNL40199009-199409

sub83530-28030

main83530-14060iEL4#199208-199409

sub83530-30090

main83530-30080iEL4#199009-199208

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL4#,NL40..MTM199009-199409

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16040iEL4#,NL40..ATM199009-199409

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12210iEL4#..EFI199105-199109

sub89425-32090

main89425-12250iEL4#..EFI199009-199105

main89425-12250iEL4#..EFI199105-199208

main89425-12280iEL45199111-199409

main89425-19435iEL43..EFIS199009-199208

main89425-19495iEL41,43199208-199409

main89425-20190iEL41199111-199409

sub89425-43010

main89425-32090iEL4#..EFI199109-199208

sub89425-32110

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iNL40..5F199009-199208

main89428-10110iNL40..5F199009-199208

main89428-12160iEL4#199208-199409

main89428-16040iNL40..5F199208-199409

main89428-20060iEL4#199009-199208

main89429-16010iNL40..4FC199009-199208

main89429-33010iNL40..4FC199208-199409

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12100iEL45..4FC199009-199208

main89428-12140iEL45..4FC199208-199409

89465SENSOR, OXYGEN

main89465-10020iEL4#199009-199409

89615SENSOR, KNOCK CONTROL

main89615-22030iEL43..EFIS199106-199409

MATSUSHITA

main89615-22040iEL43..EFIS199106-199409

NIPPON DENSO

main89615-35040iEL43..EFIS199009-199106

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

8271160270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60270

9043008252

main90430-08252

9043018008

main90430-18008

9165140620

main91651-40620

9165160616

main91651-60616

15 parts on this diagram · 10 diagrams in section
