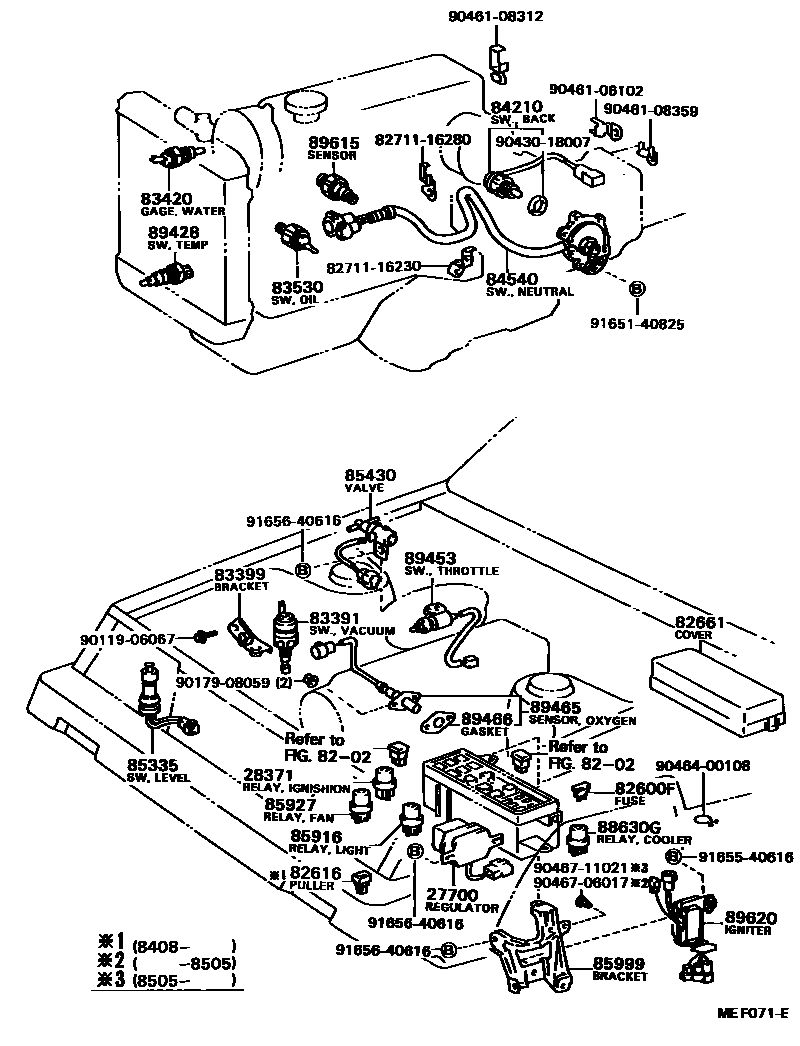

Toyota COROLLA 2 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-15020i2AU,3A#..AL2#198205-198604

28371RELAY, IGNITION, NO.1

main90987-02002i2AU,3A#..AL2#198205-198408

main90987-02004i2AU,3A#..AL2#198408-198604

8202

82600FFUSE, FUSE BLOCK

main90982-07011iAL2#198205-198604

main90982-09002iAL2#198205-198604

main90982-09003×8iAL2#198205-198604

main90982-09004×2iAL2#198205-198604

main90982-09005×8iAL2#198205-198604

82616PULLER, FUSE

main82616-12010iAL2#198205-198604

82661COVER, RELAY BLOCK, NO.1

main82661-16060iAL2#198205-198408

main82661-16100iAL2#198408-198604

83391SWITCH, VACUUM

main83391-16030iAL2#198205-198604

83399BRACKET, VACUUM SWITCH

main83399-16030iAL21..3ASU198408-198604

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAL2#198205-198408

main83420-20020iAL2#198408-198604

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAL2#198205-198502

main83530-14040iAL2#198502-198511

main83530-30080iAL2#198511-198604

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-16010iAL2#..MTM198205-198408

main84210-16030iAL2#..MTM198408-198604

84540SWITCH ASSY, NEUTRAL START

main84540-16020iAL2#..3FC198205-198604

85335SWITCH ASSY, WASHER LEVEL WARNING

main85335-16220iAL21..3ASU198408-198604

main85335-22020iAL21..3FC198408-198604

85430VALVE, OUTER VENT CONTROL

main85430-16030iAL21..3ASU198408-198604

85916RELAY, LIGHT CONTROL

main90987-01003×2iAL2#198205-198408

main90987-02002iAL2#198408-198604

TAIL LAMP

main90987-02006iAL2#198408-198604

HEAD LAMP

85927RELAY, COOLING FAN

main90987-03001iAL2#198205-198604

85999BRACKET, COMBINATION RELAY

main85999-16030iAL2#198205-198604

88630GRELAY ASSY, COOLER

main90987-01003iAL2#198205-198408

main90987-02004iAL2#198408-198604

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15030iAL2#198205-198604

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iAL2#198205-198604

89465SENSOR, OXYGEN

main89465-19065iAL2#..3FC,4F198408-198604

sub89465-19066

main89465-19075iAL21..3ASU198408-198604

sub89465-19076

main89465-29085iAL2#198205-198408

89466GASKET, OXYGEN SENSOR

main89466-30010iAL21..3AHU;AL21..3FC..SR;AL2#..CTD,DLX,GL,SE198205-198604

sub89466-20020

main89466-32010iAL21..3ASU198408-198604

sub89466-30030

89615SENSOR, KNOCK CONTROL

main89615-16010iAL20..4F..DLX198205-198408

W/KNOCK CONTROL

89620IGNITER ASSY

main89620-16090iAL20..4F..DLX198205-198408

W/KNOCK CONTROL

8271116230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16230

8271116280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16280

9011906067

main90119-06067

9017908059

main90179-08059

9043018007

main90430-18007

9046106102

main90461-06102

9046108312

main90461-08312

9046108359

main90461-08359

9046400108

main90464-00108

9046706017

main90467-06017

9046711021

main90467-11021

9165140825

main91651-40825

9165540616

main91655-40616

9165640616

main91656-40616

38 parts on this diagram · 4 diagrams in section
