Toyota COROLLA 2 — STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 1.4KW 0004 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i2E,3E#..EL3#198805-199009

12V 0.8KW

main28011-26042i2E,3E#..EL3#198805-199009

12V 1.0KW

main28011-55010i1NT..NL30198805-199009

12V 1.4KW

main28011-55020i1NT..NL30198805-199009

12V 2.0KW

28100STARTER ASSY

main28100-10030i2E,3E#..EL3#..3FC,4F,5F198805-199009

sub28100-11010

main28100-10040i2E,3E#..EL3#..3FC,4F,5F198805-199009

main28100-10050i3E#..EL31..4FC198805-199009

main28100-10060i3E#..EL31..4FC198805-199009

main28100-55010i1NT..NL30198805-199009

main28100-55020i1NT..NL30198805-199009

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i2E,3E#..EL3#..3FC,4F,5F198805-199009

12V 0.8KW

main28110-10040i2E,3E#..EL3#..3FC,4F,5F198805-199009

12V 1.0KW

main28110-10050i3E#..EL31..4FC198805-199009

12V 0.8KW

main28110-10060i3E#..EL31..4FC198805-199009

12V 1.0KW

main28110-55010i1NT..NL30198805-199009

12V 1.4KW

main28115-55020i1NT..NL30198805-199009

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i2E,3E#..EL3#198805-199009

28113LEVER, STARTER PINION DRIVE

main28113-15011i2E,3E#..EL3#198805-199009

28119COVER, STARTER END FRAME

main28119-54070i1NT..NL30198805-198806

12V 2.0KW

main28199-72020i1NT..NL30198805-199009

12V 1.4KW

main28199-77090i2E,3E#..EL3#198805-199009

28120YOKE ASSY, STARTER

main28120-15010i2E,3E#..EL3#198805-199009

12V 0.8KW

main28120-15090i1NT..NL30198805-199009

12V 1.4KW

main28120-26071i2E,3E#..EL3#198805-199009

12V 1.0KW

main28120-64020i1NT..NL30198805-199009

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i2E,3E#..EL3#198805-199009

12V 1.0KW

main28130-37010i2E,3E#..EL3#198805-199009

12V 0.8KW

main28130-55010i1NT..NL30198805-199009

28131BUSH, COMMUTATOR END FRAME

main90099-10134i2E,3E#..EL3#198805-199009

28133COVER, BEARING(FOR END FRAME)

main28132-15010i2E,3E#..EL3#198805-199009

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i2E,3E#..EL3#198805-199009

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i2E,3E#..EL3#198805-199009

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i2E,3E#..EL3#198805-199009

12V 0.8KW

main28140-15090i1NT..NL30198805-199009

12V 1.4KW

main28140-26070i2E,3E#..EL3#198805-199009

12V 1.0KW

main28140-54070i1NT..NL30198805-199009

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34080i2E,3E#..EL3#198805-199009

12V 1.0KW

main28150-37010i2E,3E#..EL3#198805-199009

12V 0.8KW

sub28150-37011

main28150-55010i1NT..NL30198805-199009

12V 1.4KW

main28150-55020i1NT..NL30198805-199009

12V 2.0KW

28160ARMATURE ASSY, STARTER

main28160-15010i2E,3E#..EL3#198805-199009

12V 0.8KW

main28160-15090i1NT..NL30198805-198908

12V 1.4KW

main28160-15091i1NT..NL30198908-199009

12V 1.4KW

main28160-26070i2E,3E#..EL3#198805-198908

12V 1.0KW

main28160-26071i2E,3E#..EL3#198908-199009

12V 1.0KW

main28160-54070i1NT..NL30198805-199009

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i2E,3E#..EL3#198805-199009

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2E,3E#..EL3#198805-199009

9009900926

main90099-00926

9009904921

main90099-04921

9009905178

main90099-05178

9009907047

main90099-07047

9009912405

main90099-12405

9017908146

main90179-08146

9161161045

main91611-61045

9161161060

main91611-61060

9411040800

main94110-40800

9451100800

main94511-00800

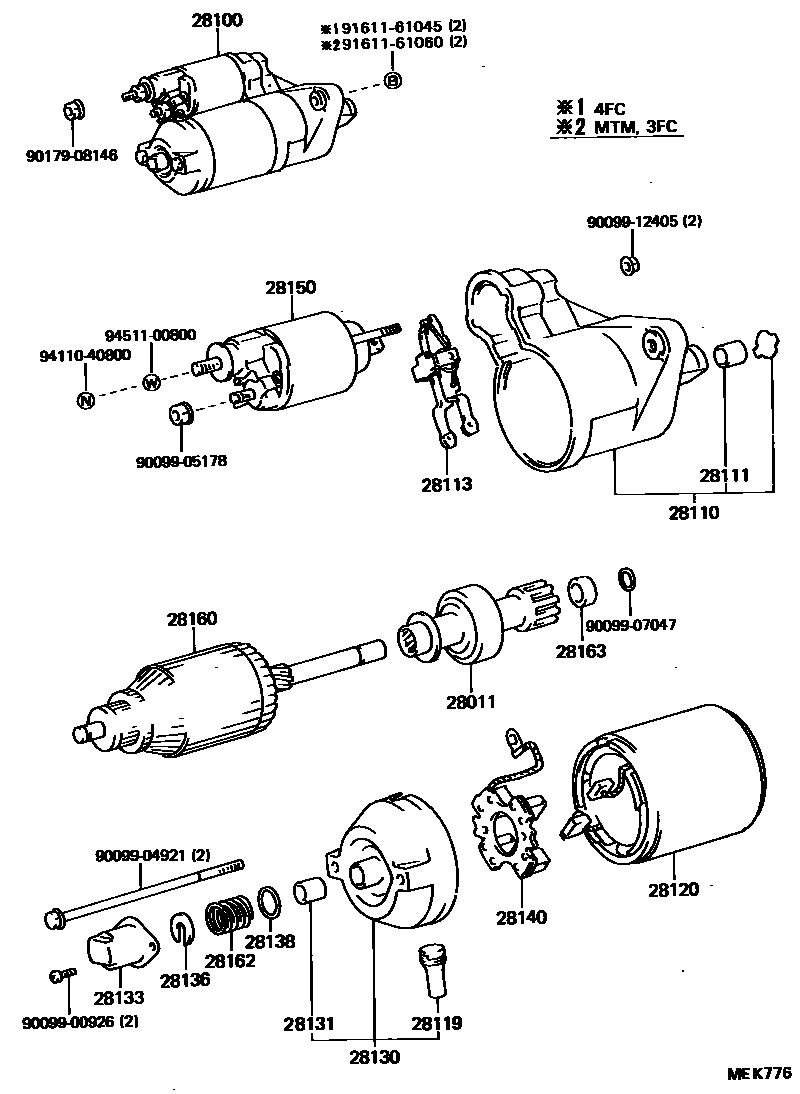

27 parts on this diagram · 4 diagrams in section
