Toyota COROLLA 2 — SIDE MOULDING

68211ACLIP, DOOR BELT MOULDING

main68212-16010×14i199009-199208

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75505-16010i199009-199409

main75551-16210i199009-199409

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75506-16010i199009-199409

main75552-16210i199009-199409

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-16390-01i199009-199104

BLACK,179 ,8J1

main75611-16390-03i199009-199104

GRAY,040 ,570 ,6L6 ,924

main75611-16390-06i199009-199104

SEPIA BROWN,3E5

main75611-16391-10i199104-199208

GRAY,040 ,570 ,6L6 ,924

main75611-16391-20i199104-199208

BLACK,179 ,8J1

main75611-16391-40i199104-199208

SEPIA BROWN,3E5

main75611-16391-B0i199208-199409

LIGHT GRAY,040 ,569

main75611-16391-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75611-16391-E0i199208-199409

SEPIA BROWN,3E5

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-16380-01i199009-199104

BLACK,179 ,8J1

main75612-16380-03i199009-199104

GRAY,040 ,570 ,6L6 ,924

main75612-16380-06i199009-199104

SEPIA BROWN,3E5

main75612-16381-10i199104-199208

GRAY,040 ,570 ,6L6 ,924

main75612-16381-20i199104-199208

BLACK,179 ,8J1

main75612-16381-40i199104-199208

SEPIA BROWN,3E5

main75612-16381-B0i199208-199409

LIGHT GRAY,040 ,569

main75612-16381-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75612-16381-E0i199208-199409

SEPIA BROWN,3E5

75651MOULDING, QUARTER, OUTSIDE RH

main75651-16390-01i199009-199104

BLACK,179 ,8J1

main75651-16390-03i199009-199104

GRAY,040 ,570 ,6L6 ,924

main75651-16390-06i199009-199104

SEPIA BROWN,3E5

main75651-16391-10i199104-199208

GRAY,040 ,570 ,6L6 ,924

main75651-16391-20i199104-199208

BLACK,179 ,8J1

main75651-16391-40i199104-199208

SEPIA BROWN,3E5

main75651-16391-B0i199208-199409

LIGHT GRAY,040 ,569

main75651-16391-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75651-16391-E0i199208-199409

SEPIA BROWN,3E5

75652MOULDING, QUARTER, OUTSIDE LH

main75652-16370-01i199009-199104

BLACK,179 ,8J1

main75652-16370-03i199009-199104

GRAY,040 ,570 ,6L6 ,924

main75652-16370-06i199009-199104

SEPIA BROWN,3E5

main75652-16371-10i199104-199208

GRAY,040 ,570 ,6L6 ,924

main75652-16371-20i199104-199208

BLACK,179 ,8J1

main75652-16371-40i199104-199208

SEPIA BROWN,3E5

main75652-16371-B0i199208-199409

LIGHT GRAY,040 ,569

main75652-16371-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75652-16371-E0i199208-199409

SEPIA BROWN,3E5

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75654-16220-01i199009-199208

BLACK,179 ,8J1

main75654-16220-03i199009-199208

GRAY,040 ,570 ,6L6 ,924

main75654-16220-06i199009-199208

SEPIA BROWN,3E5

main75654-16220-B0i199208-199409

LIGHT GRAY,040 ,569

main75654-16220-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75654-16220-E0i199208-199409

SEPIA BROWN,3E5

75671MOULDING, QUARTER BELT, RH

main75660-16120i199009-199208

75672MOULDING, QUARTER BELT, LH

main75670-16120i199009-199208

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-16140i199009-199208

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-16140i199009-199208

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-16690-01i199009-199104

BLACK,179 ,8J1

main75731-16690-03i199009-199104

GRAY,040 ,570 ,6L6 ,924

main75731-16690-06i199009-199104

SEPIA BROWN,3E5

main75731-16691-10i199104-199208

GRAY,040 ,570 ,6L6 ,924

main75731-16691-20i199104-199208

BLACK,179 ,8J1

main75731-16691-40i199104-199208

SEPIA BROWN,3E5

main75731-16691-B0i199208-199409

LIGHT GRAY,040 ,569

main75731-16691-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75731-16691-E0i199208-199409

SEPIA BROWN,3E5

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-16690-01i199009-199104

BLACK,179 ,8J1

main75732-16690-03i199009-199104

GRAY,040 ,570 ,6L6 ,924

main75732-16690-06i199009-199104

SEPIA BROWN,3E5

main75732-16691-10i199104-199208

GRAY,040 ,570 ,6L6 ,924

main75732-16691-20i199104-199208

BLACK,179 ,8J1

main75732-16691-40i199104-199208

SEPIA BROWN,3E5

main75732-16691-B0i199208-199409

LIGHT GRAY,040 ,569

main75732-16691-C0i199208-199409

BLACK,183 ,6M9 ,6N1 ,924

main75732-16691-E0i199208-199409

SEPIA BROWN,3E5

9016740042

main90167-40042

9018904151

main90189-04151

9033320001

main90333-20001

9043005188

main90430-05188

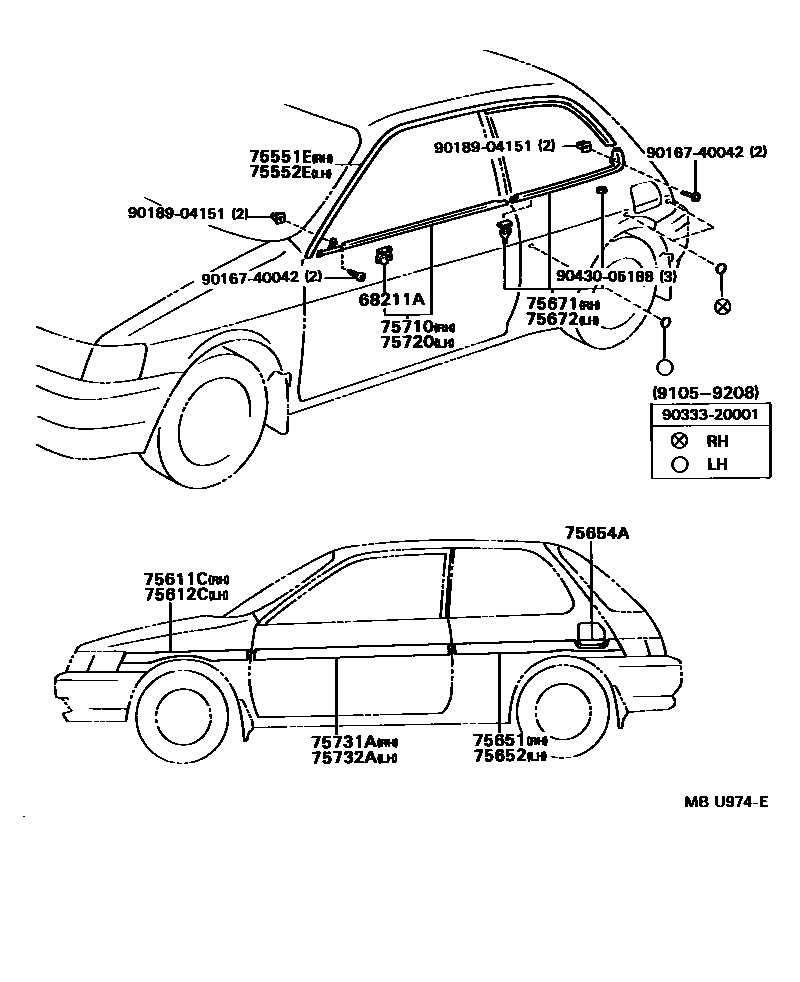

18 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota COROLLA 2

This section contains 18 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA 2. Key components include: CLIP, DOOR BELT MOULDING, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, FRONT FENDER, OUTSIDE RH, MOULDING, FRONT FENDER, OUTSIDE LH.
