Toyota COROLLA 2 — SIDE MOULDING
68211ACLIP, DOOR BELT MOULDING
main68211-16010×14iEL3#,NL30..5DS..(LIM,ZX); EL3#..3DS..(AR,GP,LIM,SRI,ZX); EL30,NL30..3DS..GL; EL30,NL30..5DS..GL198805-199009
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75611CMOULDING, FRONT FENDER, OUTSIDE RH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041; SUPER LIME,WHITE,041
75612CMOULDING, FRONT FENDER, OUTSIDE LH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041; SUPER LIME,WHITE,041
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041; SUPER LIME,WHITE,041
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041; SUPER LIME,WHITE,041
75651MOULDING, QUARTER, OUTSIDE RH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME,WHITE,041
75652MOULDING, QUARTER, OUTSIDE LH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME,WHITE,041
75653AMOULDING, QUARTER, OUTSIDE REAR RH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041; SUPER LIME,WHITE,041
75654AMOULDING, QUARTER, OUTSIDE REAR LH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041; SUPER LIME,WHITE,041
75671MOULDING, QUARTER BELT, RH
75672MOULDING, QUARTER BELT, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,741 ,8D8 ,8G1
LIGHT GRAY,041 ,23B
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741
SUPER LIME,WHITE,041
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041
75732AMOULDING, FRONT DOOR, OUTSIDE LH
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741 ,27J
LIGHT GRAY,041 ,23B ,26J
DARK GRAY,3E6 ,741 ,8D8 ,8G1
LIGHT GRAY,041 ,23B
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741
SUPER LIME,WHITE,041
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
LIGHT GRAY,041 ,23B
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741
SUPER LIME & SIDE PROTECTIVE,WHITE,041
75742MOULDING, REAR DOOR, OUTSIDE LH
LIGHT GRAY,041 ,23B
DARK GRAY,3E6 ,3H4 ,8D8 ,8G1 ,741
SUPER LIME & SIDE PROTECTIVE MOULDING,WHITE,041
76671CLIP, QUARTER BELT MOULDING, NO.1
9033905016
main90339-05016
23 parts on this diagram · 1 diagram in section

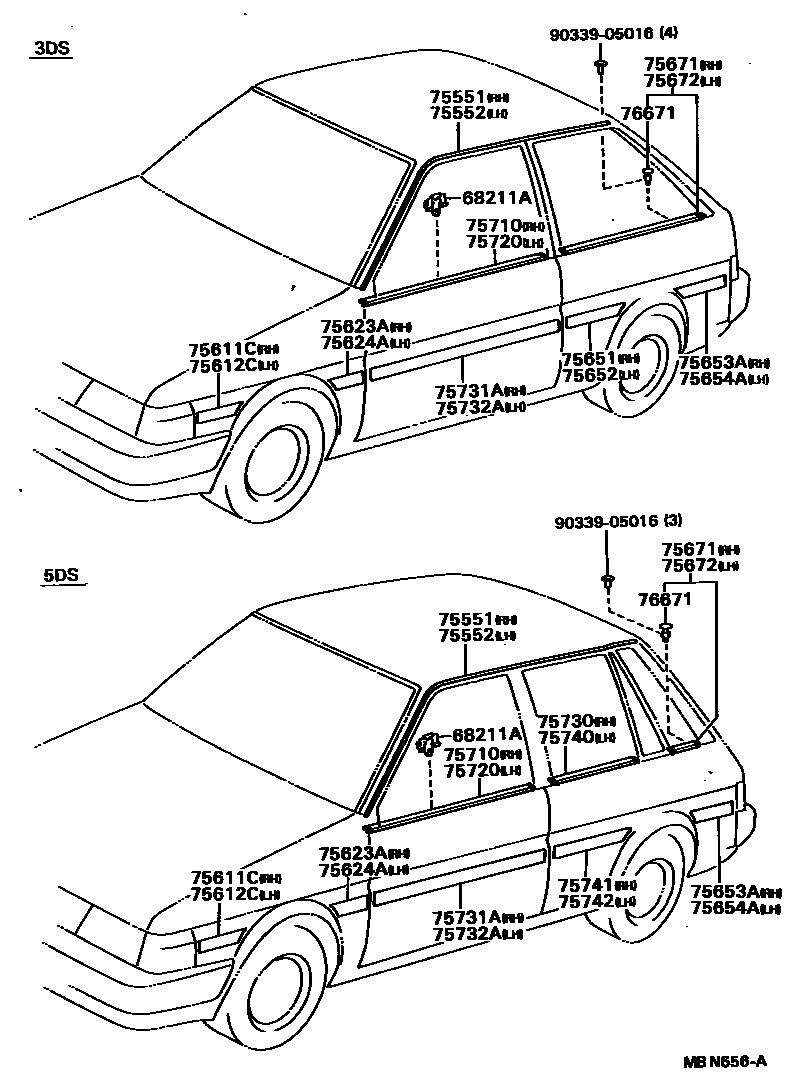

SIDE MOULDING for Toyota COROLLA 2
This section contains 23 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA 2. Key components include: CLIP, DOOR BELT MOULDING, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, FRONT FENDER, OUTSIDE RH, MOULDING, FRONT FENDER, OUTSIDE LH.
