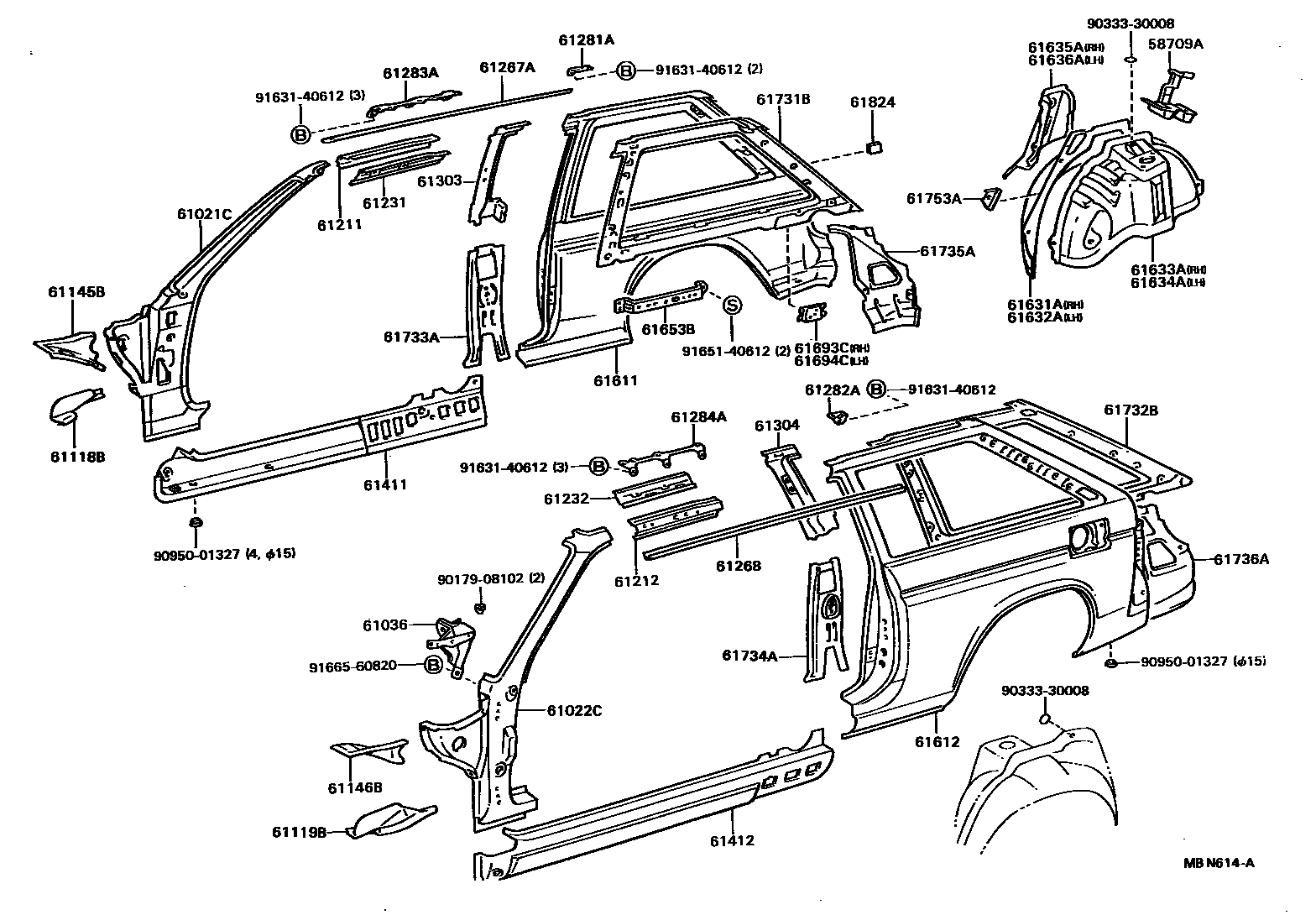

Toyota COROLLA 2 — SIDE MEMBER
58709ACARRIER SUB-ASSY, JACK
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61118BSEAL, FRONT BODY PILLAR TO FRONT FENDER, RH
61119BSEAL, FRONT BODY PILLAR TO FRONT FENDER, LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61635ABRACE, QUARTER WHEEL HOUSE, RH
61636ABRACE, QUARTER WHEEL HOUSE, LH
61653BBRACKET, DECK SIDE TRIM
61693CRETAINER, REAR SEATBACK SET, RH
61694CRETAINER, REAR SEATBACK SET, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61753ARETAINER, QUARTER TRIM, LOWER
61824PLATE, NOISE CONTROL, NO.1
9017908102
main90179-08102
9033330008
main90333-30008
9095001327
main90950-01327
9163140612
main91631-40612
9165140612
main91651-40612
9166560820
main91665-60820
47 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota COROLLA 2
This section contains 55 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA 2. Key components include: CARRIER SUB-ASSY, JACK, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH, BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH, REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH.
