Toyota COROLLA 2 — SIDE MEMBER

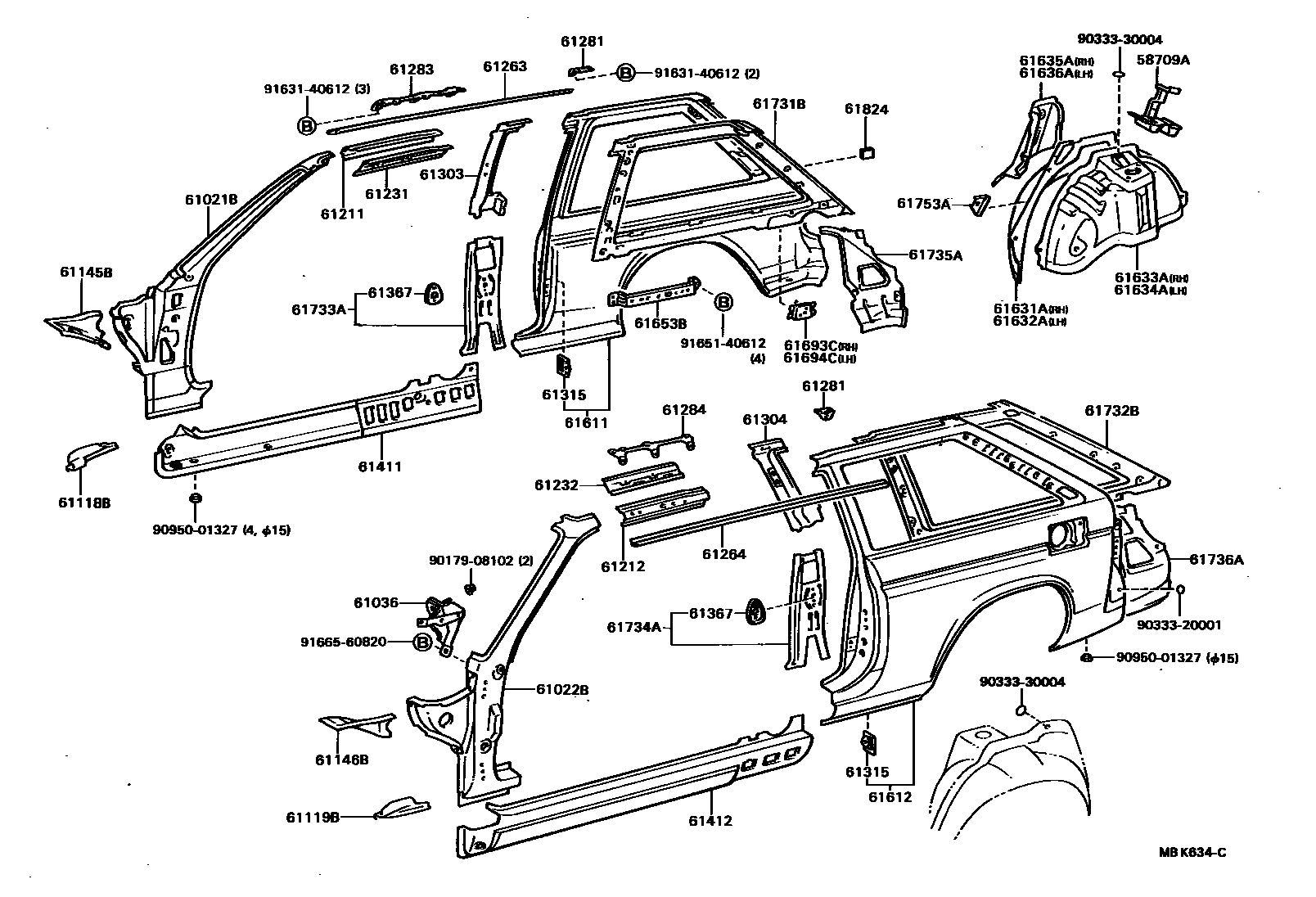

Parts diagram
58709ACARRIER SUB-ASSY, JACK
main58709-16010i198605-198805
61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH
main61021-16130i198605-198805
61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH
main61022-16150i198605-198805
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main61036-16010i198605-198805
61118BSEAL, FRONT BODY PILLAR TO FRONT FENDER, RH
main61118-16010i198708-198805
COLD SPEC
61119BSEAL, FRONT BODY PILLAR TO FRONT FENDER, LH
main61119-16010i198708-198805
COLD SPEC
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-16010i198605-198805
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-16010i198605-198805
61211RAIL, ROOF SIDE, OUTER RH
main61211-16040i198605-198805
main61211-16080i198605-198805
61212RAIL, ROOF SIDE, OUTER LH
main61212-16040i198605-198805
main61212-16080i198605-198805
61231RAIL, ROOF SIDE, INNER RH
main61231-16120i198605-198805
main61231-16140i198605-198805
61232RAIL, ROOF SIDE, INNER LH
main61232-16120i198605-198805
main61232-16140i198605-198805
61263CHANNEL, ROOF DRIP, REAR RH
main61267-16060i198605-198805
main61267-16070i198605-198805
61264CHANNEL, ROOF DRIP, REAR LH
main61268-16060i198605-198805
main61268-16070i198605-198805
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
main61281-16030i198605-198805
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
main61283-16030i198605-198805
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
main61284-16030i198605-198805
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
main61303-16020i198605-198805
61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
main61304-16020i198605-198805
61315RETAINER, DOOR LOCK STRIKER PLATE
main61315-22020×2i198605-198805
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
main61367-14010×2i198605-198805
61411PANEL, ROCKER, OUTER RH
main61401-16120i198605-198805
main61401-16130i198605-198805
W/SIDE MUDGUARD
main61401-16160i198605-198805
61412PANEL, ROCKER, OUTER LH
main61402-16120i198605-198805
main61402-16130i198605-198805
W/SIDE MUDGUARD
main61402-16160i198605-198805
61611PANEL, QUARTER, RH
main61601-16310i198605-198801
main61601-16311i198801-198805
main61601-16350i198605-198801
main61601-16351i198801-198805
main61601-16390i198605-198801
W/SIDE MUDGUARD
main61601-16391i198801-198805
W/SIDE MUDGUARD
main61601-16640i198605-198801
W/BELT MOULDING
main61601-16641i198801-198805
W/BELT MOULDING
main61601-16670i198605-198801
main61601-16671i198801-198805
61612PANEL, QUARTER, LH
main61602-16350i198605-198801
main61602-16351i198801-198805
main61602-16650i198605-198801
W/*FLO
main61602-16651i198801-198805
W/*FLO
main61602-16710i198605-198801
W/*FLO & SIDE MUDGUARD
main61602-16711i198801-198805
W/*FLO & SIDE MUDGUARD
main61602-16730i198605-198801
main61602-16731i198801-198805
main61602-16750i198605-198801
W/*FLO
main61602-16751i198801-198805
W/*FLO
main61602-16830i198605-198801
W/BELT MOULDING
main61602-16831i198801-198805
W/BELT MOULDING
main61602-16840i198605-198801
W/BELT MOULDING & *FLO
main61602-16841i198801-198805
W/BELT MOULDING & *FLO
main61602-16860i198605-198801
main61602-16861i198801-198805
main61602-16870i198605-198801
W/*FLO
main61602-16871i198801-198805
W/*FLO
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-16130i198605-198608
main61631-16140i198608-198805
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-16130i198605-198608
main61632-16140i198608-198805
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-16080i198605-198805
main61607-16120i198605-198805
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-16100i198605-198805
main61608-16150i198605-198805
61635ABRACE, QUARTER WHEEL HOUSE, RH
main61635-16050i198605-198805
61636ABRACE, QUARTER WHEEL HOUSE, LH
main61636-16040i198605-198805
61653BBRACKET, DECK SIDE TRIM
main61653-16010×2i198605-198805
61693CRETAINER, REAR SEATBACK SET, RH
main61693-16020i198605-198805
61694CRETAINER, REAR SEATBACK SET, LH
main61694-16010i198605-198805
61731BPANEL, ROOF SIDE, INNER RH
main61731-16130i198605-198805
main61731-16140i198605-198805
61732BPANEL, ROOF SIDE, INNER LH
main61732-16130i198605-198805
main61732-16140i198605-198805
61733APANEL, ROOF SIDE, INNER FRONT RH
main61733-16040i198605-198805
61734APANEL, ROOF SIDE, INNER FRONT LH
main61734-16040i198605-198805
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-16070i198605-198702
main61735-16080i198702-198805
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-16060i198605-198702
main61736-16080i198702-198805
61753ARETAINER, QUARTER TRIM, LOWER
main61753-16020×2i198605-198805
61824PLATE, NOISE CONTROL, NO.1
main61824-12010×2i198605-198805
9017908102
main90179-08102
9033320001
main90333-20001
9033330004
main90333-30004
9095001327
main90950-01327
9163140612
main91631-40612
9165140612
main91651-40612
9166560820
main91665-60820

49 parts on this diagram · 2 diagrams in section

SIDE MEMBER for Toyota COROLLA 2

This section contains 57 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA 2. Key components include: CARRIER SUB-ASSY, JACK, PILLAR SUB-ASSY, FRONT BODY, UPPER RH, PILLAR SUB-ASSY, FRONT BODY, UPPER LH, BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH, REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH.
