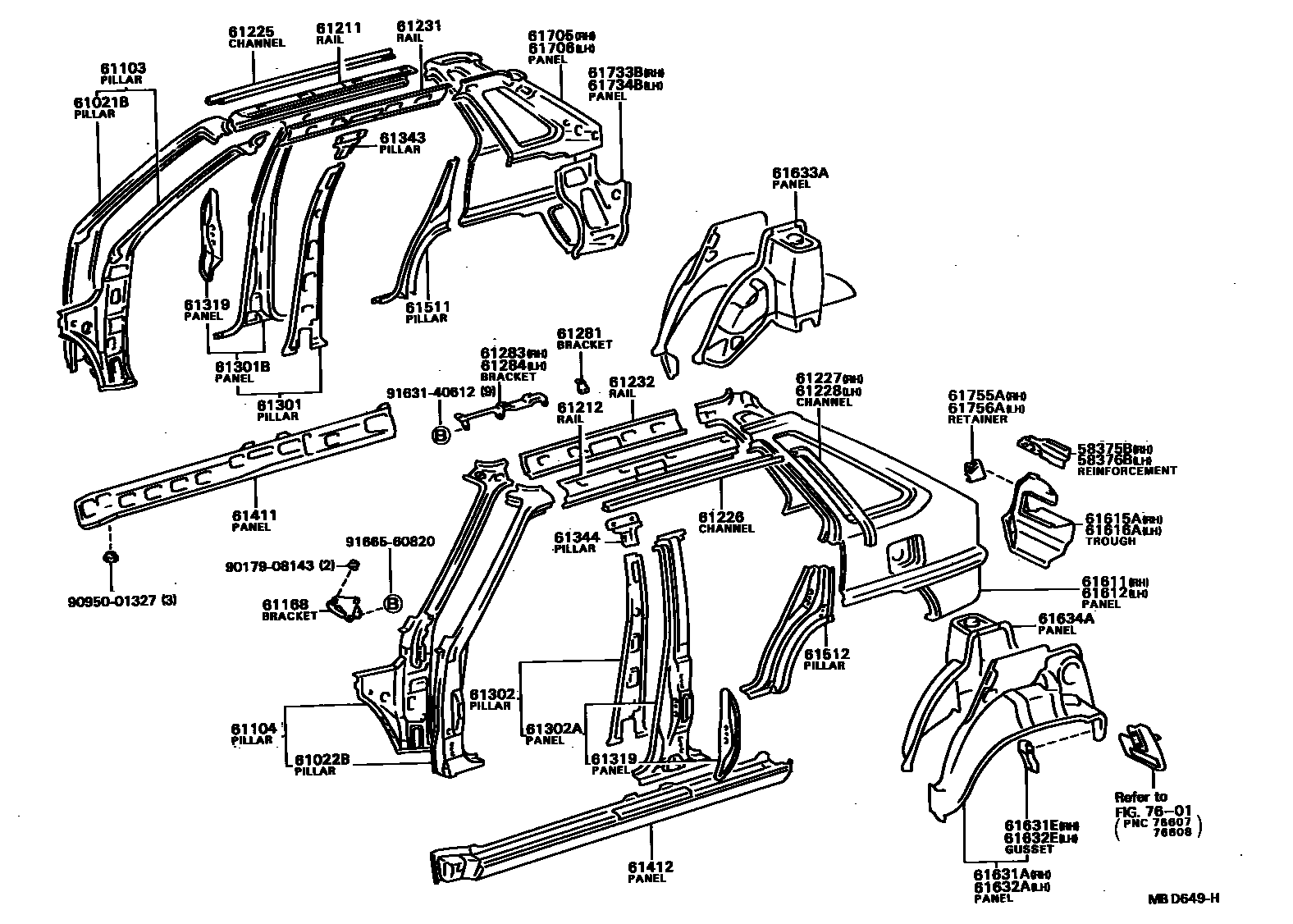

Toyota COROLLA 2 — SIDE MEMBER
58375BREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376BREINFORCEMENT, BODY LOWER BACK PANEL, LH
61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH
61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61225CHANNEL, ROOF DRIP, CENTER RH
61226CHANNEL, ROOF DRIP, CENTER LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61301BPILLAR, CENTER BODY, OUTER RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61302APILLAR, CENTER BODY, OUTER LH
61319PANEL, CENTER BODY PILLAR FINISH
RH
LH
61343PILLAR, CENTER BODY, INNER UPPER RH
61344PILLAR, CENTER BODY, INNER UPPER LH
61411PANEL, ROCKER, OUTER RH
SPORTS PACKAGE
61412PANEL, ROCKER, OUTER LH
SPORTS PACKAGE
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61611PANEL, QUARTER, RH
SPORTS PACKAGE
61612PANEL, QUARTER, LH
W/FUEL LID OPENER
W/FUEL LID OPENER
W/FUEL LID OPENER
W/FUEL LID OPENER
W/FUEL LID OPENER
W/FUEL LID OPENER
SPORTS PACKAGE
61615ATROUGH, BACK DOOR OPENING, RH
61616ATROUGH, BACK DOOR OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61733BPANEL, ROOF SIDE, INNER REAR RH
61734BPANEL, ROOF SIDE, INNER REAR LH
61755ARETAINER, DECK SIDE TRIM, UPPER RH
61756ARETAINER, DECK SIDE TRIM, UPPER LH
7601MUDGUARD & SPOILER
9017908143
main90179-08143
9095001327
main90950-01327
9163140612
main91631-40612
9166560820
main91665-60820
50 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota COROLLA 2
This section contains 56 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA 2. Key components include: REINFORCEMENT, BODY LOWER BACK PANEL, RH, REINFORCEMENT, BODY LOWER BACK PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, UPPER RH, PILLAR SUB-ASSY, FRONT BODY, UPPER LH, PILLAR SUB-ASSY, FRONT BODY, RH.
