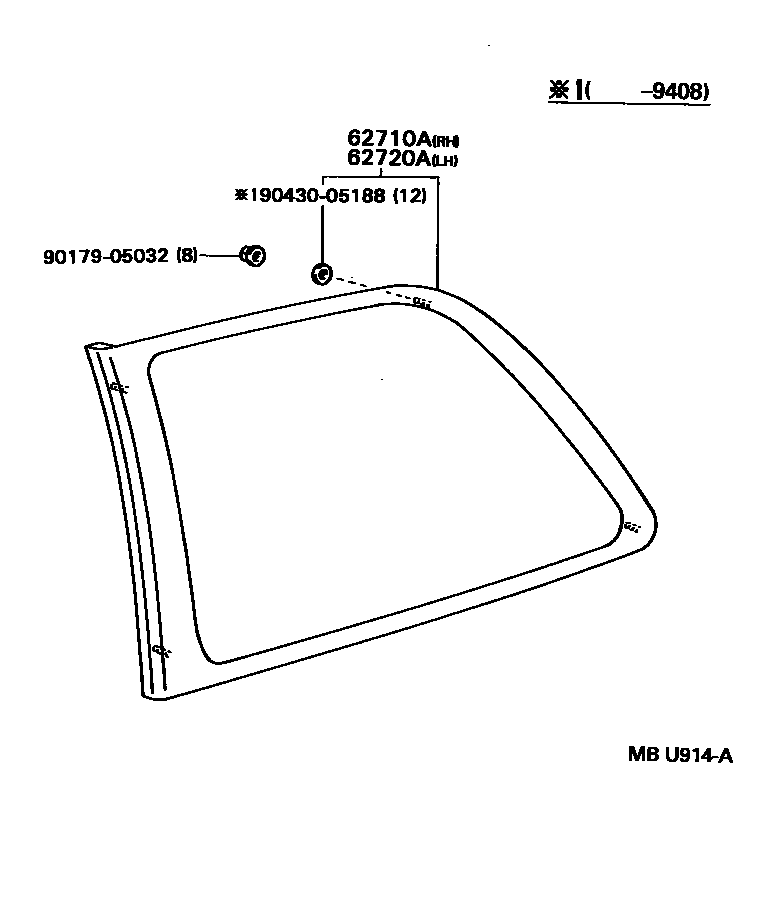

Toyota COROLLA 2 — QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-16230i199009-199409

main62710-16250i199009-199408

main62710-16270i199009-199408

62720AWINDOW ASSY, QUARTER, LH

main62720-16230i199009-199409

main62720-16250i199009-199408

main62720-16270i199208-199408

9017905032

main90179-05032

9043005188

main90430-05188

4 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota COROLLA 2

This section contains 4 genuine Toyota parts for the QUARTER WINDOW system of the Toyota COROLLA 2. Key components include: WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
