Toyota COROLLA 2 — PARTIAL ENGINE ASSEMBLY

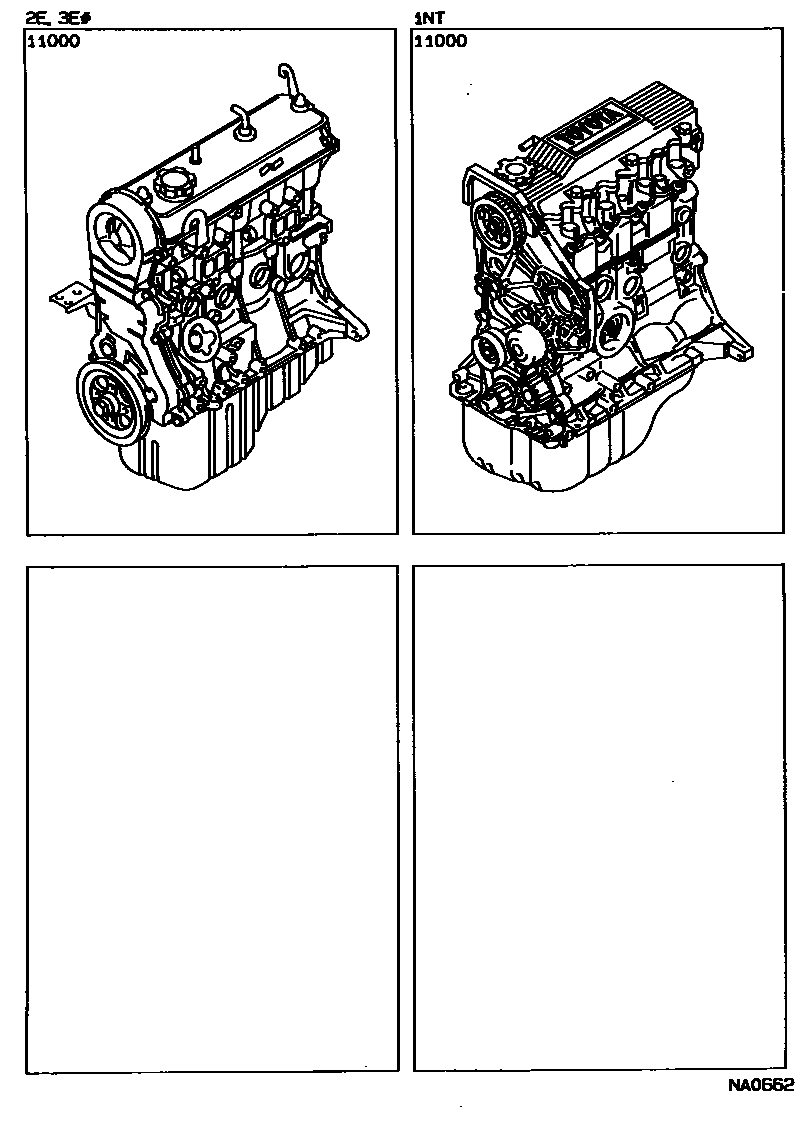

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-11061i198805-199009
main19000-11071i198805-199009
main19000-11200i198805-199009
sub19000-11201
sub17771-11120
sub78184-16050
main19000-11210i198805-199009
main19000-11310i198805-199009
main19000-55040i198805-198907
main19000-55041i198907-199003
main19000-55042i199003-199004
main19000-55043i199004-199008
main19000-55044i199008-199009
main19000-55050i198805-198907
main19000-55051i198907-199003
main19000-55052i199003-199004
main19000-55053i199004-199008
main19000-55054i199008-199009

1 parts on this diagram · 1 diagram in section
