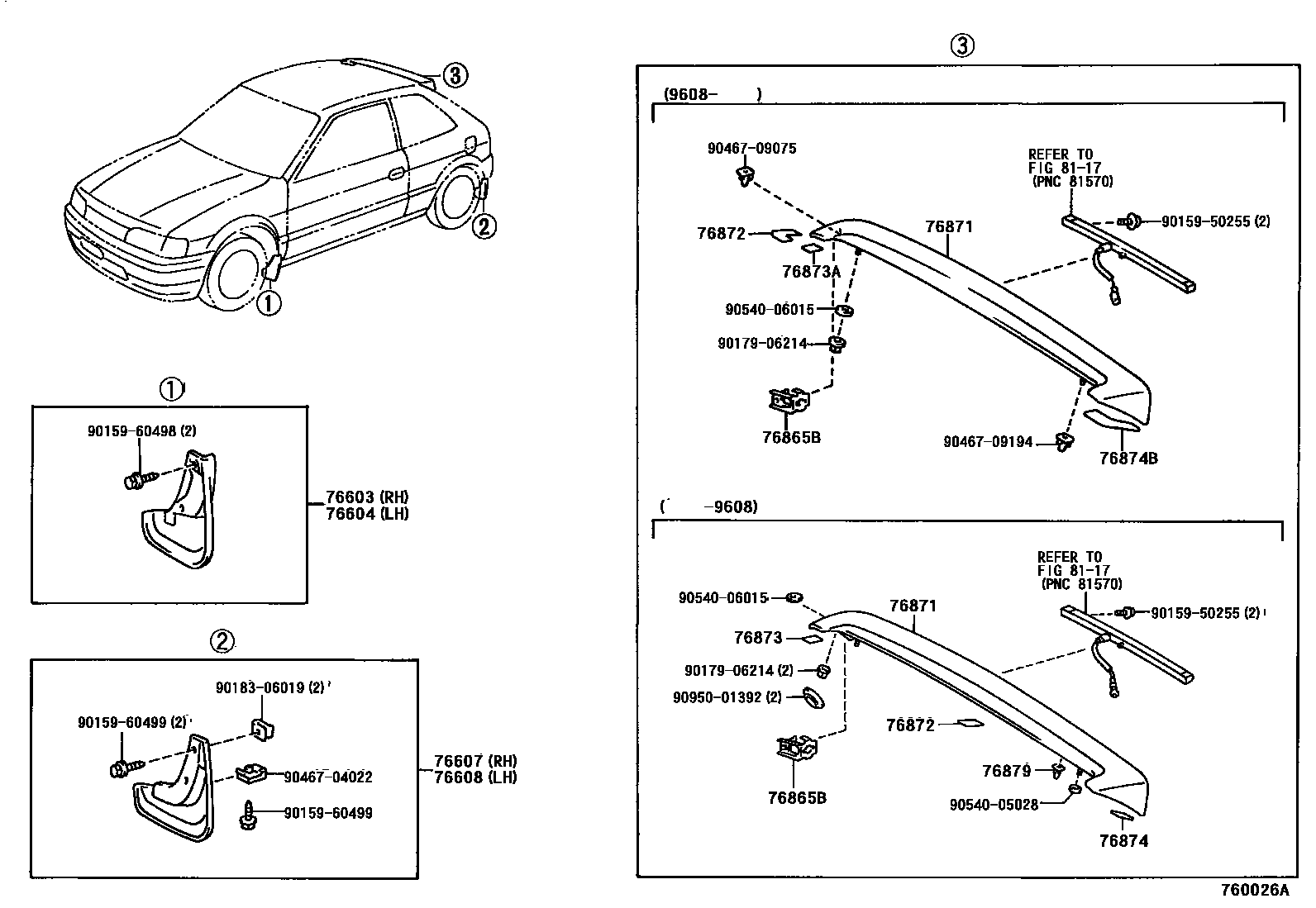

Toyota COROLLA 2 — MUDGUARD & SPOILER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76865BRETAINER, REAR SPOILER
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76873APROTECTOR, REAR SPOILER, RH
76874PROTECTOR, REAR SPOILER, NO.3
76874BPROTECTOR, REAR SPOILER, LH
76879CLIP, REAR SPOILER, NO.1
8117CENTER STOP LAMP
9015950255
main90159-50255
9015960498
main90159-60498
9015960499
main90159-60499
9017906214
main90179-06214
9018306019
main90183-06019
9046704022
main90467-04022
9046709075
main90467-09075
9046709194
main90467-09194
9054005028
main90540-05028
9054006015
main90540-06015
9095001392
main90950-01392
24 parts on this diagram · 1 diagram in section
MUDGUARD & SPOILER for Toyota COROLLA 2
This section contains 24 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota COROLLA 2. Key components include: MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH, RETAINER, REAR SPOILER.
