Toyota COROLLA 2 — MOUNTING

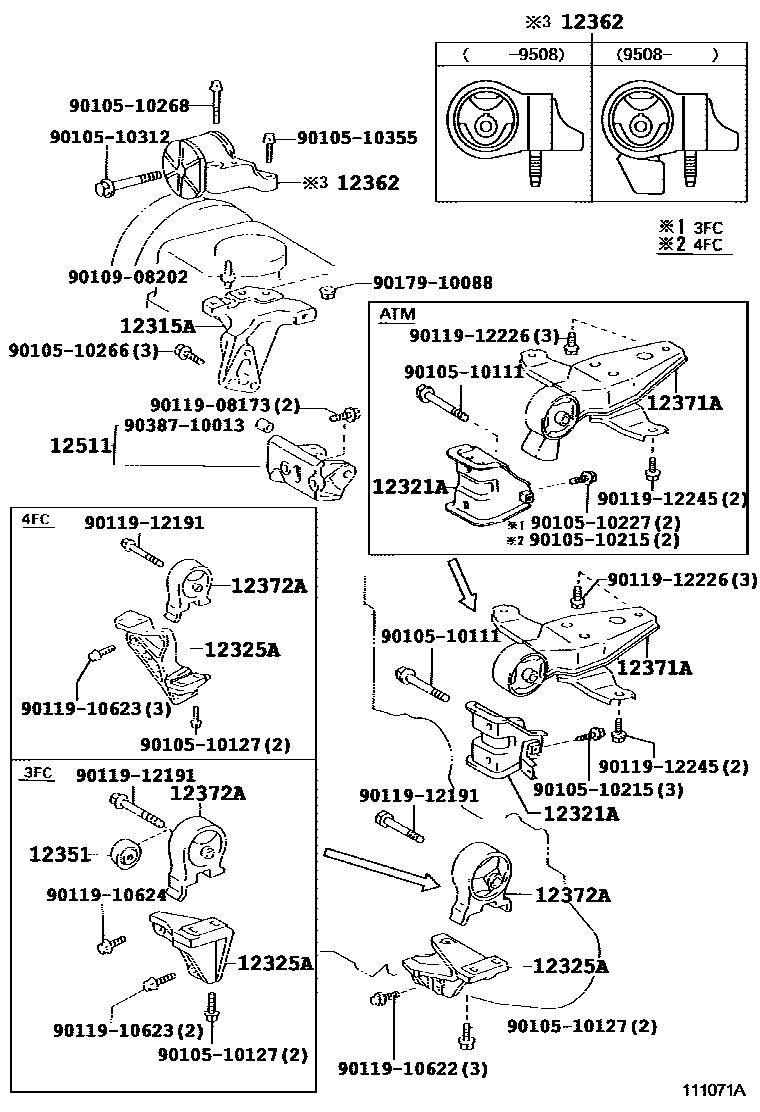

Parts diagram

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i199409

main12315-55031i199409

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-11050i199409-199604

main12303-11051i199604-199708

main12303-11052i199708

main12303-11090i199605

main12303-55040i199409-199607

main12303-55041i199607-199709

main12303-55042i199709

main12321-11100i199409-199605

main12321-11101i199605

main12321-11150i199409

main12321-11160i199409

main12321-11260i199409-199605

main12321-55051i199409

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11020i199409

main12325-11030i199409

main12325-11070i199409

main12325-11090i199409

main12325-11100i199409

main12325-55010i199409

12351DAMPER, ENGINE MOUNTING

main12351-11030i199409

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11140i199409-199508

main12362-11150i199409

main12362-11160i199409-199508

main12362-11300i199712

main12362-55040i199409

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11390i199409

main12371-11400i199409

main12371-11490i199409-199511

main12371-11491i199511

main12371-11500i199409-199511

main12371-11510i199409-199511

main12371-55070i199409

main12371-55080i199409

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11170i199409

main12372-11180i199409

main12372-11190i199409

main12372-11210i199409

main12372-11290i199409

main12372-55070i199409

main12372-55080i199409

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i199409

main12511-55010i199409

9010510111

main90105-10111

9010510127

main90105-10127

9010510215

main90105-10215

9010510227

main90105-10227

9010510266

main90105-10266

9010510268

main90105-10268

9010510312

main90105-10312

9010510355

main90105-10355

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011910624

main90119-10624

9011912191

main90119-12191

9011912226

main90119-12226

9011912245

main90119-12245

9017910088

main90179-10088

9038710013

main90387-10013

26 parts on this diagram · 4 diagrams in section

MOUNTING for Toyota COROLLA 2

This section contains 38 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA 2. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
