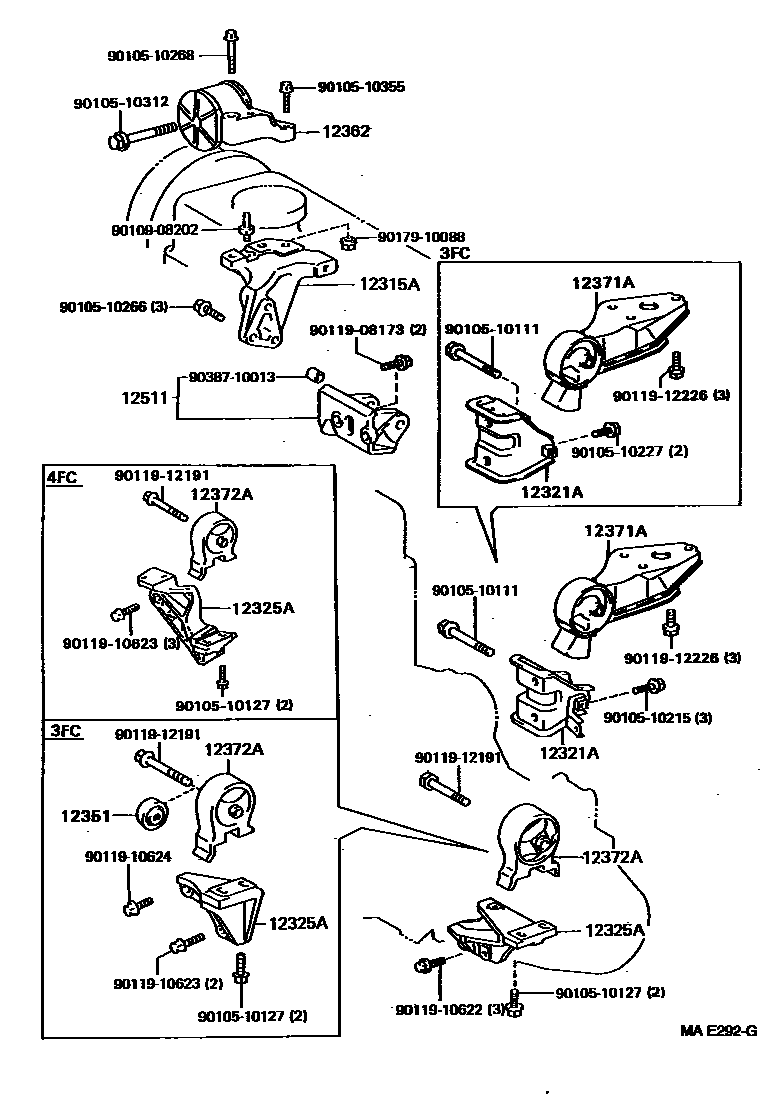

Toyota COROLLA 2 — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i4EFE,5EF#..EL4#199009-199409

main12315-55031i1NT..NL40199201-199409

main12315-55040i1NT..NL40199009-199201

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-11050i4EFE,5EF#..EL41,43..MTM199009-199409

sub12303-11051

main12303-55040i1NT..NL40..5F199009-199409

sub12303-55041

main12321-11100i5EF#..EL43..4FC199101-199409

sub12321-11101

main12321-11150i5EFE..EL45..5F199009-199409

main12321-11160i5EFE..EL45..4FC199009-199409

main12321-11210i4EFE,5EF#..EL41,43..ATM199009-199101

main12321-55050i1NT..NL40..4FC199009-199104

main12321-55051i1NT..NL40..4FC199104-199409

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11020i4EFE..EL41..3FC199009-199409

main12325-11030i5EF#..EL43..4FC199009-199409

main12325-11070i4EFE,5EF#..EL41,43..MTM199009-199409

main12325-11090i5EFE..EL45..5F199009-199409

main12325-11100i5EFE..EL45..4FC199009-199409

main12325-55010i1NT..NL40..5F199009-199409

12351DAMPER, ENGINE MOUNTING

main12351-11030i4EFE..EL41..3FC199009-199409

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11140i5EF#..EL43;5EFE..EL45..4FC199009-199409

sub12362-11300

main12362-11150i5EFE..EL45..5F199009-199409

main12362-11160i4EFE..EL41199009-199409

main12362-55040i1NT..NL40199009-199409

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11290i4EFE,5EFE..EL41,43..MTM199009-199409

sub12371-11291

main12371-11300i4EFE,5EFE..EL41,43..ATM199009-199409

sub12371-11301

main12371-11310i5EFHE..EL43..5F199009-199409

sub12371-11311

main12371-11360i5EFHE..EL43..4FC199009-199409

main12371-11390i5EFE..EL45..5F199009-199409

main12371-11400i5EFE..EL45..4FC199009-199409

main12371-55060i1NT..NL40..5F199009-199409

main12371-55070i1NT..NL40..4FC199009-199409

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11170i4EFE,5EF#..EL4#..MTM199009-199409

main12372-11180i5EF#..EL43..4FC199009-199409

main12372-11190i4EFE..EL41..3FC199009-199409

main12372-11210i5EFE..EL45..4FC199009-199409

main12372-55070i1NT..NL40..5F199009-199409

main12372-55080i1NT..NL40..4FC199009-199409

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i4EFE,5EF#..EL4#199009-199409

main12511-55010i1NT..NL40199009-199409

9010510111

main90105-10111

9010510127

main90105-10127

9010510215

main90105-10215

9010510227

main90105-10227

9010510266

main90105-10266

9010510268

main90105-10268

9010510312

main90105-10312

9010510355

main90105-10355

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011910624

main90119-10624

9011912191

main90119-12191

9011912226

main90119-12226

9017910088

main90179-10088

9038710013

main90387-10013

25 parts on this diagram · 5 diagrams in section
