Toyota COROLLA 2 — MIRROR

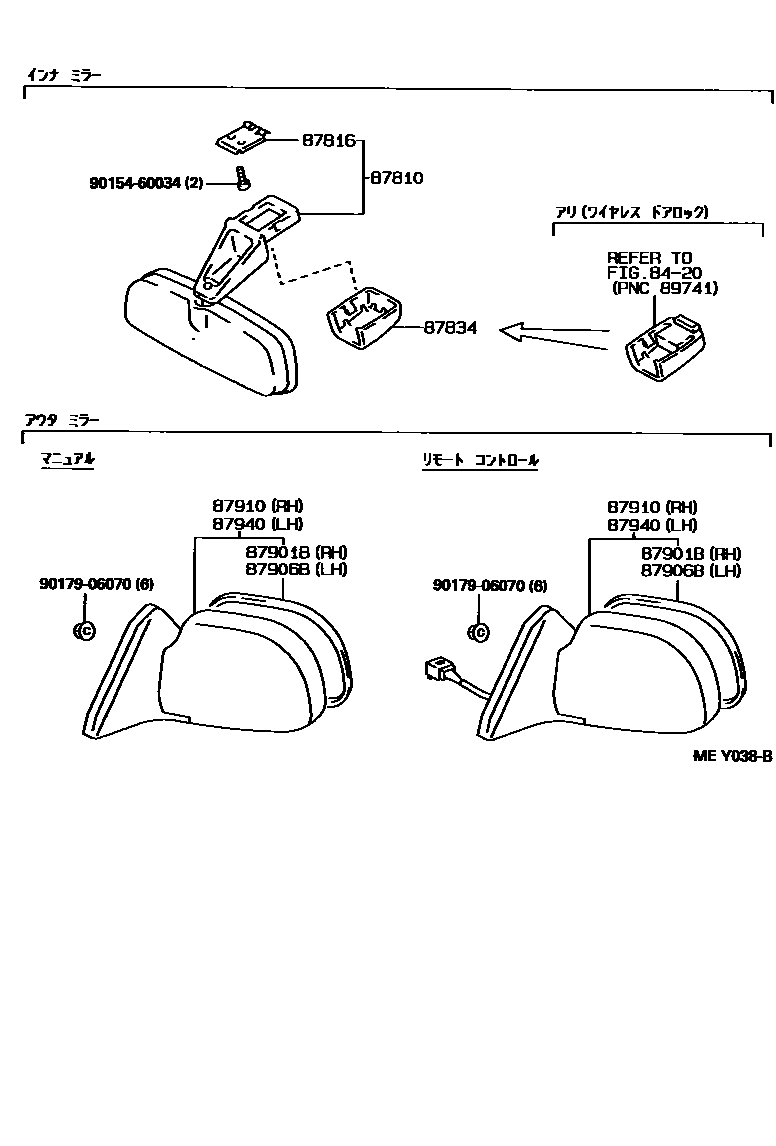

Parts diagram

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-B0i199409-199907

LT.BLUISH GRAY,TRIM1#

main87810-12230-E0i199712-199907

MD.OAK,TRIM4#

main87810-12240-B2i199409-199907

main87810-12240-B2i199608-199712

main87810-12240-B2i199504-199608

main87810-12240-E3i199712-199907

87816SPRING, INNER REAR VIEW MIRROR

main74372-01020i199409-199712

main74372-30030i199409-199712

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-16010-B0i199409-199508

LT.BLUISH GRAY,TRIM1#

main87834-16010-E0i199712

MD.OAK,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-16750i199409-199712

main87931-1E720i199712

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-16750i199409-199712

main87961-1H050i199712

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16750i199409-199712

main87910-16760-A0i199504-199608

main87910-16760-A0i199409-199608

SUPER WHITE 2,040

main87910-16760-A0i199608-199712

main87910-16760-B0i199608-199712

main87910-16760-B0i199409-199608

BLUISH SILVER ME.,1A0

main87910-16760-C0i199409-199608

BLACK ME,205

main87910-16760-C0i199608-199712

main87910-16760-D0i199409-199608

SUPER RED 2,3E5

main87910-16760-D0i199608-199712

main87910-16760-D1i199409-199508

MAGENTA MC.,3L3

main87910-16760-D1i199504-199608

main87910-16760-G0i199409-199608

DK.GREEN M.M.,6N7

main87910-16760-G0i199504-199608

main87910-16760-G2i199608-199712

main87910-16760-J0i199504-199608

main87910-16760-J0i199409-199608

DK.BLUE M.M.,8K0

main87910-16760-J1i199608-199712

main87910-16760-J1i199504-199608

main87910-16760-J2i199608-199712

main87910-16770-A0i199409-199712

SUPER WHITE 2,040

main87910-16770-B0i199409-199712

BLUISH SILVER ME.,1A0

main87910-16770-C0i199409-199712

BLACK ME,205

main87910-16770-D0i199409-199712

SUPER RED 2,3E5

main87910-16770-D1i199409-199508

MAGENTA MC.,3L3

main87910-16770-G0i199409-199608

DK.GREEN M.M.,6N7

main87910-16770-G2i199608-199712

GREEN M.M.,6P6

main87910-16770-J0i199409-199608

DK.BLUE M.M.,8K0

main87910-16770-J1i199608-199712

LT.PURPLISH BLUE MM,8K1

main87910-16770-J2i199608-199712

DK.BLUE M.M.,8L3

main87910-1G050i199712-199907

main87910-1G060-A0i199712-199907

SUPER WHITE 2,040

main87910-1G060-B0i199712-199907

BLUISH SILVER ME.,1A0

main87910-1G060-C0i199712-199907

BLACK ME,205

main87910-1G060-D0i199712-199907

SUPER RED II,3E5

main87910-1G060-F0i199712-199907

PL.YELLOW OP,574

main87910-1G060-G1i199712-199907

GREEN M.M.,6P6

main87910-1G060-J0i199712-199907

DK.BLUE M.M.,8L3

main87910-1G070-A0i199712-199907

SUPER WHITE 2,040

main87910-1G070-B0i199712-199907

BLUISH SILVER ME.,1A0

main87910-1G070-C0i199712-199907

BLACK ME,205

main87910-1G070-D0i199712-199907

SUPER RED II,3E5

main87910-1G070-F0i199712-199907

PL.YELLOW OP,574

main87910-1G070-G1i199712-199907

GREEN M.M.,6P6

main87910-1G070-J0i199712-199907

DK.BLUE M.M.,8L3

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16750i199409-199712

main87940-16760-A0i199608-199712

main87940-16760-A0i199409-199608

SUPER WHITE 2,040

main87940-16760-A0i199504-199608

main87940-16760-B0i199608-199712

main87940-16760-B0i199409-199608

BLUISH SILVER ME.,1A0

main87940-16760-C0i199409-199608

BLACK ME,205

main87940-16760-C0i199608-199712

main87940-16760-D0i199608-199712

main87940-16760-D0i199409-199608

SUPER RED 2,3E5

main87940-16760-D1i199409-199508

MAGENTA MC.,3L3

main87940-16760-D1i199504-199608

main87940-16760-G0i199409-199608

DK.GREEN M.M.,6N7

main87940-16760-G0i199504-199608

main87940-16760-G2i199608-199712

main87940-16760-J0i199504-199608

main87940-16760-J0i199409-199608

DK.BLUE M.M.,8K0

main87940-16760-J1i199504-199608

main87940-16760-J1i199608-199712

main87940-16760-J2i199608-199712

main87940-16770-A0i199409-199712

SUPER WHITE 2,040

main87940-16770-B0i199409-199712

BLUISH SILVER ME.,1A0

main87940-16770-C0i199409-199712

BLACK ME,205

main87940-16770-D0i199409-199712

SUPER RED 2,3E5

main87940-16770-D1i199409-199508

MAGENTA MC.,3L3

main87940-16770-G0i199409-199608

DK.GREEN M.M.,6N7

main87940-16770-G2i199608-199712

GREEN M.M.,6P6

main87940-16770-J0i199409-199608

DK.BLUE M.M.,8K0

main87940-16770-J1i199608-199712

LT.PURPLISH BLUE MM,8K1

main87940-16770-J2i199608-199712

DK.BLUE M.M.,8L3

main87940-1G100i199712-199907

main87940-1G110-A0i199712-199907

SUPER WHITE 2,040

main87940-1G110-B0i199712-199907

BLUISH SILVER ME.,1A0

main87940-1G110-C0i199712-199907

BLACK ME,205

main87940-1G110-D0i199712-199907

SUPER RED II,3E5

main87940-1G110-F0i199712-199907

PL.YELLOW OP,574

main87940-1G110-G1i199712-199907

GREEN M.M.,6P6

main87940-1G110-J0i199712-199907

DK.BLUE M.M.,8L3

main87940-1G120-A0i199712-199907

SUPER WHITE 2,040

main87940-1G120-B0i199712-199907

BLUISH SILVER ME.,1A0

main87940-1G120-C0i199712-199907

BLACK ME,205

main87940-1G120-D0i199712-199907

SUPER RED II,3E5

main87940-1G120-F0i199712-199907

PL.YELLOW OP,574

main87940-1G120-G1i199712-199907

GREEN M.M.,6P6

main87940-1G120-J0i199712-199907

DK.BLUE M.M.,8L3

9015460034

main90154-60034

9017906070

main90179-06070

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA 2

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota COROLLA 2. Key components include: WIRELESS DOOR LOCK, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
